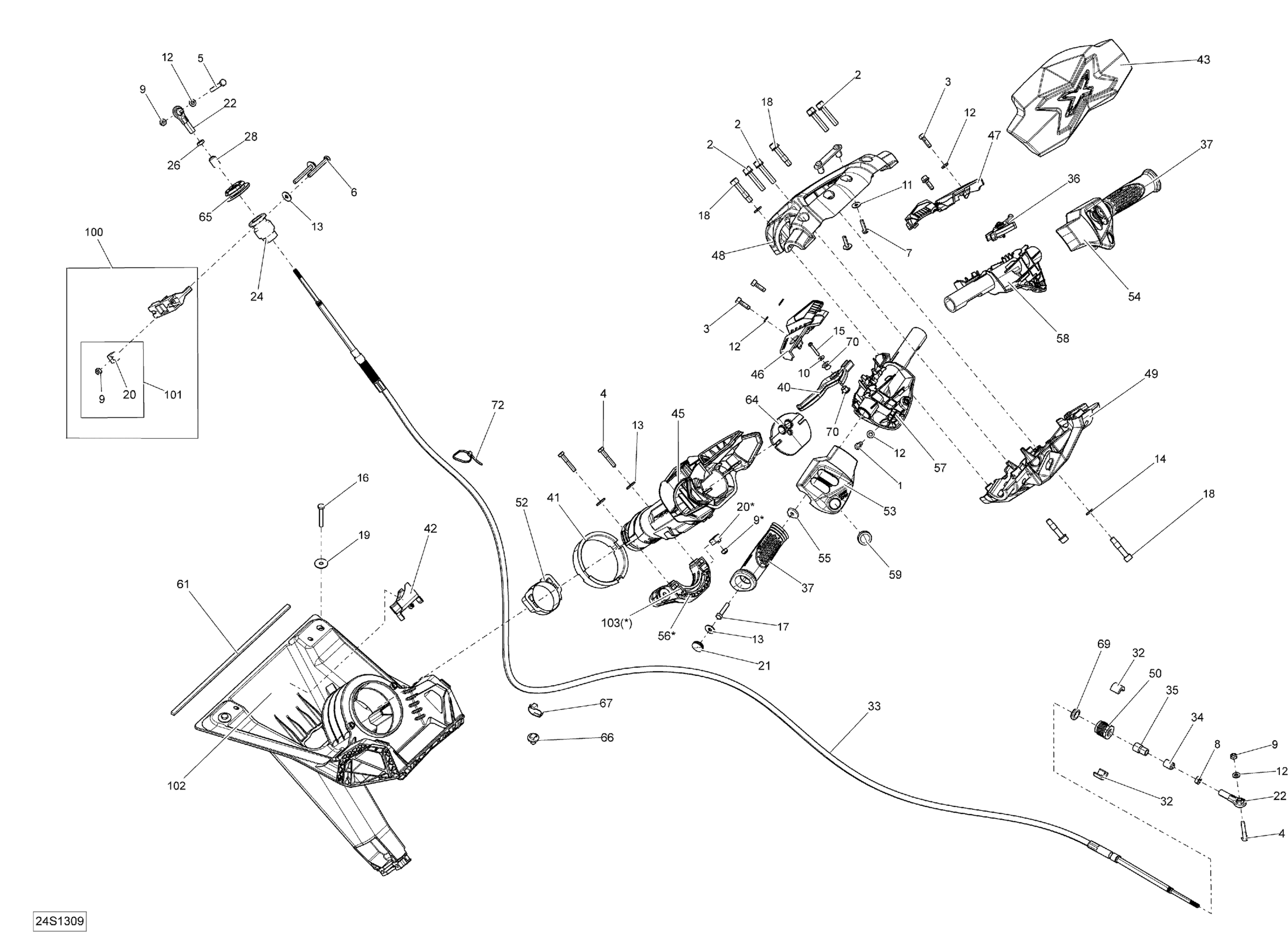

Sea-doo RXP-X 260 & RS, 2013 Steering Diagram
#
1
Socket Screw M6 X 16
205061660
Unavailable
2
SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership
205084060
Unavailable
3
Socket Head Screw M6 X 20, Scotch Grip
205562060
Unavailable
4
Hex. Screw M6 X 35
207163560
Unavailable
5
Hex. Screw M6 X 40
207064060
Unavailable
6
Hex. Screw M6 X 50
207165060
Unavailable
7
Hex. Screw 10-14 X 7/8”
211000023
Unavailable
8
Hex. Nut 1/4"-28
211100056
Unavailable
9
Elastic Stop Nut M6, Brass
232561200
Unavailable
10
Flat Washer 4 mm, Stainless
234042600
Unavailable
11
Flat Washer 5 mm, Stainless
234052600
Unavailable
13
Flat Washer M6, Stainless
234062600
Unavailable
15
Hex. Flange Screw K40 X 25
241142560
Unavailable
16
Hex Cap Screw M6X1.0X45 S.Grip
245064560
Unavailable
17
Hex. Screw M6 X 30, Scotch Grip
250000002
Unavailable
18
Torx-Button M/S M8 X 40 Stlss S.Gri
250000845
Unavailable
19
Flat Washer M6.6 X 22
250200022
Unavailable
20
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
Unavailable
21
Black, Cap
277000203
Unavailable
22
Ball Joint
277000775
Unavailable
24
Ajustment Knob
277000782
Unavailable
32
Half Ring
277001527
Unavailable
33
Steering Cable Ass'y | Includes 540 TO 540d
277001578
Unavailable
34
Wiper Rod
277001582
Unavailable
35
End Piece
277001583
Unavailable
36
Throttle Handle
277001944
Unavailable
37
Handlebar Grip
277002286
Unavailable
40
Reverse Handle
277001945
Unavailable
41
Wear Ring
277001653
Unavailable
42
Spacer
277001654
Unavailable
43
Handle Pad
277001683
Unavailable
45
Steering Colomn
277001807
Unavailable
46
LH UPPER HOUSING - Call your local BRP dealership
277001686
Unavailable
47
Upper Housing RH
277001688
Unavailable
48
FRONT EXTENSION BLOC - Call your local BRP dealership
277001909
Unavailable
49
REAR EXTENSION BLOC - Call your local BRP dealership
277001910
Unavailable
50
Steering Cable Lock This part replaces 277000784.
277001729
Unavailable
52
Wear Ring
277002318
Unavailable
53
LH HOUSING COVER - Call your local BRP dealership
277001794
Unavailable
54
RH Housing Cover
277001718
Unavailable
55
Insert Grip Handle
277001863
Unavailable
58
RH LOWER HOUSING - Call your local BRP dealership This part replaces 277001966.
277001951
Unavailable
59
Red, Knob Switch
277001887
Unavailable
61
Seal 1000Mm Long
219704373
Unavailable
64
Grommet
293720086
Unavailable
65
Cable Grommet
293720090
Unavailable
69
Rubber Washer
293830063
Unavailable
70
Bushing
293900091
Unavailable
100
Thrust Support Ass'y
277001655
Unavailable
101
Housing Nut M6 | Included 550f to 550f2
269502408
Unavailable
102
Steering Support Ass'y | Includes 710 TO 710b
277001913
Unavailable
103
Steering Arm Support Ass'y | Includes 460 TO 460c
277001872
Unavailable
