Cooling System

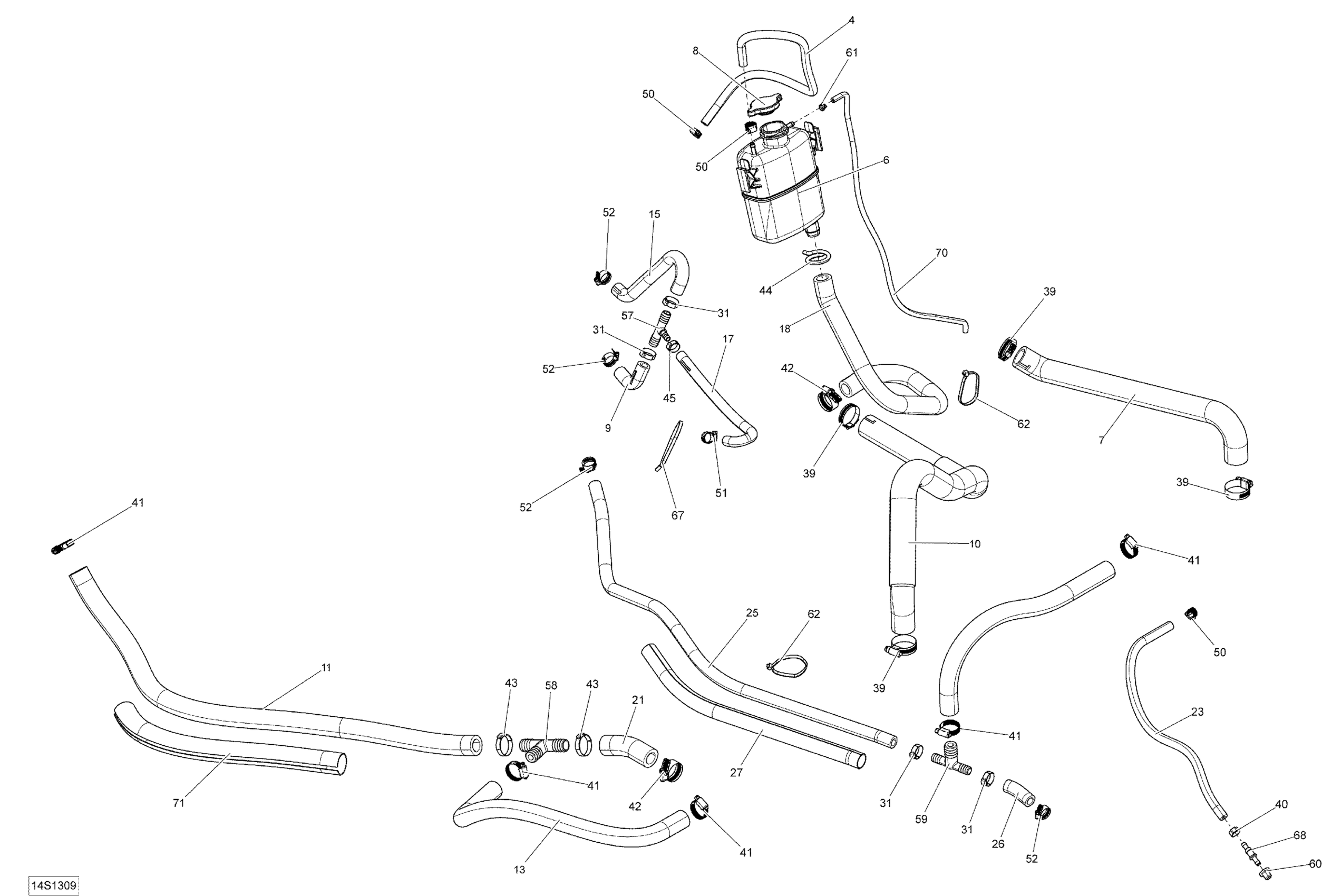

Sea-doo RXP-X 260 & RS, 2013 Cooling System Diagram
#
Description
Price
4
HOSE 1/4 - Call your local BRP dealership
204300184
Unavailable
6
Coolant Tank
276000086
Unavailable
7
RH Radiator Hose
276000248
Unavailable
8
Pressure Cap | Includes 720 to 720a
276000100
Unavailable
9
Hose, Bypass Lower | With Catalyst This part replaces 276000137.
276000455
Unavailable
11
Hose 19.0Mm. 2000Mm Long
219704361
Unavailable
13
Hose 19.0Mm. 2000Mm Long
219704361
Unavailable
15
Hose, Bypass Upper | Without Catalyst This part replaces 276000244.
276000484
Unavailable
17
Formed Hose | Without Catalyst
276000246
Unavailable
21
Hose 19.0Mm. 2000Mm Long
219704361
Unavailable
23
Was 415129508 Bleeder Hose
219704416
Unavailable
25
Was 276000001 Hose 12.5 mm
219704394
Unavailable
26
Was 276000001 Hose 12.5 mm
219704394
Unavailable
27
Tubing 25 MM 1000MM Long
219704402
Unavailable
31
Oetiker Clamp
293650012
Unavailable
39
Tridon Gear Clamp
293650185
Unavailable
41
Tridon Gear Clamp
293650051
Unavailable
42
Tridon Gear Clamp
293650019
Unavailable
44
Spring Clamp
293650115
Unavailable
45
Oetiker Clamp | Europe
293650030
Unavailable
51
Tridon Gear Clamp
293650171
Unavailable
57
T-Fitting
293710116
Unavailable
58
T-Fitting
293710131
Unavailable
59
T-Fitting
293710132
Unavailable
60
Grommet
293720029
Unavailable
70
Polyurethane Hose 10000Mm Long
219704410
Unavailable
71
Tubing 25 MM 1000MM Long
219704402
Unavailable
