Description

Price

1

Harness Ass'y | Includes 1 to 2025

278002269

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

33

Wire Seal

278000999

$2.55

99

Open Barrel

278000992

$1.79

101

Open Barrel Terminal

278001392

$4.12

110

Male Terminal

278000631

$4.12

112

Female Terminal

278000632

$1.69

113

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

116

Female Housing, 4 Circuits

278000635

$14.02

117

Male Terminal Housing, 6 Circuits

710001539

$15.57

120

Female Connector, 2 Circuits

409207300

$9.60

121

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

Unavailable

122

Male Connector, 4 Circuits | CE

278000739

$14.92

123

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.97

128

Female Wedge, 4 Circuits

278000636

$4.12

129

Female Lock, 6 Circuits

278000735

$3.02

132

Male Lock, 2 Circuits

409207500

$3.02

133

Female Lock

409207200

$3.48

134

Male Lock, 4 Circuits | CE

278000738

$2.91

135

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

$2.48

138

Sealing Cap

293000052

$2.55

196

Tie Wrap 142 mm

293750002

$0.88

202

Female Terminal

278001114

$2.55

203

Male Connector, 2 Circuits

278001113

$12.65

227

Male Terminal

409004300

$5.46

229

Female Terminal

278000223

$2.55

231

Female Housing, 2 Circuits

278000217

$7.59

238

Male Housing, 3 Circuits

278000273

$7.59

241

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

242

Wire Seal

278000218

$3.48

243

Wire Seal

710000048

$5.10

244

Wire Seal

278000216

$2.55

260

Was 515175319 Tubing 22 mm

219704423

$11.84

295

Insulated Sheath

278001008

$3.20

296

Insulated Sheath

278000770

$7.60

387

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

388

FEMALE TERMINAL - Call your local BRP dealership

278001750

Unavailable

391

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

420

Tie-Rap 180 mm

414115200

$0.09

437

SEAL - Call your local BRP dealership

515175886

Unavailable

438

Latch

515175883

$7.48

439

LOCK - Call your local BRP dealership

515175884

Unavailable

440

COVER - Call your local BRP dealership

515175885

$5.31

506

Female Terminal

710000421

$5.46

525

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

541

Tubing 6 Mm 3000Mm Long

219704425

$13.14

542

Was 409901700 Tubing (9 mm)

219704399

$79.97

543

Tubing 12 mm

409902000

Unavailable

545

Tubing 16 Mm 1000Mm Long

219704408

$6.23

667

Little Fuse, 7.5 Amperes

710000743

$8.02

668

Little Fuse, 10 Amperes

710000744

$7.24

669

Little Fuse, 15 Ampere

710000745

$6.77

671

Little Fuse, 30 Amperes

710000747

$6.77

675

Fuse Box Base Ass´y

415129856

$41.57

684

Fuse Puller

710000781

$8.29

690

Female Terminal

710000890

$3.73

696

Connector, 3 Circuits

278002064

$25.35

702

Female Terminal

710000836

$5.46

703

Female Terminal

710000837

$4.32

706

Cap

710000840

$5.49

732

Female Terminal

710000877

$6.32

734

Female Housing, 3 Circuits

710000879

$21.42

735

Housing, 3 Circuits

710000880

$17.52

736

Seal

710000881

$14.27

737

Cap

710000882

$9.19

751

Female Terminal

710000918

$5.10

767

Bus Bar

278002165

$7.24

768

Bus Bar

278002165

$7.24

769

Bus Bar

278002165

$7.24

770

Little Fuse, 3 AMP

710001008

$2.98

771

Relay, 30 AMP | Obsolete. ATV order 515176774

278002168

Unavailable

773

Fuse Cover

710001026

$17.52

775

Mount Dart

293730040

$0.86

778

Bus Bar

278002165

$7.24

798

Male Housing, 4 Circuits

278002185

$5.86

799

Wire Seal

278002186

$4.51

800

Female Terminal

278002187

$5.04

801

RESISTANCE 500 OHMS - Call your local BRP dealership

278002188

Unavailable

949

Fuse Box Ass'y

278002285

$23.37

950

Fuse Box Cover

278002286

$22.72

953

DIODE CAP - Call your local BRP dealership

278002306

Unavailable

2021

Battery Cable

278002163

$51.32

2023

FUSE DECAL - Call your local BRP dealership

278002171

Unavailable

2025

FUSE DECAL - Call your local BRP dealership

278002192

Unavailable

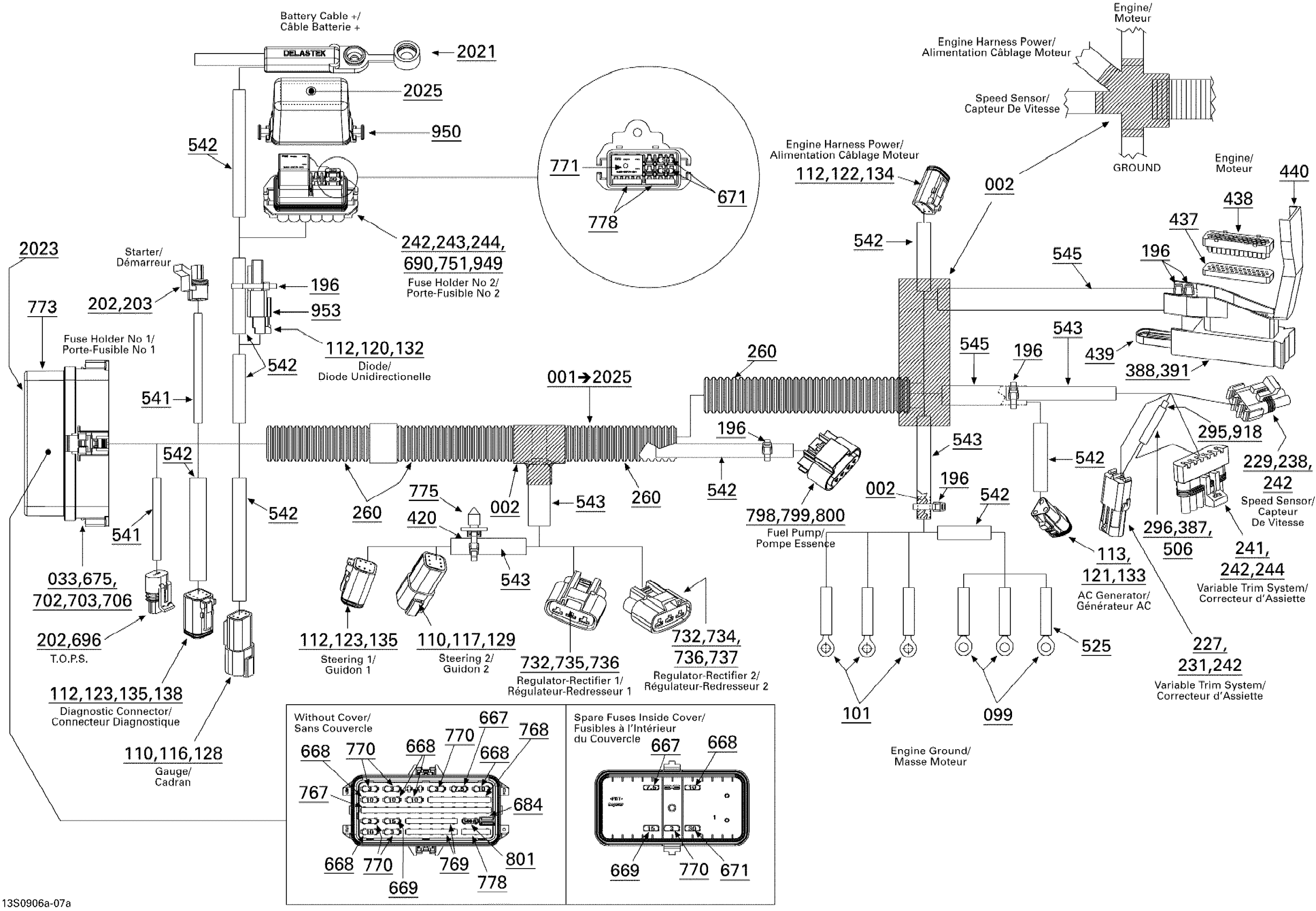

Sea-doo RXP-X 255 and 255 RS, 2009 Electrical Harness 1 Diagram
