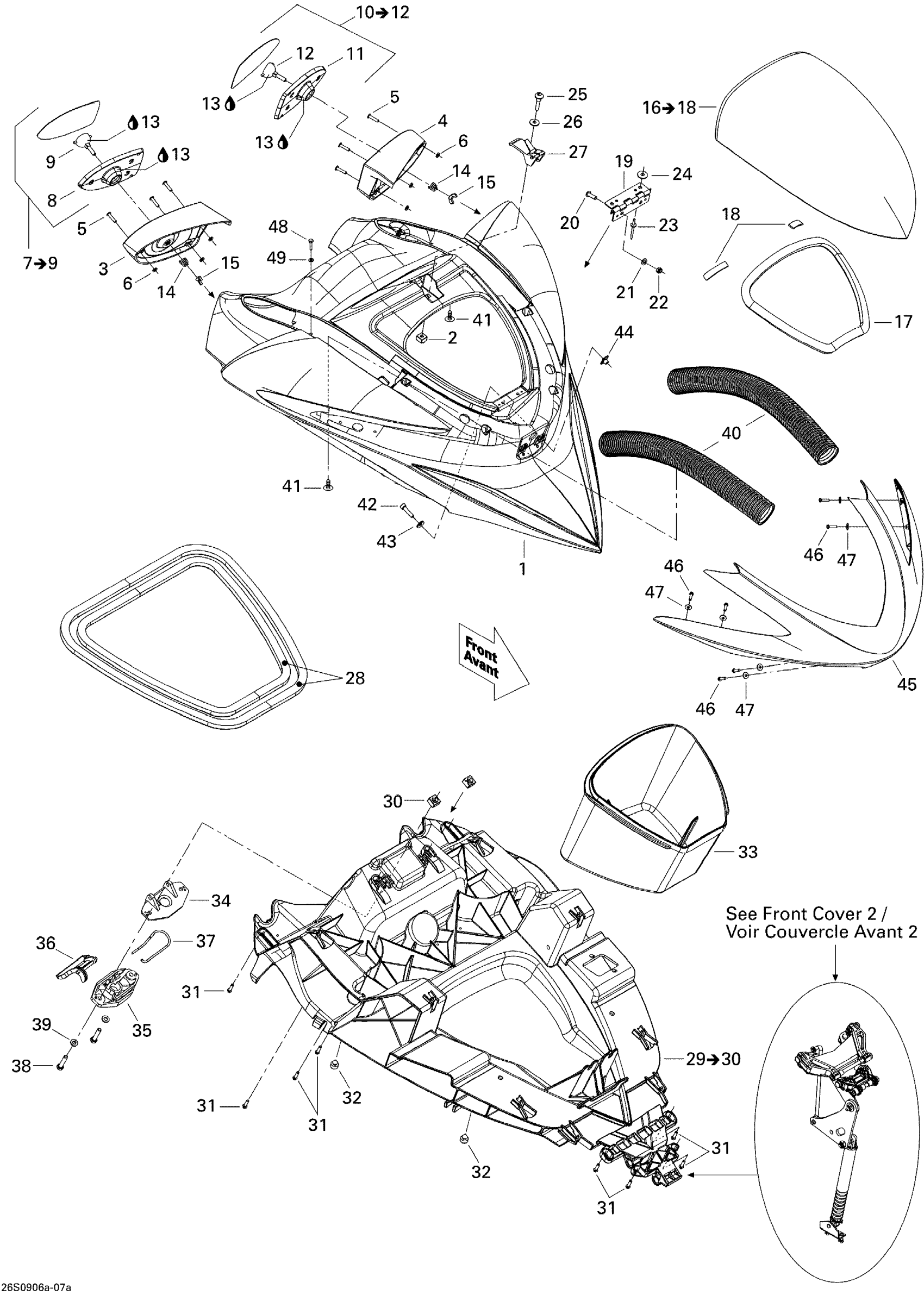

Sea-doo RXP 215, 2009 Front Storage Compartment 1 Diagram

#

Description
Price

1

UPPER STORAGE COVER - Call your local BRP dealership

269501592

Unavailable

2

Housing Nut M6 | Included 550f to 550f2

269502408

Unavailable

3

RH MIRROR HOUSING - Call your local BRP dealership

269501593

Unavailable

4

LH MIRROR HOUSING - Call your local BRP dealership

269501594

Unavailable

5

Pop Rivet 3/16"

293150005

Unavailable

6

Flat Washer, Emhart

213200016

Unavailable

7

RH MIRROR ASS'Y - Call your local BRP dealership | Includes 7 to 9

269501633

Unavailable

8

Frame Mirror

269500697

Unavailable

9

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

10

LH MIRROR - Call your local BRP dealership | Includes 10 to 12

269501634

Unavailable

11

Frame Mirror

269500697

Unavailable

12

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

13

Synthetic Grease, 400 G

293550010

Unavailable

14

Mirror Spring

269500453

Unavailable

15

WING NUT M6 - Call your local BRP dealership

232661600

Unavailable

16

ACCESS COVER ASS'Y - Call your local BRP dealership | Includes 16 to 18

269501729

Unavailable

17

Gasket, Neoprene 2000Mm Long

219704476

Unavailable

18

Seal Tray 1000Mm Long

219704368

Unavailable

19

HINGE - Call your local BRP dealership

269500338

Unavailable

20

Socket Head Screw M5 X 16

205451660

Unavailable

21

Flat Washer M5, Stainless

234051600

$0.64

22

Elastic Stop Nut 5 mm

232551200

Unavailable

23

Pop Rivet 3/16"

204000081

Unavailable

24

Flat Washer 5 mm, Stainless

234052600

Unavailable

25

ANCHORING STUD - Call your local BRP dealership

291001242

Unavailable

26

Flat Washer M6, Stainless

234062600

Unavailable

27

Latch

269501487

Unavailable

28

Was 293200017 Neoprene Seal

219704365

Unavailable

29

LOWER STORAGE COVER - Call your local BRP dealership | Includes 29 to 30

269501379

Unavailable

30

Housing Nut M6 | Included 550f to 550f2

269502408

Unavailable

31

Hex. Flange Screw K40 X 13

241141360

Unavailable

32

Rubber Bumper

293830005

$5.33

33

STORAGE BOX - Call your local BRP dealership

269501133

Unavailable

34

Latch Ass'y

269700109

Unavailable

35

Latch Ass'y

269700109

Unavailable

36

Latch Ass'y

269700109

Unavailable

37

Latch Spring

269700017

$7.27

38

Hex. Screw M6 X 30

207063060

Unavailable

39

Stainless Flat Washer M6

234061600

$0.25

40

VENTILALTION HOSE (BLACK) - Call your local BRP dealership

291002489

Unavailable

41

Black, Dart

293730011

Unavailable

42

Socket Head Screw M6 X 20, Scotch Grip

205562060

Unavailable

43

Flat Washer M6, Stainless

234062600

Unavailable

44

Nut Welded, M6

293100003

Unavailable

45

FRONT GRILL - Call your local BRP dealership

269501597

Unavailable

46

Hex. Flange Screw K40 X 16

241141660

Unavailable

47

Flat Washer 4 mm, Stainless

234042600

Unavailable

48

Plastite Hex. Screw M6.8 X 35

243163560

Unavailable

49

Flat Washer M6, Stainless

234062600

Unavailable
