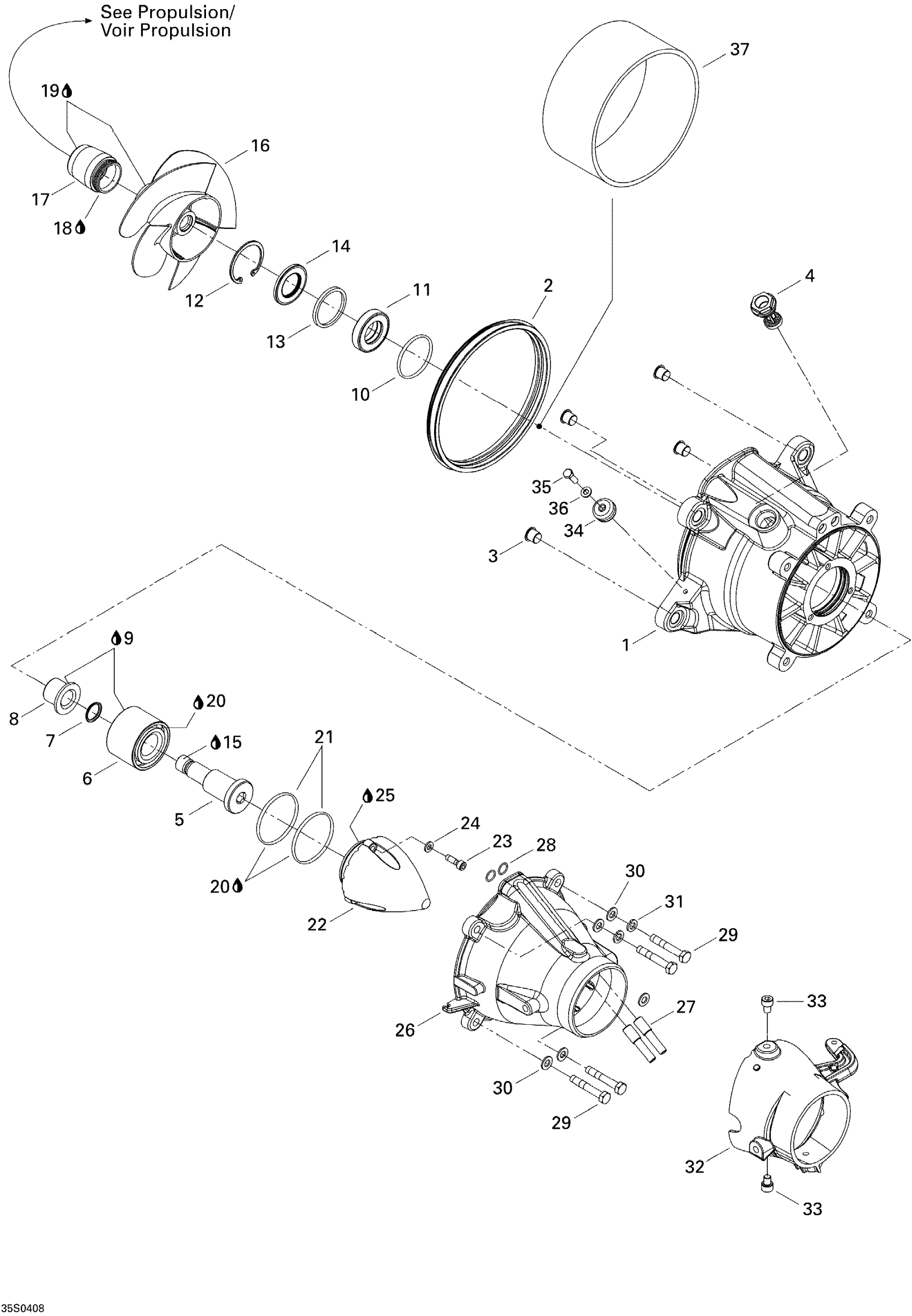

Sea-doo RXP, 2004 Pump System Diagram
#
1
Impeller Housing Ass'y
267000070
Unavailable
2
Neoprene Seal
293200087
Unavailable
3
Bushing
267000093
Unavailable
4
Plug | Includes 370z to 370z1
267000282
Unavailable
5
Impeller Shaft
267000054
Unavailable
6
Angled Bearing This part replaces 267000030.
267000900
Unavailable
7
O-Ring
505070315
Unavailable
8
Shaft Sleeve
267000318
Unavailable
9
Jet Pump Bearing Grease, 110 G
293550032
Unavailable
10
O-Ring
293300090
Unavailable
11
Seal
271002071
Unavailable
12
Circlip
293370038
Unavailable
13
Spacer
271001393
Unavailable
14
Oil Seal
293200089
Unavailable
15
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
16
Impeller Ass'y This part replaces 267000249.
267000697
Unavailable
IMPELLER (HIGH ALTITUDE) - Call your local BRP dealership
267000100
Unavailable
17
Guard
271002228
Unavailable
18
Était Was 293800050 Loctite 577, 250 ml
219704459
Unavailable
19
Synthetic Grease, 400 G
293550010
Unavailable
20
Jet Pump Bearing Grease, 110 G
293550032
Unavailable
21
O-Ring
293300086
Unavailable
22
Impeller Cover
267000262
Unavailable
23
Socket Head Screw M6 X 20, Scotch Grip
205562060
Unavailable
24
Stainless Flat Washer M6
234061600
Unavailable
25
Jet Pump Bearing Grease, 110 G
293550032
Unavailable
26
Venturi, Black
267000058
Unavailable
27
Siphon Tube
271001133
Unavailable
28
O-Ring
293300013
Unavailable
29
HEX. SCREW M8 X 40, SCOTCH GRIP - Call your local BRP dealership
207384060
Unavailable
30
Stainless, Flat Washer 8 mm
234081600
Unavailable
31
Lock Washer 8 mm, Stainless
234181601
Unavailable
32
Steering Nozzle
271001395
Unavailable
33
Socket Head Screw M8 X 10, Scotch Grip
211000127
Unavailable
34
Anode Zinc
271001813
Unavailable
35
Hex. Screw M6 X 20, Scotch Grip
207362060
Unavailable
36
Stainless Flat Washer M6
234061600
Unavailable
37
Wear Ring
267000372
Unavailable
