2016 Yamaha Apex XTX (RX10XTGS) Ski Diagram

← All diagrams

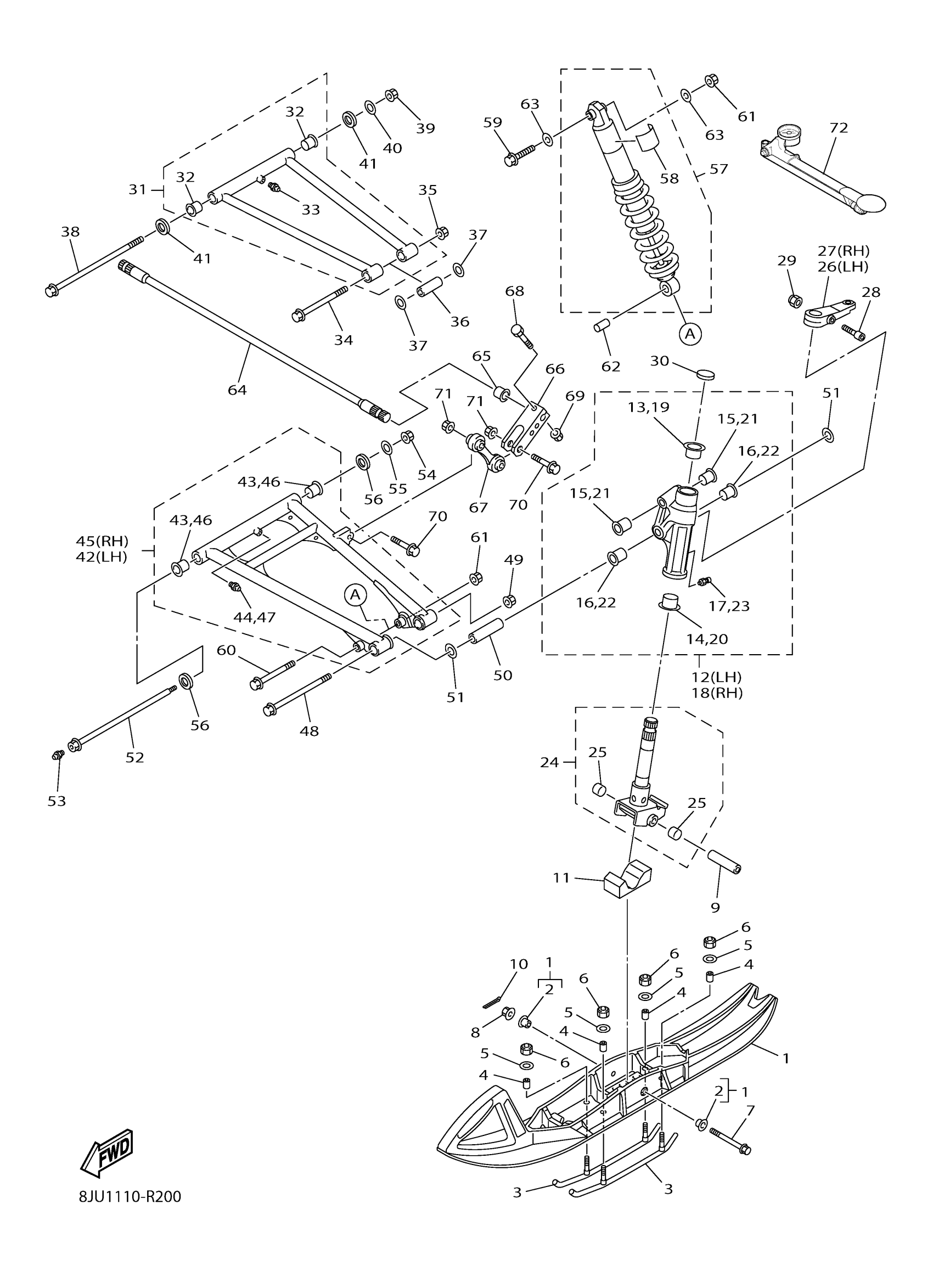

Find the part on the Ski diagram for your 2016 Yamaha Apex XTX (RX10XTGS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha Apex XTX (RX10XTGS) Ski Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI 1

8KM-F3711-00-00

1
Out of stock

2

. COLLAR 1

8EX-F3754-00-00

1
Out of stock

3

RUNNER 1

8KM-F3731-00-00

1
Out of stock

4

BUSH, SKI 1

8KN-F3751-00-00

1
Out of stock

5

WASHER, PLATE

90201-08053-00

1
Out of stock

6

NUT, NYLON

95717-08300-00

1
Out of stock

7

BOLT, FLANGE

90105-10070-00

1
Out of stock

8

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

9

COLLAR

90387-1012H-00

1
Out of stock

10

PIN, COTTER

91490-20025-00

1
Out of stock

11

STOPPER 1

8HG-23743-00-00

1
Out of stock

12

STEERING KNUCKLE A

8HG-23501-10-00

—
Out of stock

13

BUSH, SOLID

90381-25115-00

1
Out of stock

14

BUSH, SOLID

90381-32001-00

1
Out of stock

15

BUSH, SOLID

90381-15N50-00

1
Out of stock

16

BUSH, SOLID

90381-18N51-00

—
Out of stock

17

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

18

STEERING KNUCKLE A

8HG-23502-10-00

—
Out of stock

19

BUSH, SOLID

90381-25115-00

1
Out of stock

20

BUSH, SOLID

90381-32001-00

1
Out of stock

21

BUSH, SOLID

90381-15N50-00

1
Out of stock

22

BUSH, SOLID

90381-18N51-00

—
Out of stock

23

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

24

COLUMN, SKI ASSY

8HG-23803-00-00

—
Out of stock

25

BUSH, BIMETAL FORMED

90384-16N51-00

—
Out of stock

26

ARM, OUTSIDE 1

8FA-23851-00-00

—
Out of stock

27

ARM, OUTSIDE 2

8FA-23852-00-00

—
Out of stock

28

BOLT, HEXAGON SOCKET HEAD

90110-08104-00

—
Out of stock

29

NUT, SELF-LOCKING

95602-08200-00

—
Out of stock

30

CAP, CASE

3YK-22472-40-00

—
Out of stock

31

FRONT UPPER ARM COMP. (LEFT)

8HG-23540-30-00

—
Out of stock

32

BUSH, SOLID

90381-15N50-00

1
Out of stock

33

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

34

BOLT, FLANGE

90105-10230-00

—
Out of stock

35

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

36

COLLAR

90387-10099-00

—
Out of stock

37

WASHER, PLATE

90201-10052-00

—
Out of stock

38

BOLT

90109-10056-00

—
Out of stock

39

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

40

WASHER, PLATE

90201-10052-00

—
Out of stock

41

WASHER

90209-15N50-00

—
Out of stock

42

FRONT LOWER ARM COMP. (LEFT)

8HG-23570-30-00

—
Out of stock

43

BUSH, SOLID

90381-16N51-00

—
Out of stock

44

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

45

FRONT LOWER ARM COMP. (RIGHT)

8HG-23580-30-00

—
Out of stock

46

BUSH, SOLID

90381-16N51-00

—
Out of stock

47

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

48

BOLT, FLANGE

90105-12078-00

—
Out of stock

49

NUT, SELF-LOCKING

95602-12200-00

—
Out of stock

50

COLLAR

90387-12054-00

—
Out of stock

51

WASHER, PLATE(8CJ)

90201-120T5-00

—
Out of stock

52

BOLT, UNION

90401-10045-00

—
Out of stock

53

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

54

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

55

WASHER, PLATE

90201-10052-00

—
Out of stock

56

WASHER

90209-15N50-00

—
Out of stock

57

ABSORBER ASSY 1

8KL-2376A-00-00

—
Out of stock

58

LABEL, WARNING

4AA-22259-60-00

—
Out of stock

59

BOLT, WASHER BASED (4K0)

90105-10169-00

—
Out of stock

60

BOLT, FLANGE

90105-10288-00

—
Out of stock

61

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

62

COLLAR

90387-10N59-00

—
Out of stock

63

WASHER, PLATE

90201-10052-00

—
Out of stock

64

BAR, STABILIZER FRONT

8FG-2386E-10-00

—
Out of stock

65

BUSH, STABILIZER FRONT

8FG-2386G-00-00

—
Out of stock

66

ARM, STABILIZER

8FG-2386L-00-00

—
Out of stock

67

JOINT, STABILIZER 1

8ES-2385L-00-00

—
Out of stock

68

BOLT

90101-06046-00

—
Out of stock

69

NUT, U FLANGE

95604-06200-00

—
Out of stock

70

BOLT, FLANGE(4FM)

95814-08030-00

—
Out of stock

71

NUT, U FLANGE(4KG)

95604-08200-00

—
Out of stock

72

ADJUSTER

8KM-F3703-00-00

1
Out of stock
