2003 Yamaha RX-1 Le (RX10SH) Headlight Diagram

← All diagrams

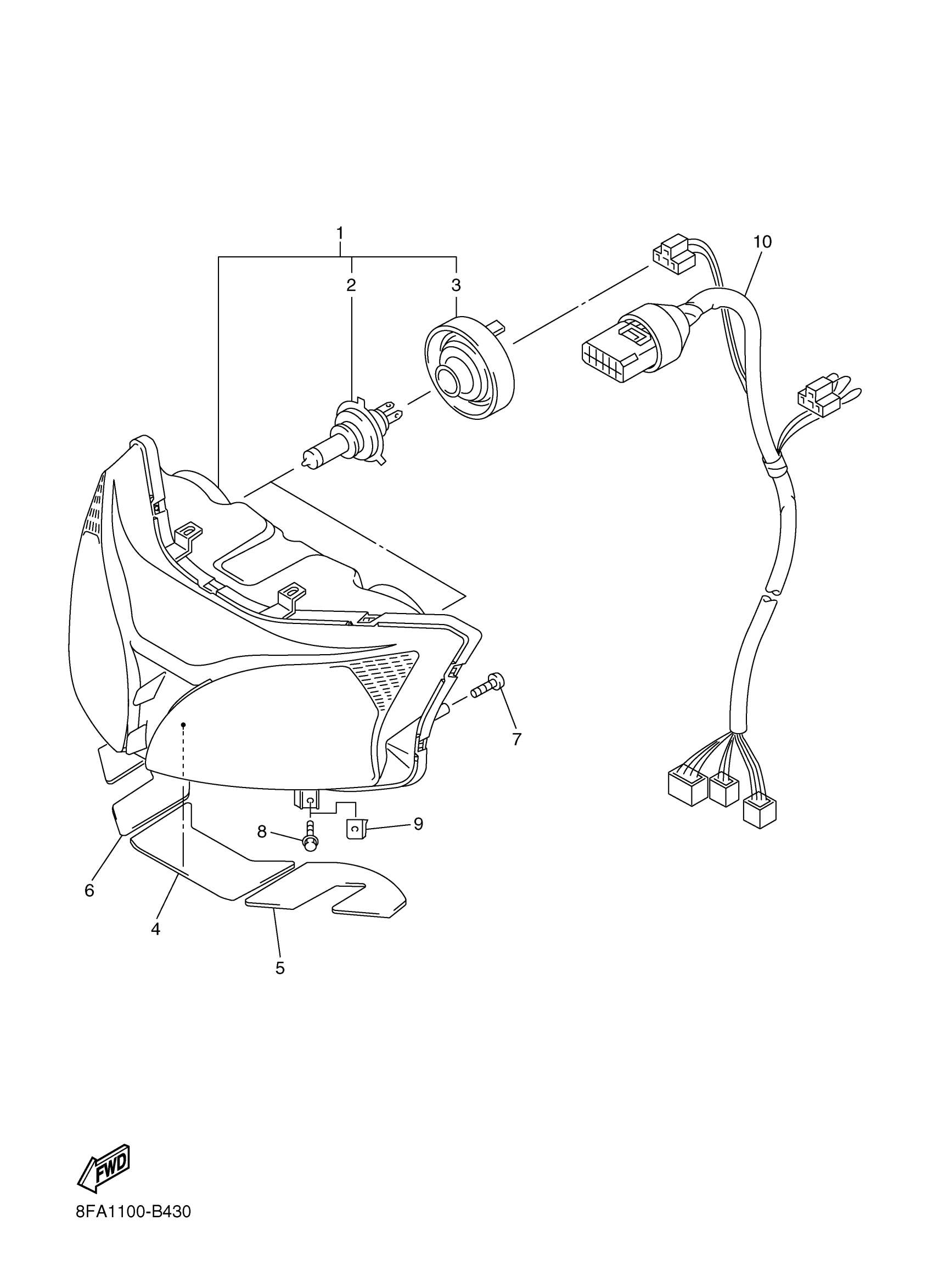

Find the part on the Headlight diagram for your 2003 Yamaha RX-1 Le (RX10SH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Yamaha RX-1 Le (RX10SH) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSY

8FA-84310-10-00

—
Out of stock

2

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

3

COVER, SOCKET

5GJ-84397-00-00

1
Out of stock

4

INSULATOR 1

8EK-8399N-00-00

—
Out of stock

5

INSULATOR 2

8EK-8368L-00-00

—
Out of stock

6

INSULATOR 3

8EK-8368M-00-00

—
Out of stock

7

SCREW, TAPPING(4MV)

97707-50016-00

1
Out of stock

8

BOLT, FLANGE

95817-06016-00

1
Out of stock

9

NUT, SPRING

90183-06100-00

1
Out of stock

10

CORD, HEADLIGHT

8FA-84359-00-00

1
Out of stock
