2006 Yamaha Apex RTX (RX10RTL) Intake 2 Diagram

← All diagrams

Find the part on the Intake 2 diagram for your 2006 Yamaha Apex RTX (RX10RTL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

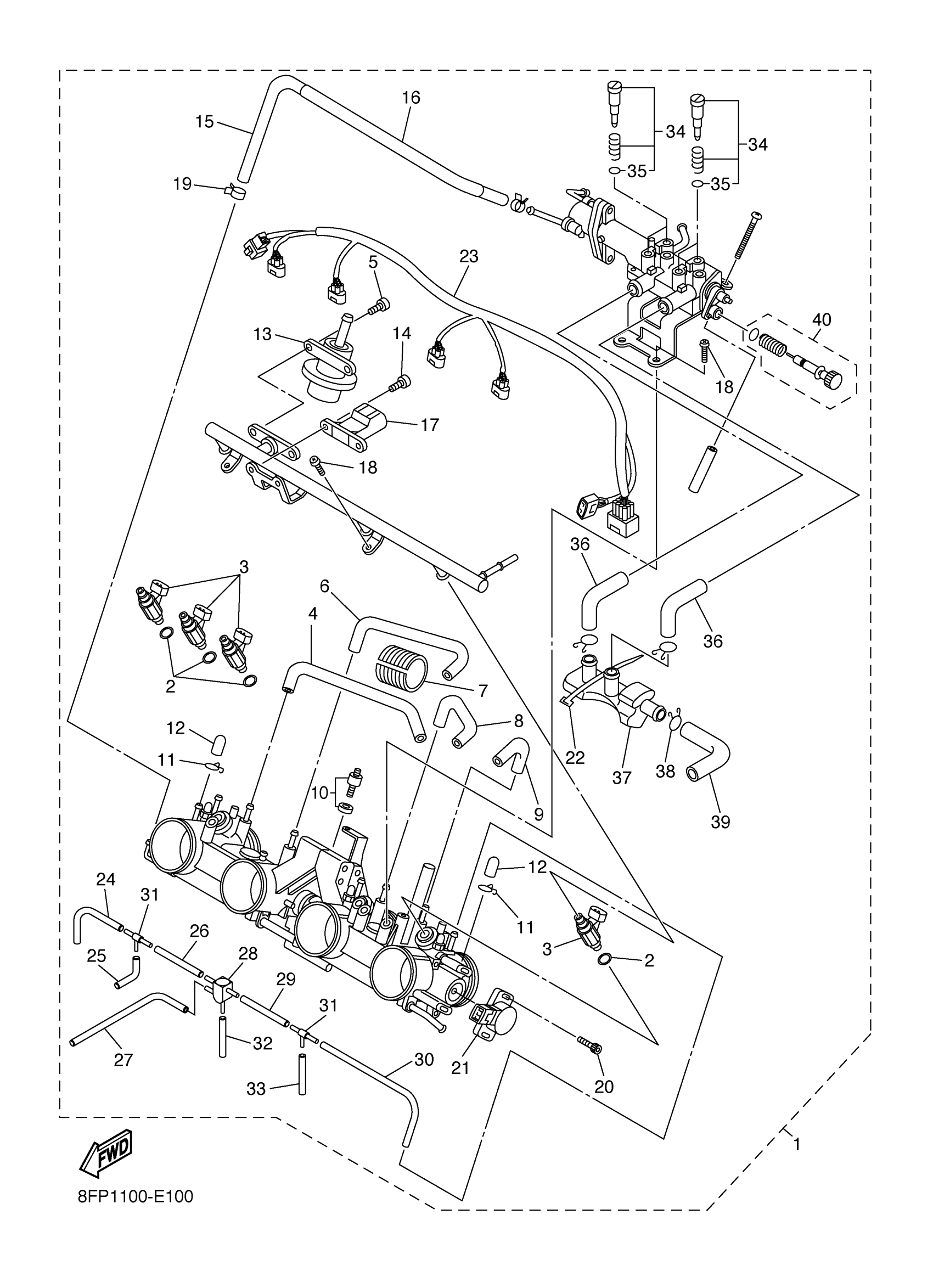

2006 Yamaha Apex RTX (RX10RTL) Intake 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

THROTTLE BODY ASSY

8FP-13750-10-00

1
Out of stock

2

GASKET, MANIFOLD

8FP-13556-00-00

1
Out of stock

3

INJECTOR

8FP-13761-10-00

—
Out of stock

4

HOSE

8FP-14987-00-00

—
Out of stock

5

GASKET, EXHAUST

98507-05008-00

1
Out of stock

6

HOSE

8FP-14987-10-00

—
Out of stock

7

PIPE

8FP-14396-00-00

—
Out of stock

8

HOSE

8FP-14987-20-00

—
Out of stock

9

HOSE

8FP-14987-30-00

—
Out of stock

10

THROTTLE SCREW SET

5JW-14103-10-00

—
Out of stock

11

CLIP, PIPE

8A7-14139-00-00

1
Out of stock

12

CAP

895-14169-00-00

1
Out of stock

13

REGULATOR, PRESSURE

8FP-13906-00-00

—
Out of stock

14

SCREW, PAN

98507-06010-00

1
Out of stock

15

. PIPE 1

8FP-14348-00-00

1
Out of stock

16

PIPE 1

8FP-14348-10-00

—
Out of stock

17

SENSOR, PRESSURE

5PS-82380-00-00

—
Out of stock

18

SCREW, PAN

98517-06012-00

—
Out of stock

19

CLIP

90467-11028-00

1
Out of stock

20

SCREW

8CC-14216-10-00

—
Out of stock

21

THROTTLE SENSOR ASSY

3P6-85885-01-00

1
Out of stock

22

CLIP

4KM-14137-00-00

—
Out of stock

23

EXTENSION, WIRE HARNESS

8FP-82386-01-00

1
Out of stock

24

PIPE 1

5JW-14348-00-00

—
Out of stock

25

PIPE

8FP-14349-00-00

—
Out of stock

26

HOSE

5PS-14987-00-00

—
Out of stock

27

PIPE

8FP-14349-10-00

—
Out of stock

28

CONNECTOR

5PW-1410F-00-00

—
Out of stock

29

PIPE

8FP-14349-20-00

—
Out of stock

30

HOSE

5JW-14987-00-00

—
Out of stock

31

. PIPE, JOINT 1

68V-24376-00-00

1
Out of stock

32

PIPE 1

5FL-14348-10-00

—
Out of stock

33

PIPE

8FP-14349-30-00

—
Out of stock

34

AIR SCREW SET

5JW-14104-00-00

—
Out of stock

35

O-RING, PILOT SCREW

3H1-14147-00-00

—
Out of stock

36

. PIPE

8FP-14148-00-00

1
Out of stock

37

JOINT

8FP-14454-00-00

—
Out of stock

38

CLIP (21V)

90467-22080-00

—
Out of stock

39

PIPE

8FP-14149-00-00

—
Out of stock

40

ADJUST SCREW SET

8FP-14503-00-00

—
Out of stock
