2006 Yamaha Apex RTX (RX10RTL) Bumper Diagram

← All diagrams

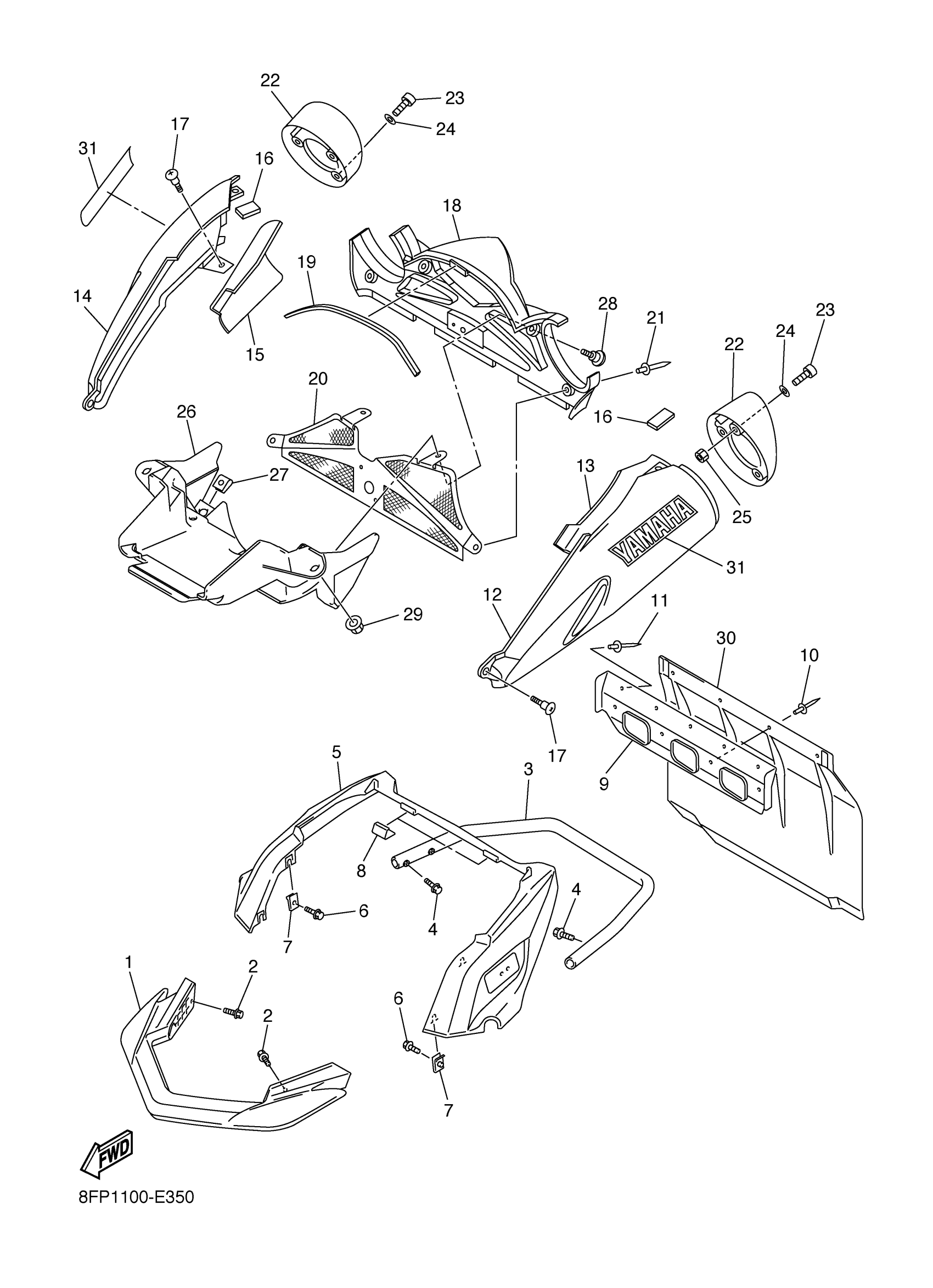

Find the part on the Bumper diagram for your 2006 Yamaha Apex RTX (RX10RTL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Yamaha Apex RTX (RX10RTL) Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BUMPER, FRONT 1

8FA-77511-01-00

1

$237.55

In stock

2

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

3

BUMPER, REAR 1

8FP-77541-01-00

1
Out of stock

4

BOLT, FLANGE(8AB)

95817-08020-00

1

$7.00

In stock

5

BUMPER, REAR 2

8FA-77542-00-00

—

$98.49

In stock

6

BOLT, FLANGE

95817-06016-00

1

$1.49

In stock

7

NUT, SPRING(4ES)

90183-06069-00

1

$5.93

In stock

8

TAPE 4

8FA-7717H-00-00

1

$0.96

In stock

9

STOPPER, FLAP

8FU-77596-00-00

1
Out of stock

10

RIVET, BLIND

90267-47200-00

1
Out of stock

11

RIVET, BLIND(3JB)

90267-48095-00

1

$2.00

In stock

12

PROTECTOR 1

8FP-77551-01-P0

—

$129.03

In stock

13

LINING, SHROUD 1

8FP-77261-00-00

1
Out of stock

14

PROTECTOR 2

8FP-77552-01-P0

—

$122.09

In stock

15

LINING, SHROUD 2

8FP-77262-00-00

—

$23.00

In stock

16

LINING, SHROUD 3

8FP-77263-00-00

—
Out of stock

17

SCREW, BINDING

90154-06009-00

—

$2.92

In stock

18

COVER, TAILLIGHT

8FP-84516-01-00

—

$82.49

In stock

19

TRIM 8

8FP-77234-00-00

—

$9.72

In stock

20

LOUVER 1

8FP-77441-00-00

—

$117.00

In stock

21

RIVET, BLIND(8CH)

90267-47187-00

—
Out of stock

22

CAP

8FP-77517-00-00

—

$143.17

In stock

23

BOLT,SOCKET HEAD

91314-06020-00

—

$2.05

In stock

24

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

25

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

26

BRACKET, TAILLIGHT

99999-03831-00

1
Out of stock

27

NUT, SPRING(4ES)

90183-06069-00

1

$5.93

In stock

28

SCREW, BINDING

90154-06009-00

—

$2.92

In stock

29

NUT,SELF-LOCKING

95607-06200-00

—

$10.25

In stock

30

FLAP

8GT-K7595-00-00

1
Out of stock

31

EMBLEM, YAMAHA

99244-00140-00

—
Out of stock
