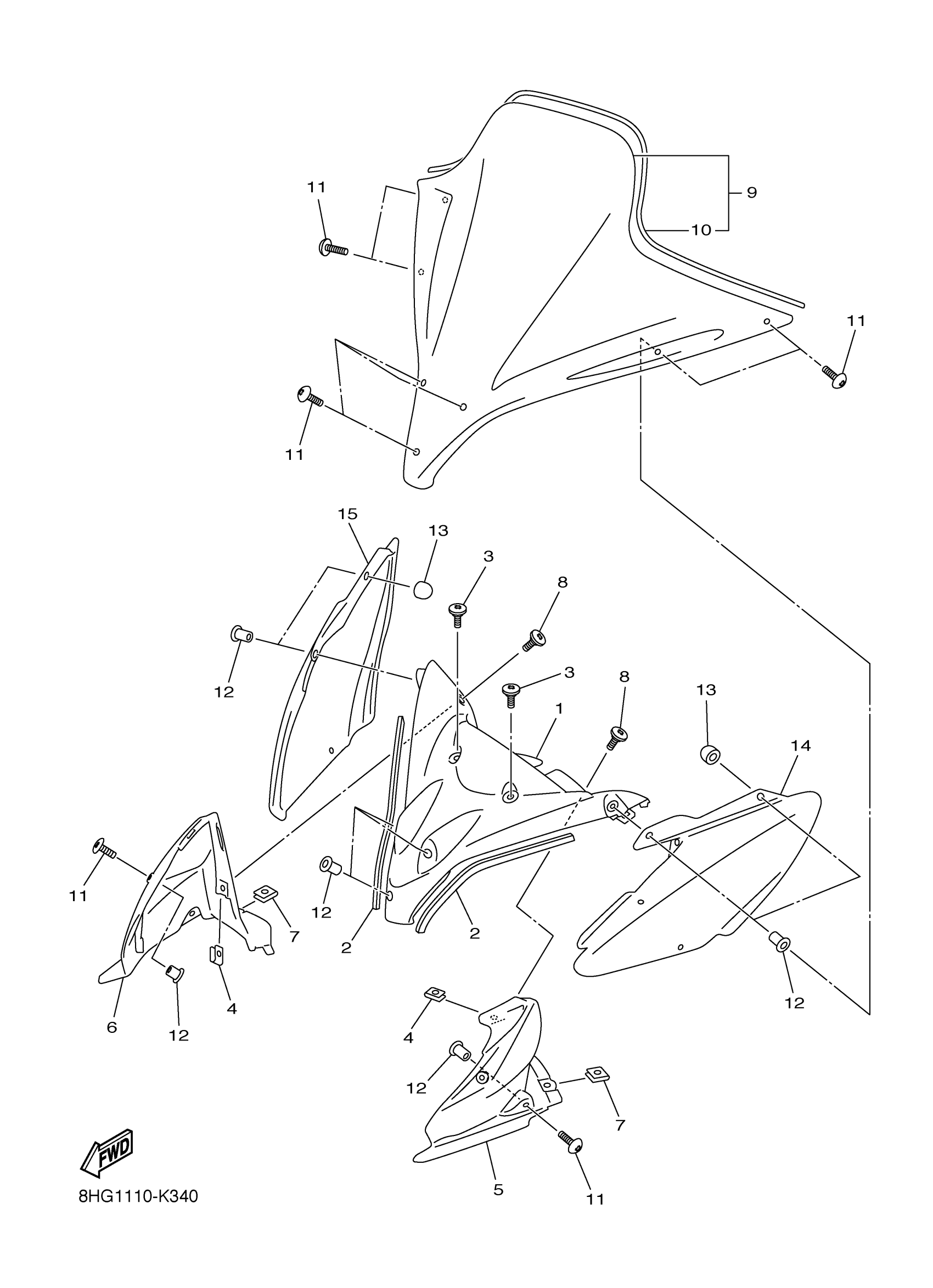

Yamaha RX10PSFB (APEX SE) 8JCB 2015 WINDSHIELD Diagram

#

Description
Price

1

COVER, HEADLIGHT

8HG-77251-00-00

$75.77

2

DAMPER

8HG-77238-00-00

Unavailable

3

SCREW, BINDING

90154-06009-00

$2.80

4

NUT, SPRING

90183-06100-00

$7.35

5

PLATE 1

8HG-77185-00-00

$77.91

6

PLATE 2

8HG-77186-00-00

$77.91

7

PLATE, SPRING

5PW-2177L-01-00

$5.80

8

SCREW, BINDING

90154-06009-00

$2.80

9

WINDSHIELD COMP.

8HG-K7210-10-00

$94.70

10

TRIM,UPPER

8FM-K7213-00-00

Unavailable

11

SCREW, ROUND HEAD(1UX)

90150-05024-00

$2.66

12

NUT (8J2)

90179-05271-00

$5.17

13

CAP, END

8HG-78139-00-00

$5.89

14

FAIRING 2

8HG-K723A-00-00

Unavailable

15

FAIRING 3

8HG-K723B-00-00

$33.21
