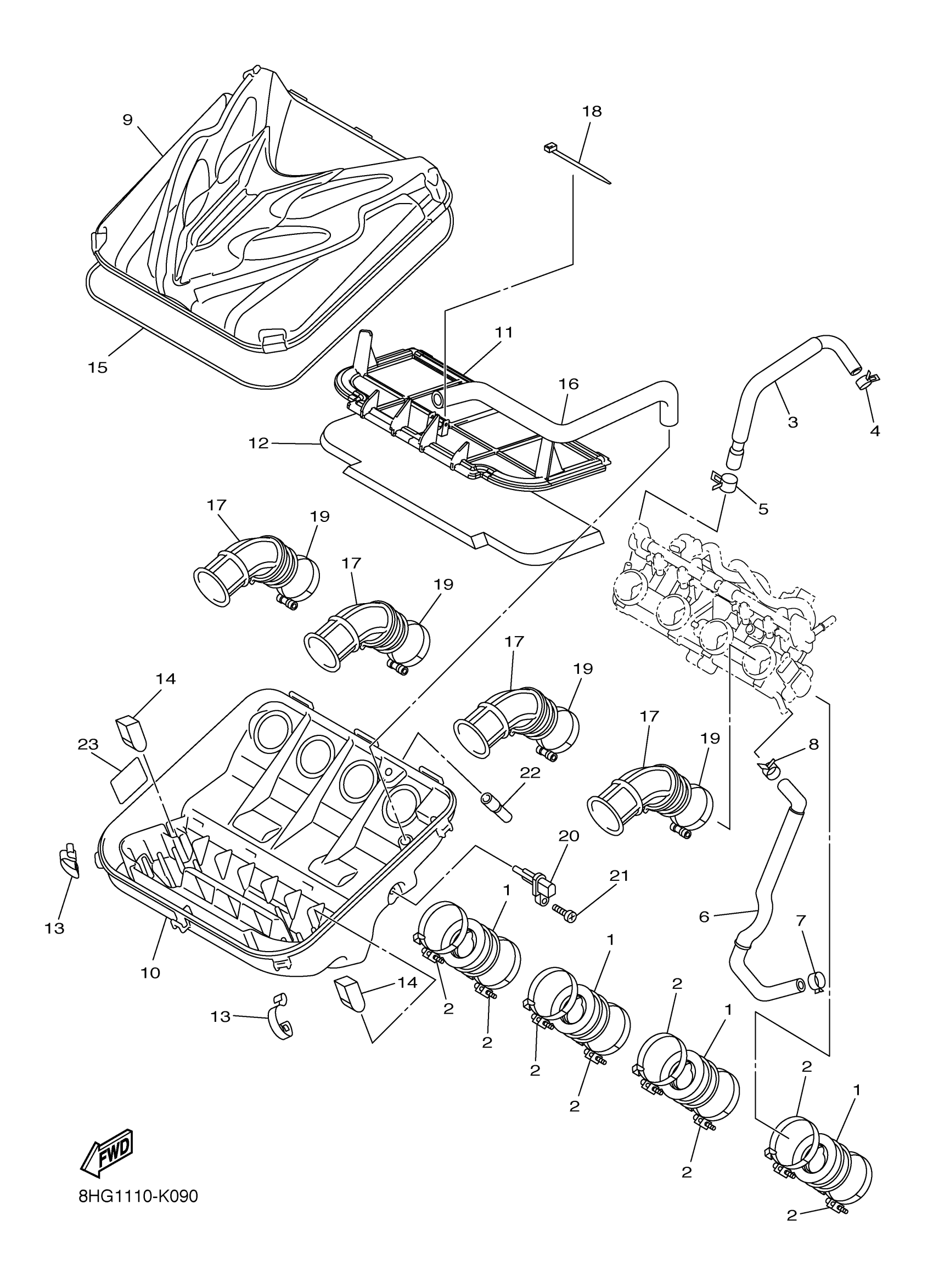

Find the part on the Intake diagram for your 2015 Yamaha Apex SE (RX10PSFB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Yamaha Apex SE (RX10PSFB) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 1

8FP-13586-00-00

1

$23.62

In stock

2

HOSE CLAMP ASSY

90450-62004-00

—

$13.79

In stock

3

HOSE 1

8HG-1243A-00-00

—

$11.78

In stock

4

CLIP(3BM)

90467-10135-00

1

$6.91

In stock

5

CLIP

90467-120A5-00

1

$6.25

In stock

6

HOSE 3

8FP-12578-00-00

1

$28.49

In stock

7

CLIP(3BM)

90467-10135-00

1

$6.91

In stock

8

CLIP

90467-120A5-00

1

$6.25

In stock

9

SILENCER, INTAKE 1

8HG-14431-00-00

—

$108.60

In stock

10

SILENCER, INTAKE 2

8HG-14441-00-00

—

$55.55

In stock

11

PLATE, ELEMENT

8FP-14472-00-00

—

$59.11

In stock

12

ELEMENT, AIR CLEANER

8FP-14451-00-00

1

$24.54

In stock

13

HOOK

8FA-14436-00-00

1

$5.08

In stock

14

DAMPER 1

8FP-14425-00-00

1

$6.80

In stock

15

SEAL

8FP-14452-00-00

—

$11.42

In stock

16

PIPE

8FP-14419-00-00

—

$70.77

In stock

17

JOINT, AIR CLEANER 1

8HG-14453-01-00

—
Out of stock

18

BAND

1UA-82591-00-00

—
Out of stock

19

HOSE CLAMP ASSY

90450-53007-00

—

$7.03

In stock

20

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

—

$49.83

In stock

21

SCREW, PANHEAD TAPPING

97702-50520-00

—

$0.28

In stock

22

HOSE 1

8HG-13545-00-00

—

$4.05

In stock

23

LABEL, CAUTION

8FA-2389C-E0-00

—

$2.45

In stock
