2015 Yamaha Apex Se (RX10PSFB) Electrical 2 Diagram

← All diagrams

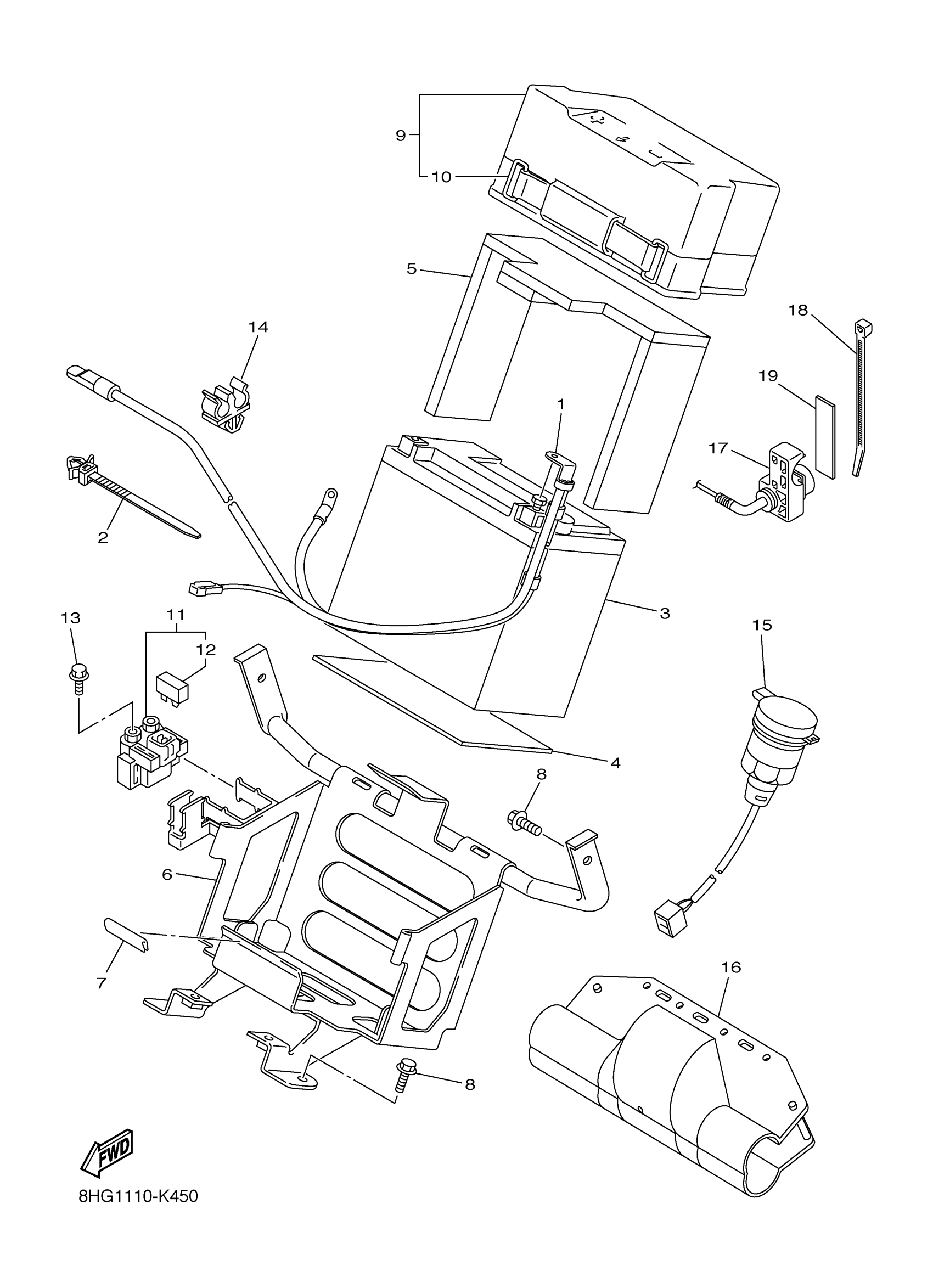

Find the part on the Electrical 2 diagram for your 2015 Yamaha Apex Se (RX10PSFB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Yamaha Apex Se (RX10PSFB) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WIRE, MINUS LEAD

8HG-82116-00-00

—

$63.40

In stock

2

CLAMP(2TV)

90464-10112-00

1

$6.18

In stock

3

YTX14BS YUASA BATTERY - SA

YTX-14BS0-00-00

1
Out of stock

4

SEAT, BATTERY

8FA-82122-00-00

—

$6.11

In stock

5

PLATE, BATTERY FITTING

8FU-82136-00-00

—

$19.83

In stock

6

BRACKET, BATTERY

8HG-2199G-00-00

—

$95.80

In stock

7

MOLD, FUEL TANK

3VD-24188-00-00

—
Out of stock

8

BOLT, FLANGE

95814-08016-00

1

$6.68

In stock

9

COVER, BATTERY

8FU-82129-00-00

—

$56.82

In stock

10

BAND, BATTERY

8DM-82131-10-00

1

$12.75

In stock

11

STARTER RELAY ASSY

8HG-81940-00-00

1

$110.08

In stock

12

FUSE (10A)

42X-82151-00-00

1

$2.16

In stock

13

BOLT, FLANGE

95022-06008-00

1

$6.26

In stock

14

CLAMP(87A)

90464-08126-00

1
Out of stock

15

TERMINAL COMP.

8FP-8254B-00-00

—

$148.14

In stock

16

COVER

8FP-8252U-00-00

—

$16.38

In stock

17

TERMINAL COMP.

8HK-8254B-00-00

—

$128.85

In stock

18

CLAMP(3XW)

90464-35132-00

—
Out of stock

19

DAMPER

8HF-84527-00-00

—

$4.38

In stock
