2015 Yamaha Apex Se (RX10PSFB) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2015 Yamaha Apex Se (RX10PSFB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

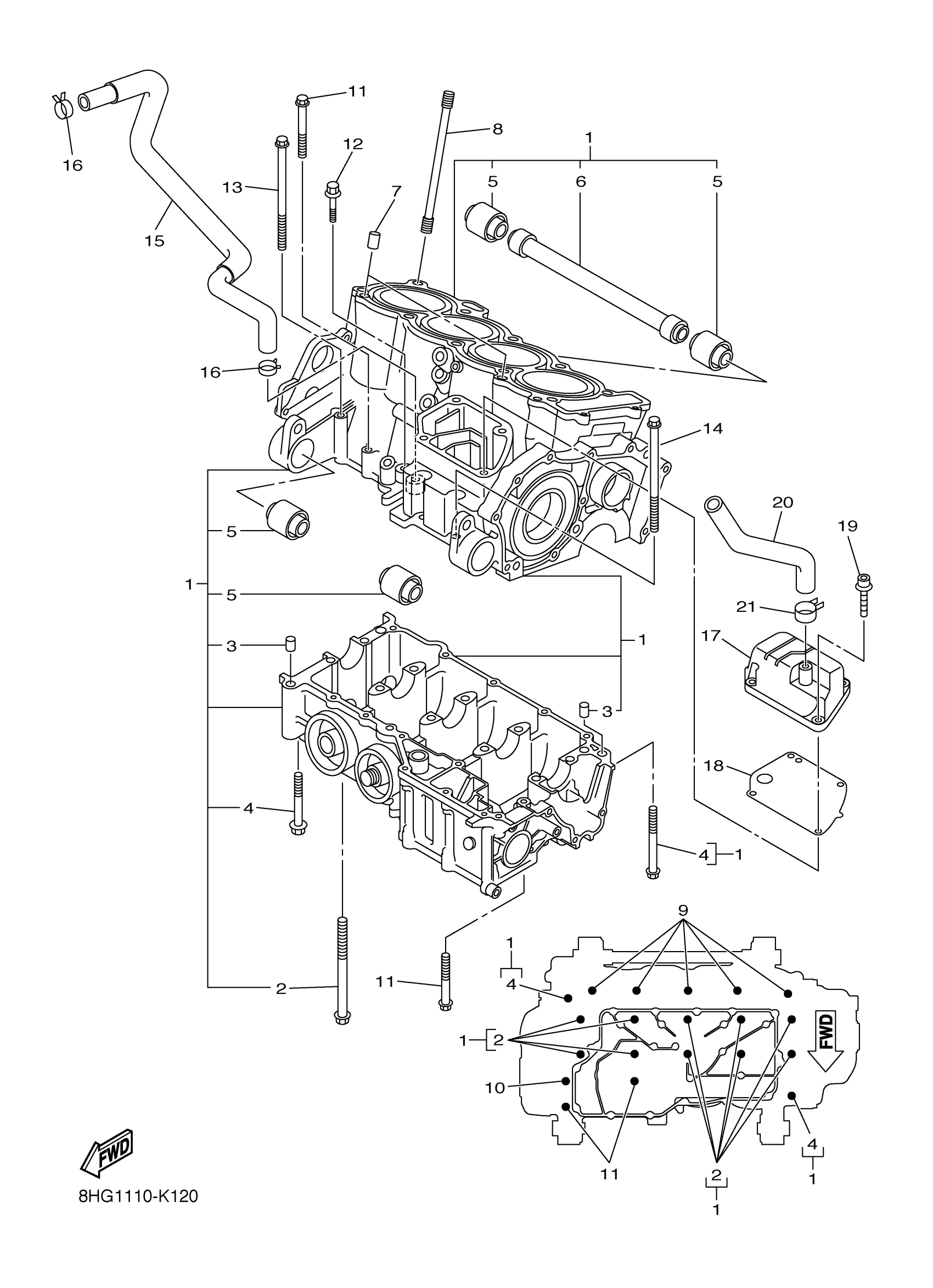

2015 Yamaha Apex Se (RX10PSFB) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

8FP-15100-08-00

—
Out of stock

2

BOLT, WITH WASHER

90119-09004-00

1
Out of stock

3

PIN, DOWEL(3VD)

99530-10114-00

1
Out of stock

4

BOLT

90109-06100-00

1
Out of stock

5

DAMPER

8FA-2139X-00-00

—
Out of stock

6

SPACER

8FA-21459-00-00

—
Out of stock

7

PIN, DOWEL(3VD)

99530-10114-00

1
Out of stock

8

BOLT, STUD

90116-10619-00

1
Out of stock

9

BOLT, FLANGE

95812-06055-00

1
Out of stock

10

BOLT, FLANGE

95817-06025-00

—
Out of stock

11

BOLT, FLANGE

95817-06045-00

1
Out of stock

12

BOLT, FLANGE

95817-06045-00

1
Out of stock

13

BOLT, FLANGE

95812-06080-00

1
Out of stock

14

BOLT, FLANGE

95812-06090-00

1
Out of stock

15

PIPE, BREATHER 1

8FP-11166-00-00

—
Out of stock

16

CLIP (4V3)

90467-20050-00

—
Out of stock

17

COVER

8FP-15413-00-00

—
Out of stock

18

GASKET, CRANKCASE COVER 3

8FP-15462-01-00

—
Out of stock

19

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

—
Out of stock

20

PIPE, BREATHER 2

8FP-11167-00-00

—
Out of stock

21

CLIP

90467-220A0-00

—
Out of stock
