2012 Yamaha Apex SE (RX10PSBL) Windshield Diagram

← All diagrams

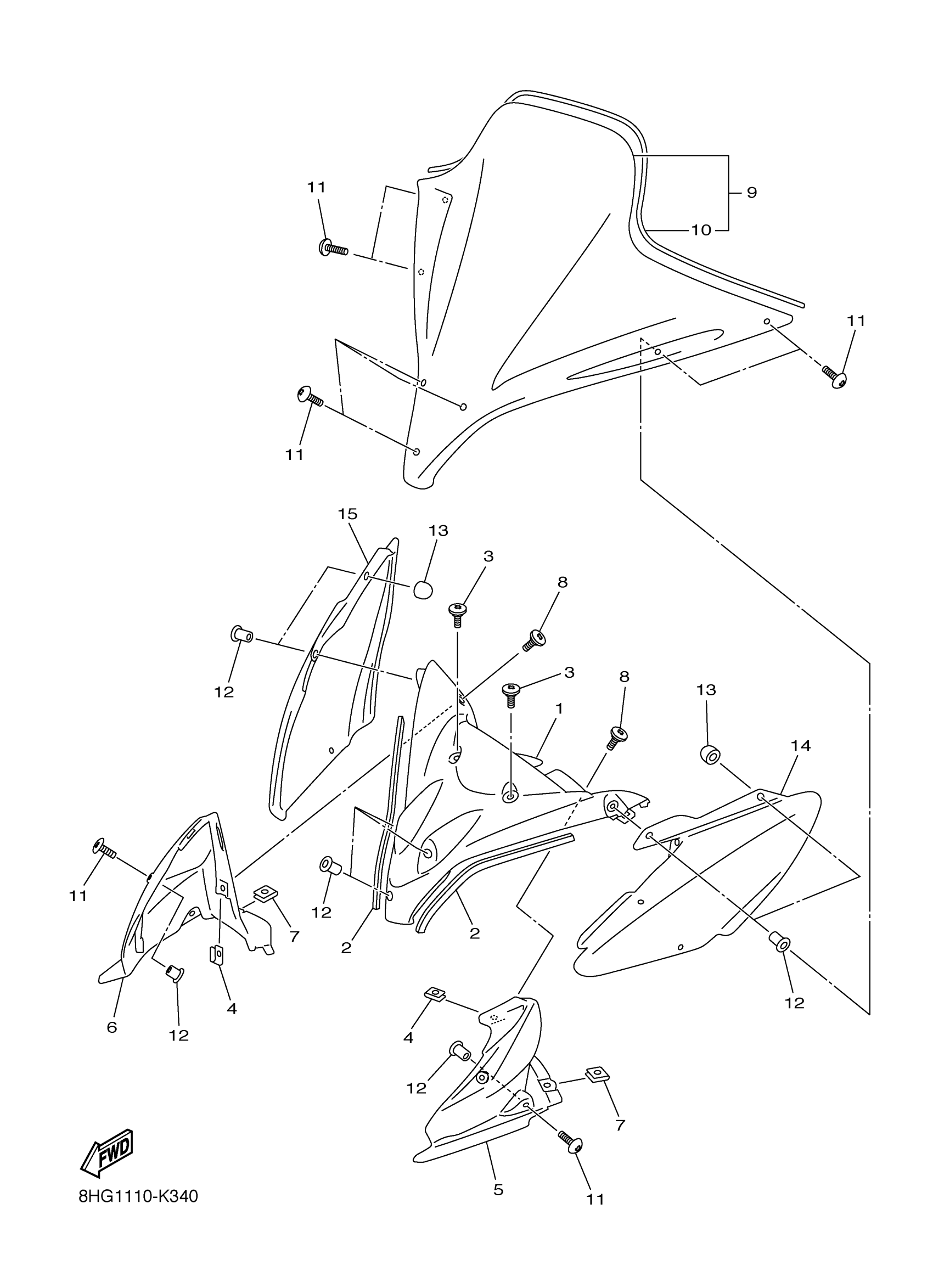

Find the part on the Windshield diagram for your 2012 Yamaha Apex SE (RX10PSBL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha Apex SE (RX10PSBL) Windshield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, HEADLIGHT

8HG-77251-00-00

1

$76.94

In stock

2

DAMPER

8HG-77238-00-00

—

$1.88

In stock

3

SCREW, BINDING

90154-06009-00

1

$2.92

In stock

4

NUT, SPRING

90183-06100-00

1
Out of stock

5

PLATE 1

8HG-77185-00-00

1

$79.11

In stock

6

PLATE 2

8HG-77186-00-00

1

$79.11

In stock

7

PLATE, SPRING

5PW-2177L-01-00

1

$6.23

In stock

8

SCREW, BINDING

90154-06009-00

1

$2.92

In stock

9

WINDSHIELD COMP.

8HG-K7210-00-00

1
Out of stock

10

TRIM,UPPER

8FM-K7213-00-00

1
Out of stock

11

SCREW, ROUND HEAD(1UX)

90150-05024-00

1

$2.85

In stock

12

NUT (8J2)

90179-05271-00

1
Out of stock

13

CAP, END

8HG-78139-00-00

1

$5.98

In stock

14

FAIRING 2

8HG-K723A-00-00

1
Out of stock

15

FAIRING 3

8HG-K723B-00-00

1

$33.72

In stock
