2015 Yamaha Apex (RX10PFB) Frame 2 Diagram

← All diagrams

Find the part on the Frame 2 diagram for your 2015 Yamaha Apex (RX10PFB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

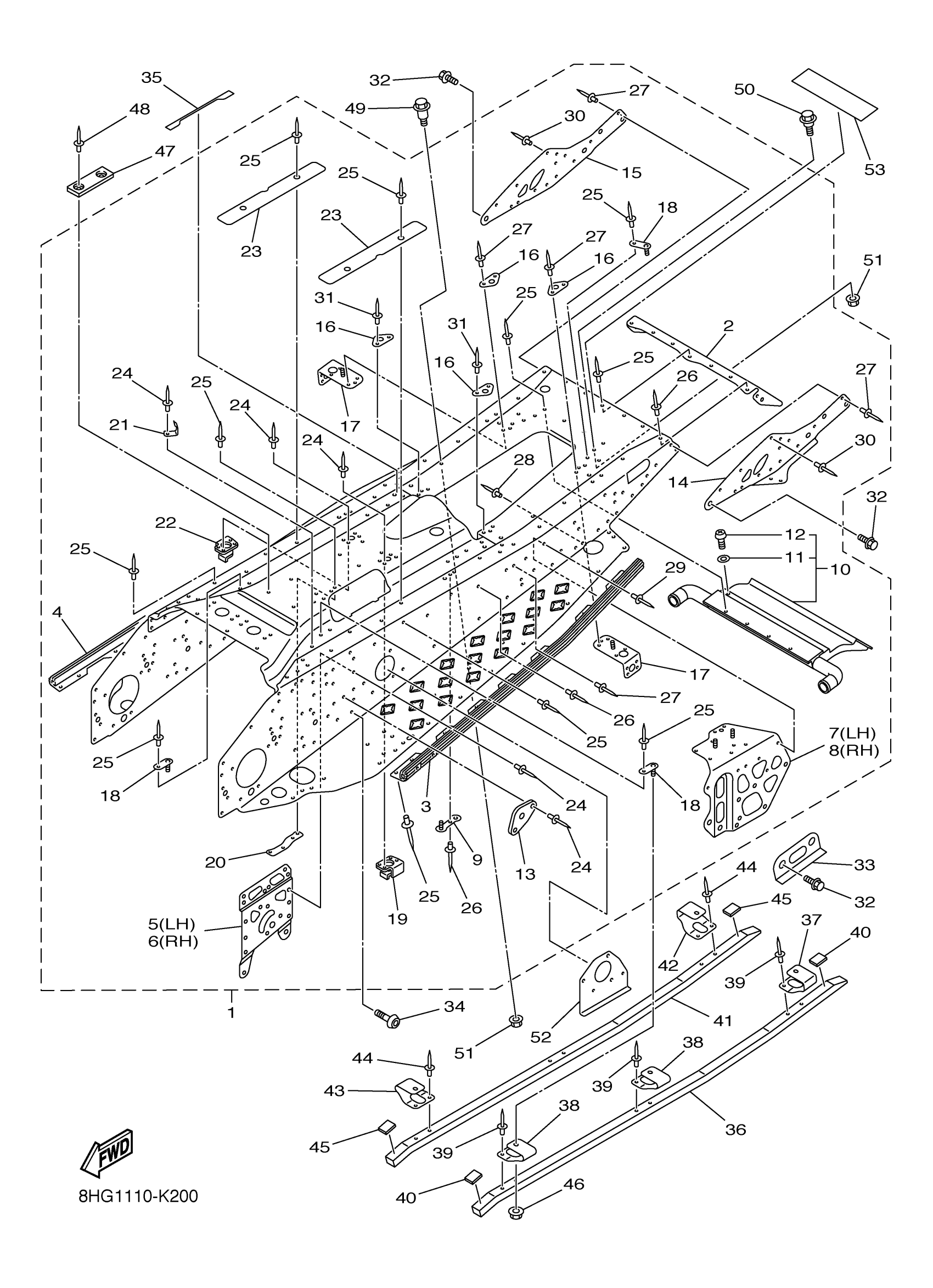

2015 Yamaha Apex (RX10PFB) Frame 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR FRAME COMP.

8HG-21950-00-00

1
Out of stock

2

REINEFORCEMENT, FRAME REAR 1

8HG-21923-00-00

—
Out of stock

3

REINFORCEMENT, FOOTREST 1

8FG-21926-00-00

—
Out of stock

4

REINFORCEMENT, FOOTREST 2

8FG-21936-00-00

—
Out of stock

5

. BRACKET, MAIN TRACK 1

8FU-21943-00-00

1
Out of stock

6

BRACKET, MAIN TRACK 2

8FU-21953-00-00

1
Out of stock

7

BRACKET, RR.TRACK SUSPENTION 1

8HG-21944-00-00

—
Out of stock

8

BRACKET, RR.TRACK SUSPENTION 2

8HG-21954-00-00

—
Out of stock

9

BRACKET, FUEL TANK 1

8HG-2194N-00-00

—
Out of stock

10

HEAT EXCHANGER ASSY 4

8HG-1241A-00-00

1
Out of stock

11

WASHER, SEAL (7G5)

90210-06006-00

1
Out of stock

12

SCREW, PAN

98517-06012-00

1
Out of stock

13

BRACKET, MAIN TRACK 3

8FU-21919-00-00

—
Out of stock

14

REINF., SUB FRAME 1

8HG-21928-00-00

1
Out of stock

15

REINF., SUB FRAME 2

8HG-21938-00-00

—
Out of stock

16

PATCH

8HG-22168-00-00

—
Out of stock

17

PLATE 1

8HG-2162G-00-00

—
Out of stock

18

BRKT., 9

8HG-2251A-00-00

—
Out of stock

19

STAY, MUFFLER

8HG-14791-00-00

—
Out of stock

20

PATCH 1

8HG-21961-00-00

—
Out of stock

21

. CLAMP

90465-08370-00

1
Out of stock

22

STAY, MUFFLER

8HG-14792-00-00

—
Out of stock

23

DAMPER 1

8HG-2214F-00-00

—
Out of stock

24

RIVET, BLIND

90267-47195-00

—
Out of stock

25

RIVET, BLIND

90267-48023-00

—
Out of stock

26

RIVET, BLIND

90267-48177-00

—
Out of stock

27

RIVET, BLIND

90267-48016-00

—
Out of stock

28

RIVET, BLIND

90267-48010-00

—
Out of stock

29

RIVET, BLIND (22W)

90267-48083-00

—
Out of stock

30

RIVET, BLIND

90267-48015-00

—
Out of stock

31

RIVET, BLIND

90267-48016-00

—
Out of stock

32

BOLT, FLANGE

95817-10020-00

—
Out of stock

33

PATCH 8

8FU-21988-01-00

—
Out of stock

34

BOLT, BUTTON HEAD

92012-10020-00

—
Out of stock

35

PROTECTOR, SIDE 1

8HG-77561-00-00

—
Out of stock

36

PROTECTOR, FRAME

8HG-21978-00-00

—
Out of stock

37

BRACKET 4

8HG-2196G-00-00

—
Out of stock

38

BRACKET 7

8HG-2197N-00-00

—
Out of stock

39

RIVET, BLIND

90267-48177-00

—
Out of stock

40

DAMPER

8HG-21852-00-00

—
Out of stock

41

PROTECTOR, FRAME

8HG-21978-00-00

—
Out of stock

42

BRACKET 4

8HG-2196G-00-00

—
Out of stock

43

BRACKET 7

8HG-2197N-00-00

—
Out of stock

44

RIVET, BLIND

90267-48177-00

—
Out of stock

45

DAMPER

8HG-21852-00-00

—
Out of stock

46

NUT, SELF-LOCKING

95602-08200-00

—
Out of stock

47

SPACER

8FA-21998-00-00

—
Out of stock

48

RIVET, BLIND (8L0)

90267-48059-00

—
Out of stock

49

BOLT

90109-06241-00

—
Out of stock

50

BOLT

90109-06220-00

—
Out of stock

51

NUT, FLANGE

95702-06500-00

—
Out of stock

52

PATCH 2

8FR-21962-00-00

—
Out of stock

53

LABEL, WARNING 2

8HA-77762-E0-00

—
Out of stock
