2014 Yamaha Apex (RX10PER) Ski Diagram

← All diagrams

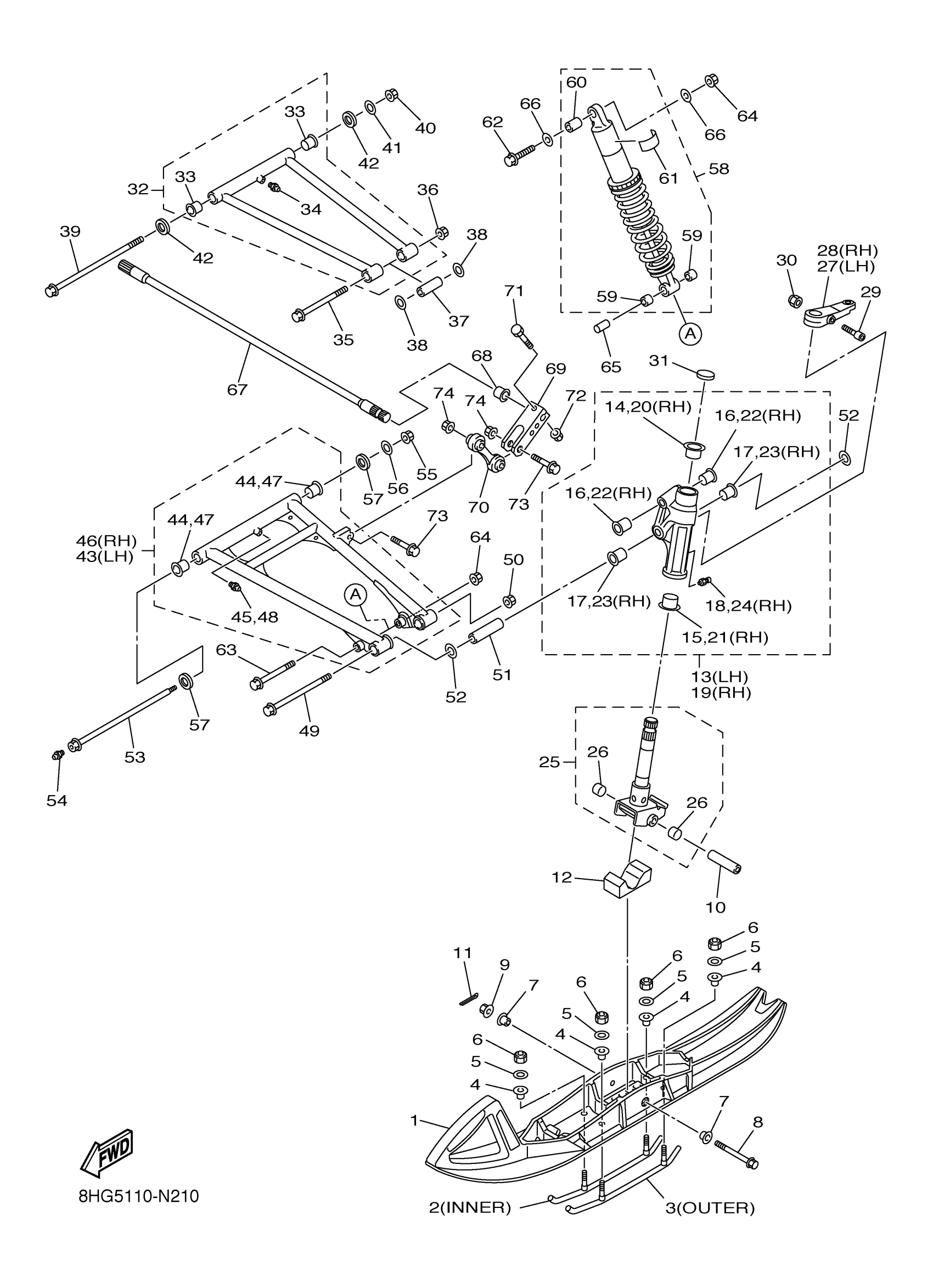

Find the part on the Ski diagram for your 2014 Yamaha Apex (RX10PER), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Yamaha Apex (RX10PER) Ski Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEN II 135MM TUNER SKI BK

SMA-8JPDS-00-00

1
Out of stock

2

8JH CARBIDE PAIR - 9MM RD 2"

SMA-8JH31-02-00

1
Out of stock

3

8JH RUNNER SET - NO CARBIDE

SMA-8JH31-01-00

1
Out of stock

4

COLLAR

90387-08064-00

1
Out of stock

5

WASHER, PLATE

90201-08053-00

1
Out of stock

6

NUT, NYLON

95717-08300-00

1
Out of stock

7

. COLLAR 1

8EX-F3754-00-00

1
Out of stock

8

BOLT, FLANGE

90105-10070-00

1
Out of stock

9

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

10

COLLAR

90387-1012H-00

1
Out of stock

11

PIN, COTTER

91490-20025-00

1
Out of stock

12

STOPPER 1

8HG-23743-00-00

1
Out of stock

13

STEERING KNUCKLE ASSY (LEFT)

8HG-23501-00-00

1
Out of stock

14

BUSH, SOLID

90381-25115-00

1
Out of stock

15

BUSH, SOLID

90381-32001-00

1
Out of stock

16

BUSH, SOLID

90381-15N50-00

—
Out of stock

17

BUSH, SOLID

90381-18N51-00

—
Out of stock

18

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

19

STEERING KNUCKLE ASSY (RIGHT)

8HG-23502-00-00

—
Out of stock

20

BUSH, SOLID

90381-25115-00

1
Out of stock

21

BUSH, SOLID

90381-32001-00

1
Out of stock

22

BUSH, SOLID

90381-15N50-00

—
Out of stock

23

BUSH, SOLID

90381-18N51-00

—
Out of stock

24

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

25

COLUMN, SKI ASSY

8HG-23803-00-00

—
Out of stock

26

BUSH, BIMETAL FORMED

90384-16N51-00

—
Out of stock

27

ARM, OUTSIDE 1

8FA-23851-00-00

—
Out of stock

28

ARM, OUTSIDE 2

8FA-23852-00-00

—
Out of stock

29

BOLT, HEXAGON SOCKET HEAD

90110-08104-00

—
Out of stock

30

NUT, SELF-LOCKING

95602-08200-00

—
Out of stock

31

CAP, CASE

3YK-22472-40-00

—
Out of stock

32

FRONT UPPER ARM COMP.

8HG-23540-00-00

—
Out of stock

33

BUSH, SOLID

90381-15N50-00

—
Out of stock

34

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

35

BOLT, FLANGE

90105-10230-00

—
Out of stock

36

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

37

COLLAR

90387-10099-00

—
Out of stock

38

WASHER, PLATE

90201-10052-00

—
Out of stock

39

BOLT

90109-10056-00

—
Out of stock

40

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

41

WASHER, PLATE

90201-10052-00

—
Out of stock

42

WASHER

90209-15N50-00

—
Out of stock

43

FRONT LOWER ARM COMP. (LEFT)

8HG-23570-00-00

—
Out of stock

44

BUSH, SOLID

90381-16N51-00

—
Out of stock

45

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

46

FRONT LOWER ARM COMP. (RIGHT)

8HG-23580-00-00

—
Out of stock

47

BUSH, SOLID

90381-16N51-00

—
Out of stock

48

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

49

BOLT, FLANGE

90105-12078-00

—
Out of stock

50

NUT, SELF-LOCKING

95602-12200-00

—
Out of stock

51

COLLAR

90387-12054-00

—
Out of stock

52

WASHER, PLATE(8CJ)

90201-120T5-00

—
Out of stock

53

BOLT, UNION

90401-10045-00

—
Out of stock

54

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

55

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

56

WASHER, PLATE

90201-10052-00

—
Out of stock

57

WASHER

90209-15N50-00

—
Out of stock

58

ABSORBER ASSY 1

8HG-2376A-00-00

—
Out of stock

59

BUSH, BIMETAL FORMED

90384-15N51-00

—
Out of stock

60

DAMPER, BUSH B

8FA-2331R-00-00

—
Out of stock

61

LABEL, WARNING

4AA-22259-60-00

—
Out of stock

62

BOLT, WASHER BASED (4K0)

90105-10169-00

—
Out of stock

63

BOLT, FLANGE

90105-10288-00

—
Out of stock

64

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

65

COLLAR

90387-10N59-00

—
Out of stock

66

WASHER, PLATE

90201-10052-00

—
Out of stock

67

BAR, STABILIZER FRONT

8FG-2386E-10-00

—
Out of stock

68

BUSH, STABILIZER FRONT

8FG-2386G-00-00

—
Out of stock

69

ARM, STABILIZER

8FG-2386L-00-00

—
Out of stock

70

JOINT, STABILIZER 1

8ES-2385L-00-00

—
Out of stock

71

BOLT

90101-06046-00

—
Out of stock

72

NUT, U FLANGE

95604-06200-00

—
Out of stock

73

BOLT, FLANGE(4FM)

95814-08030-00

—
Out of stock

74

NUT, U FLANGE(4KG)

95604-08200-00

—
Out of stock
