2011 Yamaha Apex (RX10PAR) Headlight Diagram

← All diagrams

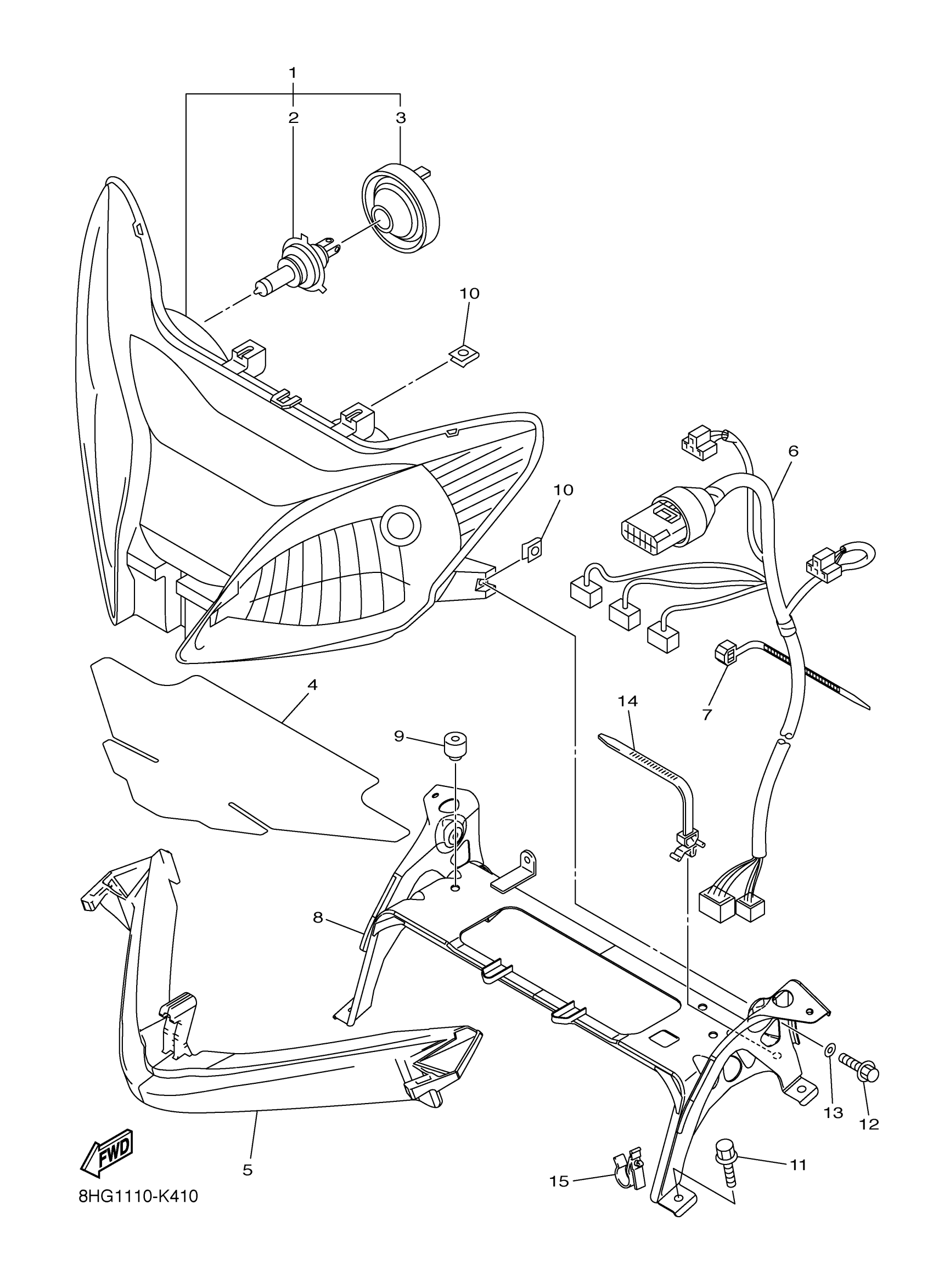

Find the part on the Headlight diagram for your 2011 Yamaha Apex (RX10PAR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Yamaha Apex (RX10PAR) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSY

8FP-84310-00-00

1

$519.25

In stock

2

BULB, HEADLIGHT

8FP-84314-00-00

1

$35.82

In stock

3

COVER, SOCKET

5GJ-84397-00-00

1
Out of stock

4

INSULATOR 1

8HG-8399N-00-00

1

$7.18

In stock

5

DAMPER, HEADLIGHT 1

8FP-84366-00-00

—

$94.06

In stock

6

CORD, HEADLIGHT

8HG-84359-00-00

—

$93.83

In stock

7

CLAMP

90464-13077-00

1

$6.68

In stock

8

STAY, HEADLIGHT 1

8HG-84118-00-00

—

$277.46

In stock

9

STOPPER, MAIN STAND

1UJ-27114-00-00

—

$6.11

In stock

10

NUT, SPRING

90183-06100-00

1
Out of stock

11

BOLT, FLANGE

95817-06016-00

1

$1.49

In stock

12

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

CLAMP(2TV)

90464-10112-00

1

$6.18

In stock

15

CLAMP

90464-25007-00

1

$1.78

In stock
← Handle Switch Lever Instrument Panel →
