2003 Yamaha RX-1 Mountain (RX10MH) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2003 Yamaha RX-1 Mountain (RX10MH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

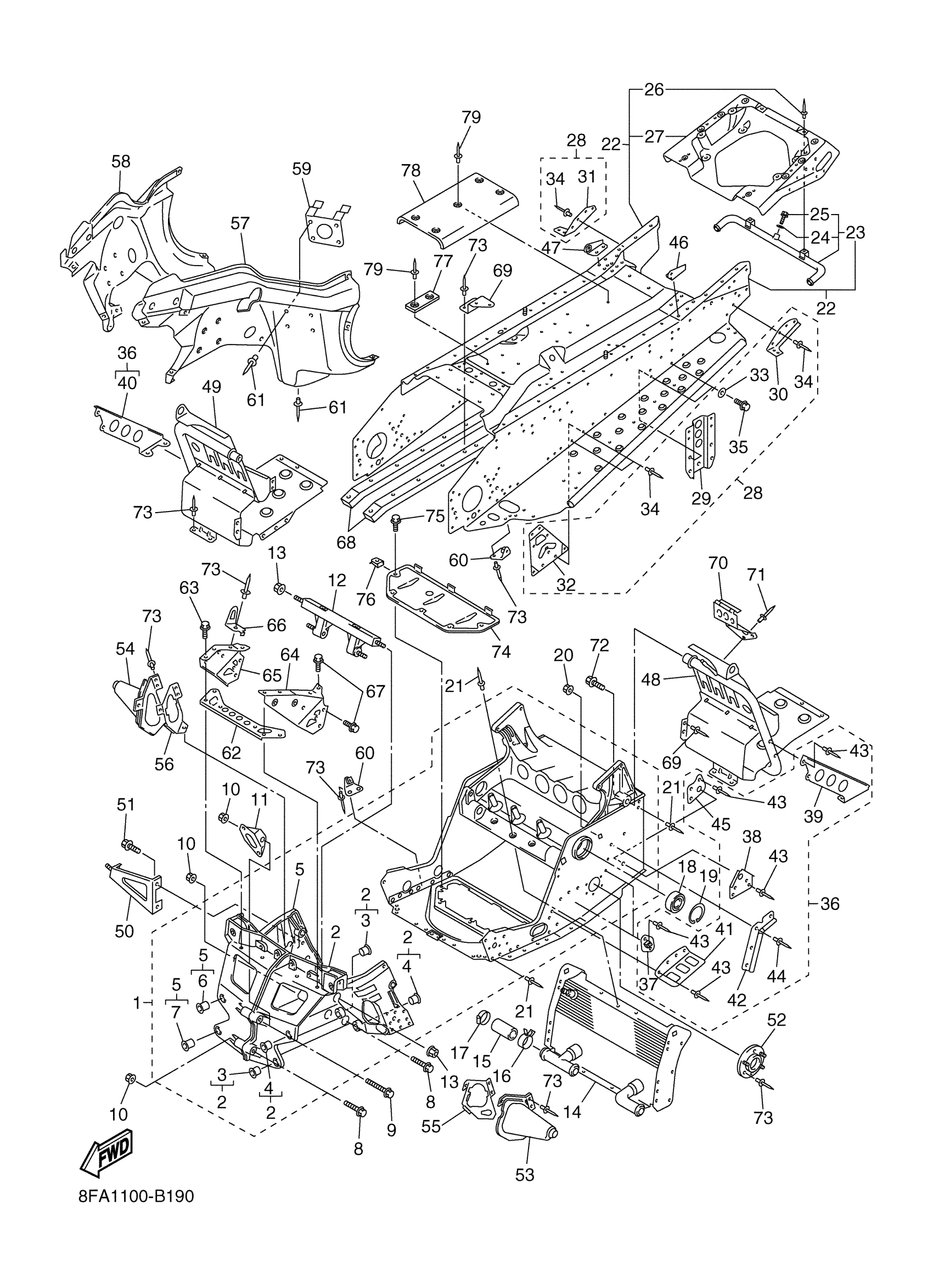

2003 Yamaha RX-1 Mountain (RX10MH) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FRAME COMP.

99999-03543-00

1
Out of stock

2

BULKHEAD

8FA-W2197-13-00

1
Out of stock

3

BUSH, SOLID

90381-15001-00

1
Out of stock

4

BUSH, SOLID

90381-16004-00

1
Out of stock

5

BULKHEAD 2

99999-03545-00

1
Out of stock

6

BUSH, SOLID

90381-15001-00

1
Out of stock

7

BUSH, SOLID

90381-16004-00

1
Out of stock

8

BOLT, FLANGE

95817-08060-00

1
Out of stock

9

BOLT, WASHER BASED

90105-084A1-00

1
Out of stock

10

NUT, SELF-LOCKING

90185-08169-00

1
Out of stock

11

BRACKET, REGULATOR

8FA-2128A-01-00

—
Out of stock

12

BRACKET, STEERING 1

8FG-21947-00-00

1
Out of stock

13

NUT, SELF-LOCKING(JN5)

95607-10200-00

1
Out of stock

14

HEAT EXCHANGER ASSY

8FA-12440-00-00

1
Out of stock

15

HOSE 7

8FA-12551-00-00

1
Out of stock

16

CLIP (8M6)

90467-28046-00

—
Out of stock

17

HOSE CLAMP ASSY

90450-35001-00

—
Out of stock

18

BEARING

93306-20650-00

—
Out of stock

19

CIRCLIP(MF1)

99009-62500-00

—
Out of stock

20

NUT, SELF-LOCKING

90185-08169-00

1
Out of stock

21

RIVET, BLIND

90267-47195-00

—
Out of stock

22

REAR FRAME COMP.

8FA-21950-09-00

1
Out of stock

23

HEAT EXCHANGER ASSY 4

8FA-1241A-00-00

—
Out of stock

24

WASHER, SEAL (7G5)

90210-06006-00

—
Out of stock

25

BOLT, FLANGE

95817-06016-00

—
Out of stock

26

RIVET, BLIND

90267-47195-00

—
Out of stock

27

REINEFORCEMENT, FRAME REAR 1

8FA-W2199-10-00

—
Out of stock

28

PANEL, SUB-FRAME KIT

8FA-W2196-00-00

1
Out of stock

29

BRACKET, RR.TRACK SUSPENTION 1

8FA-21944-00-00

—
Out of stock

30

PATCH 3

8FA-21963-00-00

—
Out of stock

31

PATCH 4

8FA-21964-00-00

—
Out of stock

32

. PATCH 5

8FA-21965-00-00

1
Out of stock

33

WASHER, PLATE(8CM)

90201-100S0-00

—
Out of stock

34

RIVET, BLIND

90267-47195-00

—
Out of stock

35

BOLT, FLANGE(4BD)

95817-10022-00

—
Out of stock

36

FRAME CONNECTION KIT

8FA-W2195-00-00

1
Out of stock

37

BRACKET, CHAIN HOUSING

8CR-21939-01-00

—
Out of stock

38

BRACKET, MAIN TRACK 1

8CR-21943-01-00

—
Out of stock

39

BRACKET, 5

8FA-2196M-00-00

—
Out of stock

40

BRACKET, 6

8FA-2197M-00-00

—
Out of stock

41

. COVER 2

8FA-2198G-00-00

1
Out of stock

42

CLAMP, WIREHARNESS

8FA-21999-00-00

—
Out of stock

43

RIVET, BLIND

90267-47195-00

—
Out of stock

44

RIVET, BLIND

90267-48018-00

—
Out of stock

45

BRACKET, MAIN TRACK 2

8FA-21953-00-00

—
Out of stock

46

BRACKET 1

8FA-2194X-00-00

—
Out of stock

47

BRACKET 2

8FA-2195X-00-00

—
Out of stock

48

FOOTREST COMP. 1

8FG-21960-00-00

1
Out of stock

49

FOOTREST COMP. 2

8FG-21970-00-00

—
Out of stock

50

BRACKET, OIL TANK 1

8FA-2193E-00-00

—
Out of stock

51

BOLT, FLANGE

95817-08014-00

—
Out of stock

52

HOUSING, REINF SUB-ASSY(L.H)

8EK-21920-01-00

—
Out of stock

53

COVER 1

8FA-2198F-00-00

1
Out of stock

54

COVER 3

8FA-2198J-00-00

—
Out of stock

55

PLATE, STRG BRACKET 1

8FA-2195E-00-00

—
Out of stock

56

PLATE, STRG BRACKET 2

8FA-2195F-00-00

—
Out of stock

57

FRAME UNDER 1

8FA-2196A-00-00

—
Out of stock

58

FRAME, UNDER 2

8FA-2196E-01-00

—
Out of stock

59

BRACKET, GUARD FITTING

8FA-21972-01-00

—
Out of stock

60

BRACKET 3

8FA-2196F-00-00

—
Out of stock

61

RIVET, BLIND

90267-48018-00

—
Out of stock

62

BUMPER, FRONT 2

8FA-77512-00-00

—
Out of stock

63

BOLT, FLANGE

95817-06012-00

—
Out of stock

64

BRACKET, FRONT

8FA-21949-00-00

—
Out of stock

65

BRACKET, FRONT BUMPER

8FA-21959-00-00

—
Out of stock

66

STAY 1

8FA-77125-00-00

—
Out of stock

67

BOLT, FLANGE(JN5)

95817-08016-00

—
Out of stock

68

PROTECTOR, FRAME

8FA-21978-00-00

1
Out of stock

69

BRACKET 7

8FA-2197N-01-00

—
Out of stock

70

HOOK

8FA-21973-00-00

—
Out of stock

71

RIVET, BLIND

90267-47195-00

—
Out of stock

72

BOLT, FLANGE(8AB)

95817-08020-00

—
Out of stock

73

RIVET, BLIND

90267-47195-00

—
Out of stock

74

PROTECTOR, FRAME

8FA-2197E-01-00

1
Out of stock

75

BOLT(3XP)

90109-065F3-00

—
Out of stock

76

NUT, SPRING(4ES)

90183-06069-00

1
Out of stock

77

SPACER

8FA-21998-00-00

—
Out of stock

78

SHIELD, HEAT

8FG-23892-00-00

—
Out of stock

79

RIVET, BLIND (8L0)

90267-48059-00

—
Out of stock
