2003 Yamaha RX-1 Mountain (RX10MH) Alternate Reverse Kit Diagram

← All diagrams

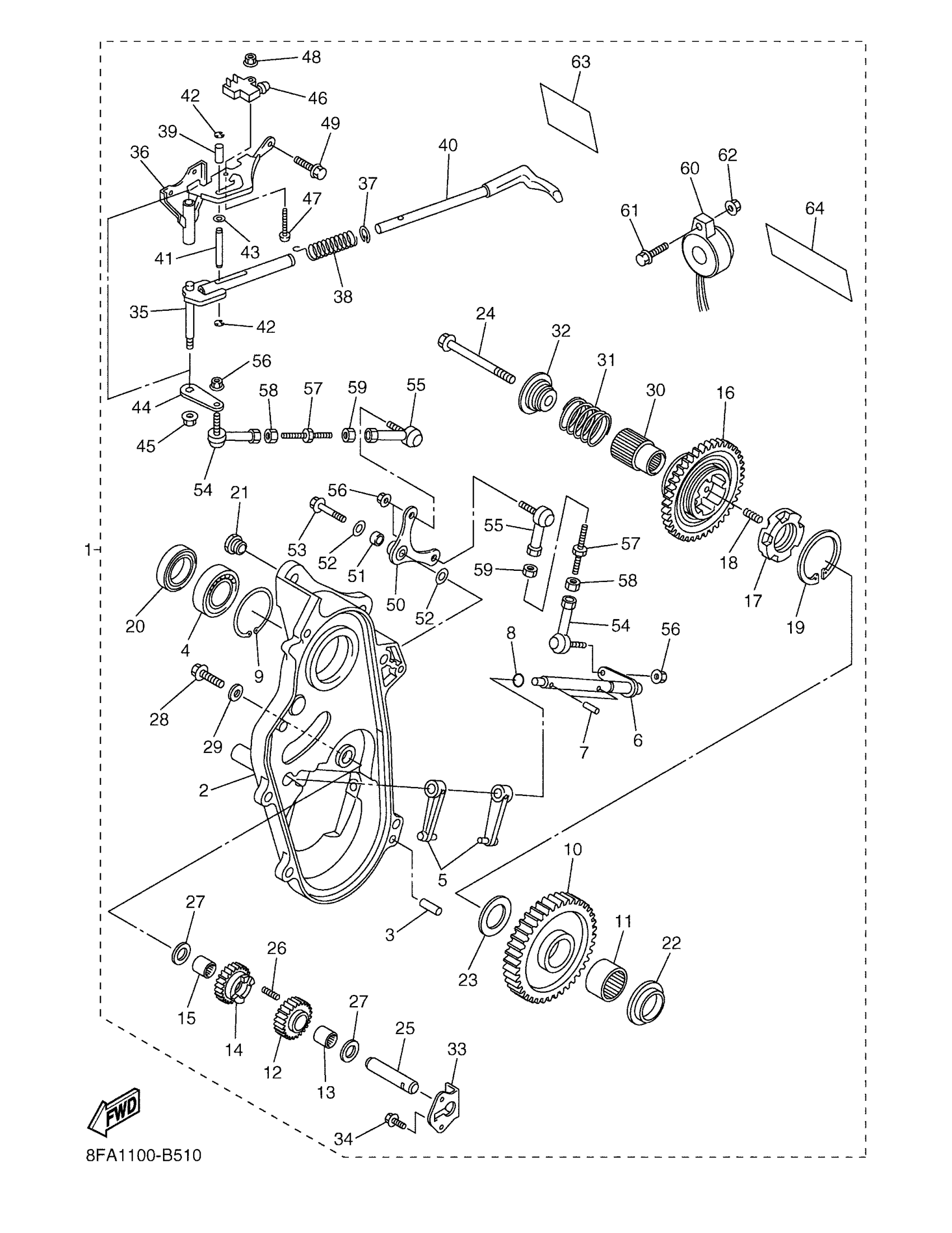

Find the part on the Alternate Reverse Kit diagram for your 2003 Yamaha RX-1 Mountain (RX10MH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Yamaha RX-1 Mountain (RX10MH) Alternate Reverse Kit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REVERSE GEAR KIT

8EP-W4759-20-00

—
Out of stock

1

REVERSE GEAR KIT

8FA-W4759-00-00

1
Out of stock

2

CAP, HOUSING

8ER-47543-01-00

—
Out of stock

3

PIN, DOWEL (168)

93606-20044-00

1
Out of stock

4

BEARING

93306-20532-00

1
Out of stock

5

FORK, SHIFT 1

8ER-18511-00-00

—
Out of stock

6

SHAFT

8ER-18197-10-00

1
Out of stock

7

PIN, SPRING(8DA)

91609-50022-00

1
Out of stock

8

O-RING (328)

93210-12131-00

1
Out of stock

9

CIRCLIP(26H)

99009-52500-00

1
Out of stock

10

SPROCKET, CHAIN DRIVEN

8FB-47587-80-00

1
Out of stock

10

SPROCKET, CHAIN DRIVEN

8FB-47587-90-00

—
Out of stock

11

BEARING, CYLINDRICAL(8DA)

93317-33179-00

1
Out of stock

12

SPROCKET, DRIVE

8FB-17692-00-00

1
Out of stock

13

BEARING, CYLINDRICAL(8DA)

93317-21578-00

1
Out of stock

14

REVERSE GEAR SUB-ASSY 1 (RGEAR

8CW-W1714-00-00

—
Out of stock

15

BEARING, CYLINDRICAL(8DA)

93317-21578-00

1
Out of stock

16

GEAR, REVERSE WHEEL 1

8CW-17243-00-00

—
Out of stock

17

DOG, TRANSMISSION SHIFT

8CW-17492-00-00

—
Out of stock

18

SPRING, COMPRESSION(8DA)

90501-066J5-00

—
Out of stock

19

CIRCLIP(8DA)

93440-39175-00

—
Out of stock

20

OIL SEAL

93102-35473-00

—
Out of stock

21

NUT(8CJ)

90179-10679-00

—
Out of stock

22

COLLAR(8DA)

90387-2008G-00

—
Out of stock

23

WASHER, PLATE(8DA)

90201-320S3-00

—
Out of stock

24

BOLT, FLANGE(7LU)

95817-10070-00

—
Out of stock

25

SHAFT, 1

8CW-1761A-00-00

—
Out of stock

26

SPRING COMPRESSION278185450000

90501-06022-00

—
Out of stock

27

WASHER PLATE (3L6)

90201-16245-00

—
Out of stock

28

BOLT, FLANGE

95817-06016-00

—
Out of stock

29

WASHER, SEAL (7G5)

90210-06006-00

—
Out of stock

30

JOURNAL 1

8CW-47571-00-00

—
Out of stock

31

SPRING, COMPRESSION(8FA1)

90501-260A0-00

—
Out of stock

32

COLLAR

8CW-47564-01-00

—
Out of stock

33

PLATE

8CW-47591-00-00

—
Out of stock

34

BOLT, FLANGE

95817-06016-00

—
Out of stock

35

ARM, SHIFT

99999-03546-00

—
Out of stock

36

GUIDE, PLATE STOPPER

8ER-18161-00-00

—
Out of stock

37

CIRCLIP(13H)

99009-18400-00

—
Out of stock

38

SPRING, COMPRESSION (8FA1)

90501-130A0-00

—
Out of stock

39

COLLAR (8FA1)

90387-06059-00

—
Out of stock

40

KNOB, LEVER

8ER-18174-00-00

—
Out of stock

41

PIN (8FA1)

90249-06002-00

—
Out of stock

42

CIRCLIP (J10)

93410-06053-00

—
Out of stock

43

WASHER, PLATE (8U7)

90201-067F9-00

—
Out of stock

44

. PLATE, SHIFT ARM

8ER-1811A-00-00

1
Out of stock

45

NUT, SELF-LOCKING

90185-08169-00

—
Out of stock

46

SWITCH

J51-82817-00-00

—
Out of stock

47

SCREW, BINDING

98907-04020-00

—
Out of stock

48

NUT, U (7LY)

95617-04100-00

—
Out of stock

49

BOLT, FLANGE(8AB)

95817-08020-00

—
Out of stock

50

LEVER

8ER-18198-00-00

—
Out of stock

51

COLLAR

90387-06197-00

—
Out of stock

52

WASHER, PLATE(36Y)

90201-063J2-00

—
Out of stock

53

BOLT, FLANGE

95817-06030-00

—
Out of stock

54

JOINT, UNIVERSAL 2

J45-23845-00-00

—
Out of stock

55

JOINT 2

88T-18157-00-00

—
Out of stock

56

NUT,SELF-LOCKING

95607-06200-00

—
Out of stock

57

ROD, SHIFT

26H-18115-00-00

—
Out of stock

58

NUT, HEXAGON

95314-06600-00

—
Out of stock

59

NUT (2H9)

90170-06228-00

—
Out of stock

60

BUZZER

8CW-83383-00-00

—
Out of stock

61

BOLT(3JK)

97027-05020-00

—
Out of stock

62

NUT, FLANGE(3GM)

95707-05500-00

—
Out of stock

63

LABEL, WARNING 3

8ER-77763-E0-00

—
Out of stock

64

LABEL, WARNING 1

8FB-77761-E0-00

—
Out of stock
