2005 Yamaha RX-1 (RX10K) Intake Diagram

← All diagrams

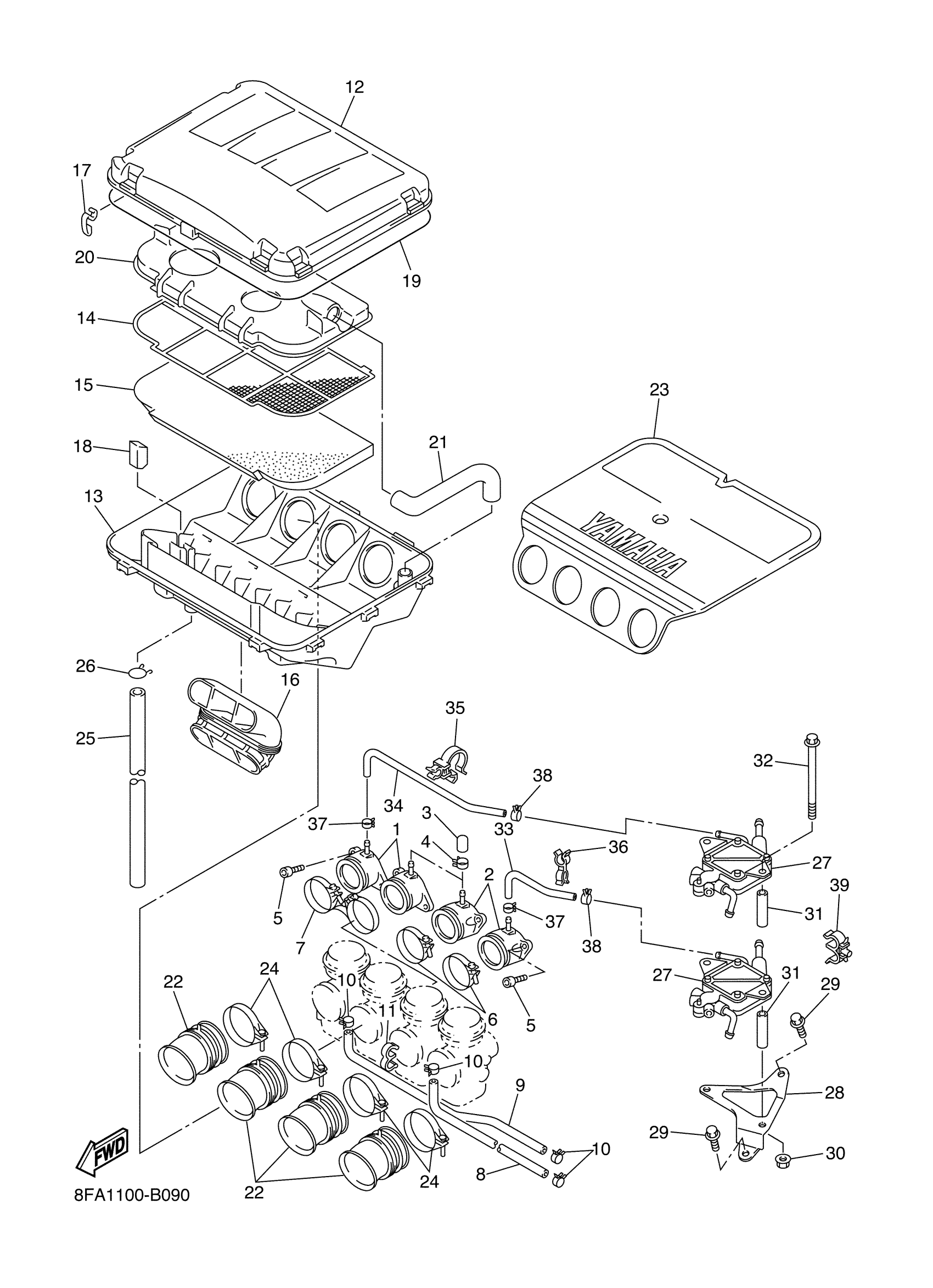

Find the part on the Intake diagram for your 2005 Yamaha RX-1 (RX10K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Yamaha RX-1 (RX10K) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 1

8FA-13586-00-00

1
Out of stock

2

JOINT, CARBURETOR 2

8FA-13596-00-00

1
Out of stock

3

PLUG, BLIND

16G-13569-00-00

1
Out of stock

4

CLIP (3G0)

90467-10039-00

1
Out of stock

5

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

6

BAND

5EL-13474-00-00

1

$9.22

In stock

7

BAND

8FA-13474-00-00

1
Out of stock

8

HOSE

8FA-14294-00-00

1

$15.92

In stock

9

PIPE

8FA-14298-00-00

1

$13.45

In stock

10

CLIP

90467-11028-00

1

$5.14

In stock

11

CLAMP(6M7)

90464-09M31-00

1

$6.23

In stock

12

SILENCER, INTAKE 1

8FA-14431-00-00

—
Out of stock

13

SILENCER, INTAKE 2

8FA-14441-00-00

1
Out of stock

14

PLATE, ELEMENT

8FA-14472-00-00

1
Out of stock

15

ELEMENT, AIR CLEANER

8FA-14451-01-00

1

$33.35

In stock

16

DUCT

8FA-14437-00-00

—

$36.52

In stock

17

HOOK

8FA-14436-00-00

—

$5.08

In stock

18

DAMPER 1

8FA-14425-00-00

1
Out of stock

19

SEAL

8FA-14452-00-00

1
Out of stock

20

COVER 1

8FA-14417-00-00

1
Out of stock

21

PIPE

8FA-14419-00-00

1
Out of stock

22

WEIGHT

8FA-14453-01-00

—
Out of stock

23

COVER, CARBURETOR 1

8FA-14283-00-00

—

$55.15

In stock

24

HOSE CLAMP ASSY

90450-63002-00

—

$16.49

In stock

25

PIPE, DRAIN

8FA-1443E-00-00

—

$9.09

In stock

26

CLIP

90467-100A1-00

—
Out of stock

27

FUEL PUMP ASSY

8FA-13910-00-00

—

$154.43

In stock

28

BRACKET, FUEL PUMP

8FA-24491-00-00

—

$4.57

In stock

29

BOLT, FLANGE

95817-06016-00

—

$1.49

In stock

30

NUT, FLANGE(4MV)

95707-06500-00

—

$0.78

In stock

31

COLLAR (878)

90387-08262-00

—

$9.02

In stock

32

BOLT, FLANGE(4NM)

95027-06085-00

—

$6.85

In stock

33

HOSE, AIR

8FA-13895-00-00

1
Out of stock

34

HOSE, AIR 2

8FA-13892-00-00

1
Out of stock

35

CLAMP

90464-26245-00

1
Out of stock

36

CLAMP(4FU)

90464-12182-00

—

$3.37

In stock

37

CLIP(41W)

90467-08092-00

—

$6.86

In stock

38

CLIP (8A1)

90467-09026-00

—

$2.72

In stock

39

CLAMP

90464-11007-00

—

$3.54

In stock
