2017 Yamaha Apex (RX10HL) Primary Sheave Diagram

← All diagrams

Find the part on the Primary Sheave diagram for your 2017 Yamaha Apex (RX10HL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

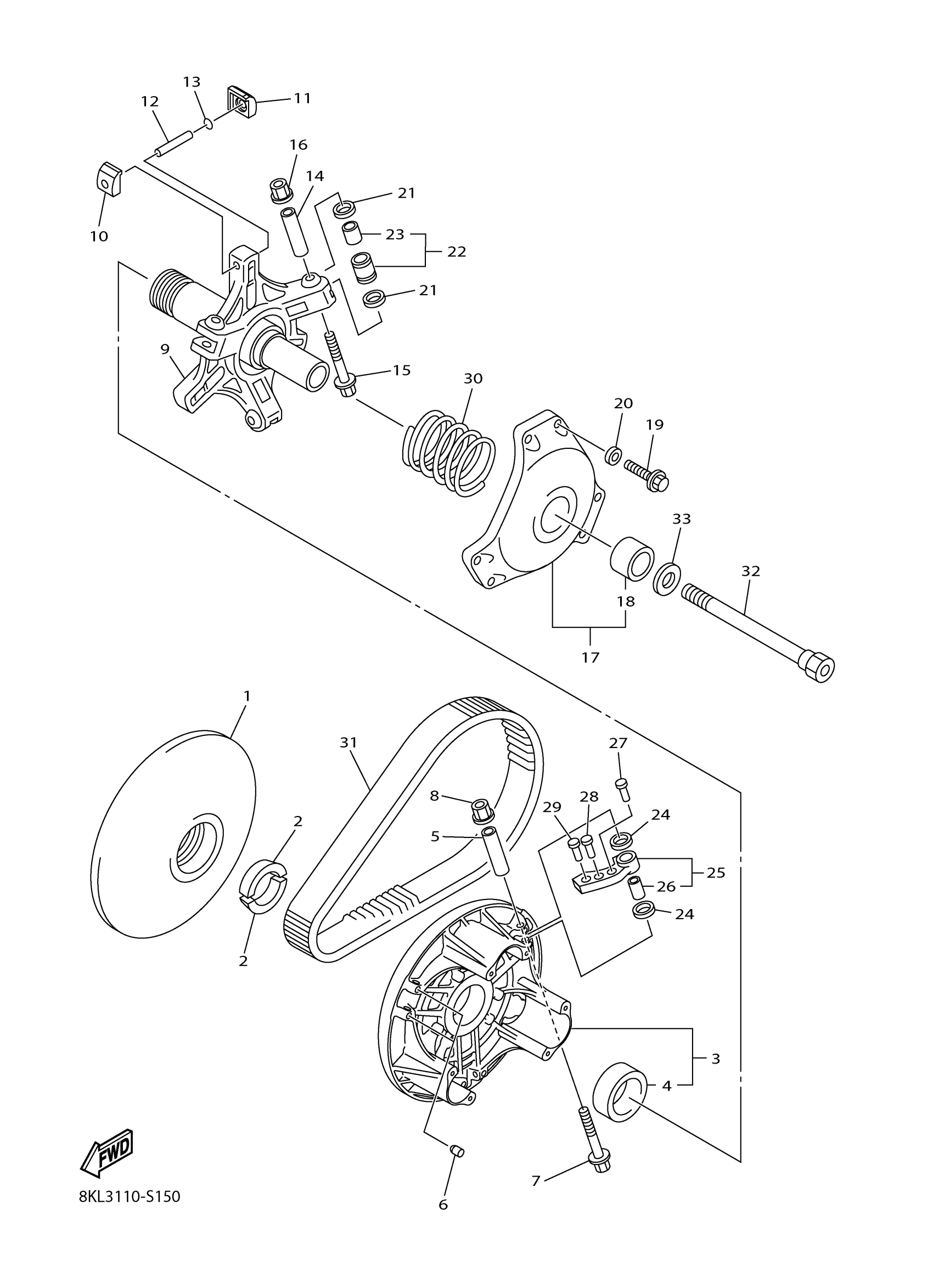

2017 Yamaha Apex (RX10HL) Primary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHEAVE, PRIMARY FIXED

8FA-17611-01-00

1
Out of stock

2

STOPPER

8V0-17639-00-00

1
Out of stock

3

PRIMARY SLIDING SHEAVE COMP.

8FP-17620-00-00

1
Out of stock

4

BUSH, BIMETAL FORMED(8AS)

90384-41242-00

1
Out of stock

5

COLLAR

90387-0514T-00

1
Out of stock

6

BOLT, SET

90113-05041-00

1
Out of stock

7

BOLT, WASHER BASED(88R)

90105-05644-00

1
Out of stock

8

NUT, S/L FLANGE

95607-05200-00

1
Out of stock

9

SPIDER COMPLETE

8ES-17640-02-00

—
Out of stock

10

SLIDER

8BW-17653-00-00

1
Out of stock

11

SLIDER

8ES-17653-00-00

1
Out of stock

12

PIN, SPRING (7F7)

91609-50032-00

1
Out of stock

13

DAMPER, SLIDER

8ES-17655-00-00

1
Out of stock

14

COLLAR

90387-0514U-00

1
Out of stock

15

BOLT, WASHER BASED(88R)

90105-05644-00

1
Out of stock

16

NUT, S/L FLANGE

95607-05200-00

1
Out of stock

17

PRIMARY SHEAVE CAP COMP.

8DF-17630-00-00

—
Out of stock

18

BUSH, SOLID(8CP)

90380-28237-00

—
Out of stock

19

BOLT, HEXAGON

97017-06030-00

—
Out of stock

20

WASHER(6TA)

92907-06600-00

—
Out of stock

21

WASHER, PLATE(8BV)

90202-09227-00

—
Out of stock

22

ROLLER, COMP

8FG-17624-00-00

—
Out of stock

23

BUSH

90386-09001-00

—
Out of stock

24

WASHER, PLATE(88R)

90202-08204-00

—
Out of stock

25

WEIGHT COMP

8HG-17605-00-00

—
Out of stock

26

BUSH

90386-08002-00

—
Out of stock

27

RIVET

90269-06006-00

—
Out of stock

28

RIVET, COUNTERSUNK (8AB1)

90261-06033-00

—
Out of stock

29

RIVET

90266-06002-00

—
Out of stock

30

SPRING, COMPRESSIO

90501-570A0-00

—
Out of stock

31

V-BELT

8DN-17641-01-00

1
Out of stock

32

BOLT (L=156.5MM)

8V0-17647-10-00

—
Out of stock

33

WASHER(JN5)

92907-16100-00

—
Out of stock
