2017 Yamaha Apex (RX10HL) Intake 2 Diagram

← All diagrams

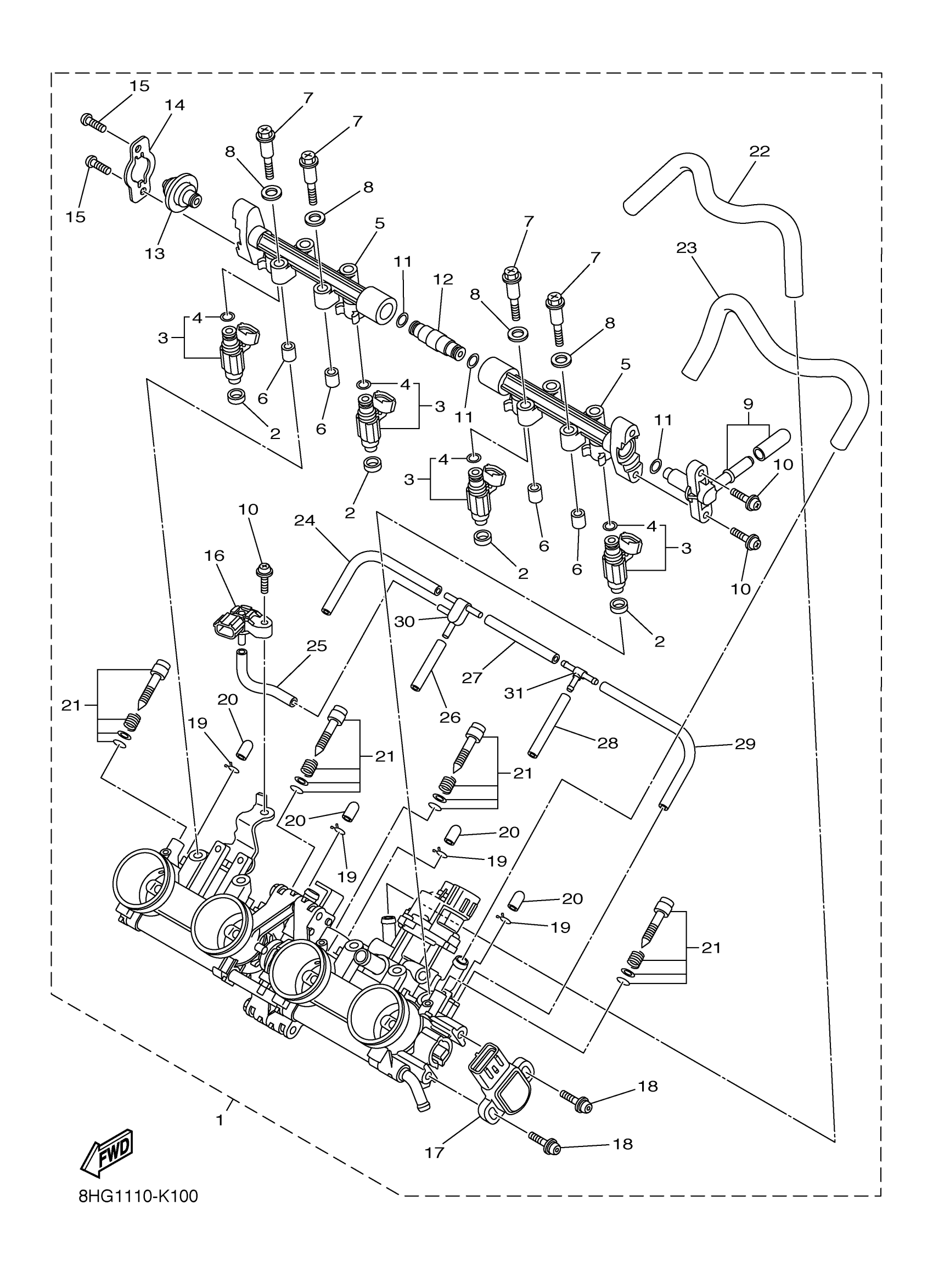

Find the part on the Intake 2 diagram for your 2017 Yamaha Apex (RX10HL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha Apex (RX10HL) Intake 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

THROTTLE BODY ASSY

8HG-13750-00-00

—

$1,493.99

In stock

2

GASKET, MANIFOLD

8FP-13556-00-00

1

$12.27

In stock

3

INJECTOR

8FP-13761-10-00

—

$236.11

In stock

4

O-RING

8FP-14147-00-00

1

$20.26

In stock

5

PIPE

8HG-13938-00-00

—

$77.71

In stock

6

COLLAR

8HG-14534-00-00

1

$27.02

In stock

7

BOLT 1

8HG-13573-00-00

—

$9.78

In stock

8

WASHER

8GL-13571-00-00

1

$3.37

In stock

9

NIPPLE

8HG-14251-00-00

—

$77.71

In stock

10

SCREW

2C0-14216-00-00

1

$3.03

In stock

11

O-RING

8HG-14561-00-00

1

$14.17

In stock

12

PIPE

8HG-13582-00-00

—

$62.06

In stock

13

DAMPER

5VK-13982-00-00

—

$49.71

In stock

14

PLATE

8HG-14243-00-00

—

$6.20

In stock

15

GASKET, EXHAUST

98507-05008-00

1

$2.69

In stock

16

SENSOR, PRESSURE

5S7-82380-00-00

—

$161.56

In stock

17

THROTTLE SENSOR AS

8GL-85885-01-00

—

$76.17

In stock

18

SCREW

8CC-14216-10-00

—

$7.12

In stock

19

CLIP, PIPE

8A7-14139-00-00

—

$6.80

In stock

20

CAP

895-14169-00-00

—

$4.02

In stock

21

PILOT SCREW SET

2C0-14105-00-00

—

$30.55

In stock

22

HOSE 3

8HG-13547-00-00

—

$64.26

In stock

23

HOSE, AIR 4

8HG-13548-00-00

—

$64.26

In stock

24

HOSE, AIR

8HG-13543-00-00

—

$10.09

In stock

25

HOSE, AIR 2

8GL-13892-00-00

—

$27.42

In stock

26

PIPE

8FP-14349-30-00

—

$4.15

In stock

27

PIPE

5JW-14349-10-00

—
Out of stock

28

PIPE

8FP-14349-20-00

—

$4.92

In stock

29

HOSE 2

8HG-13546-00-00

—

$10.09

In stock

30

CONNECTOR

5PW-1410F-00-00

—
Out of stock

31

. PIPE, JOINT 1

68V-24376-00-00

1

$15.04

In stock
