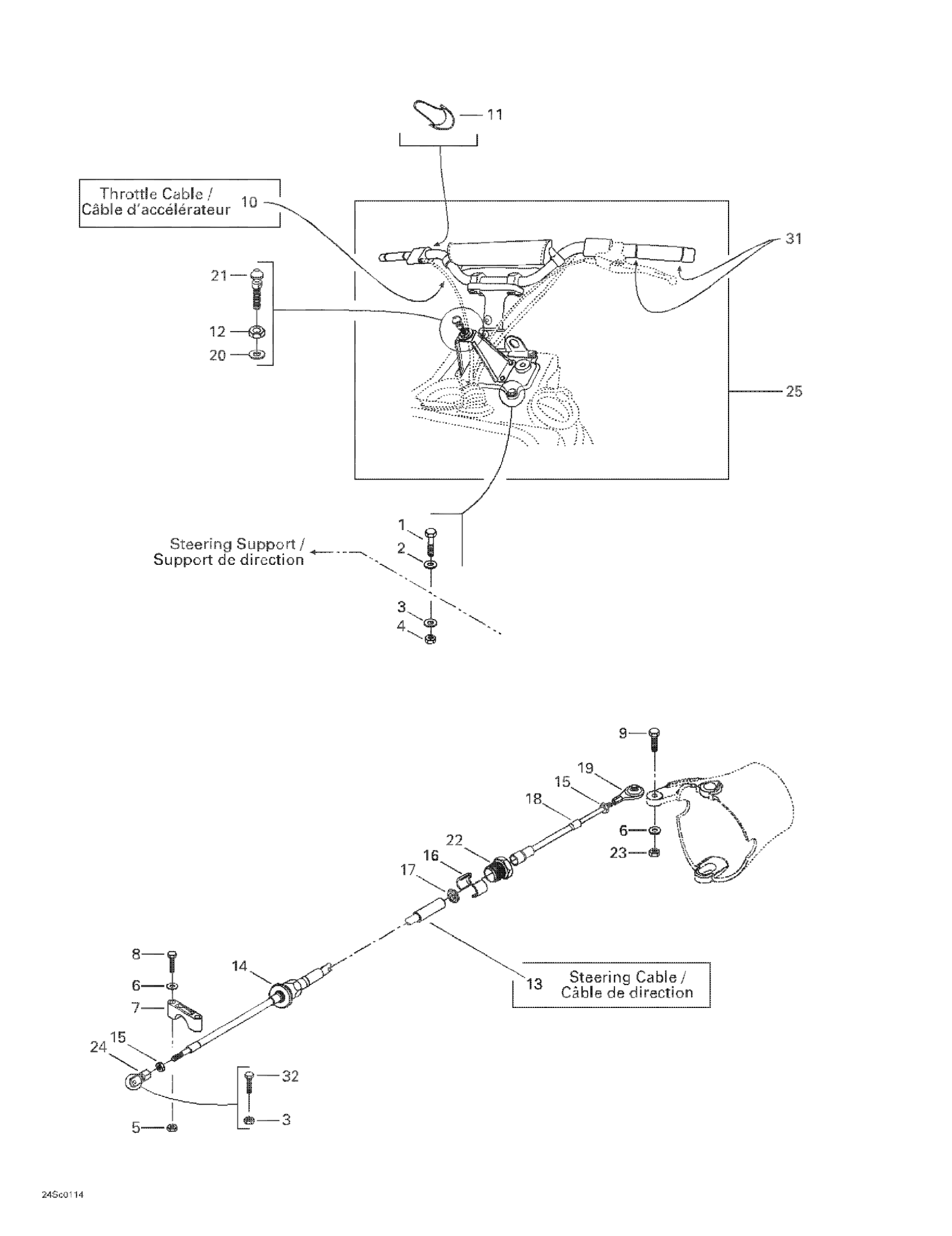

Sea-doo RX X, 5589, 2001 Steering System Diagram

#

Description
Price

1

Hex. Screw M8 X 35

207083560

$1.40

2

Stainless, Flat Washer 8 mm

234081600

$0.52

3

Flat Washer 8 mm, Stainless

234082600

$2.27

4

Hex. Elastic Nut M8

232581600

$1.43

5

Hex. Elastic Stop Nut M6

232561600

$1.06

6

Stainless Flat Washer M6

234061600

$0.28

7

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

8

Hex. Screw M6 x 60

207660060

Unavailable

9

Hex. Screw M6 X 35

207063560

$2.12

10

Throttle Cable Ass'y

289100071

Unavailable

11

Throttle Handle

277000214

Unavailable

12

Hex. Jam Nut M10

232100600

$2.12

13

Steering Cable Ass'y | Includes 13 - 15.

289100070

Unavailable

14

Ajustment Knob

277000782

$18.63

15

Hex. Nut 1/4"-28

211100056

$0.64

16

Half Ring

277001527

$9.58

17

Rubber Washer

293830063

$1.73

18

Terminal Wiper

277000441

Unavailable

19

Ball Joint

289100069

Unavailable

20

Flat Washer 10 mm, Stainless

234002600

$2.12

21

LATCH STUD - Call your local BRP dealership

291000689

Unavailable

22

Steering Cable Lock This part replaces 277000784.

277001729

$11.96

23

Hex. Elastic Stop Nut M6

232561600

$1.06

24

Ball Joint

277001180

$32.06

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Hex. Screw M6 X 30

207163060

$1.43
