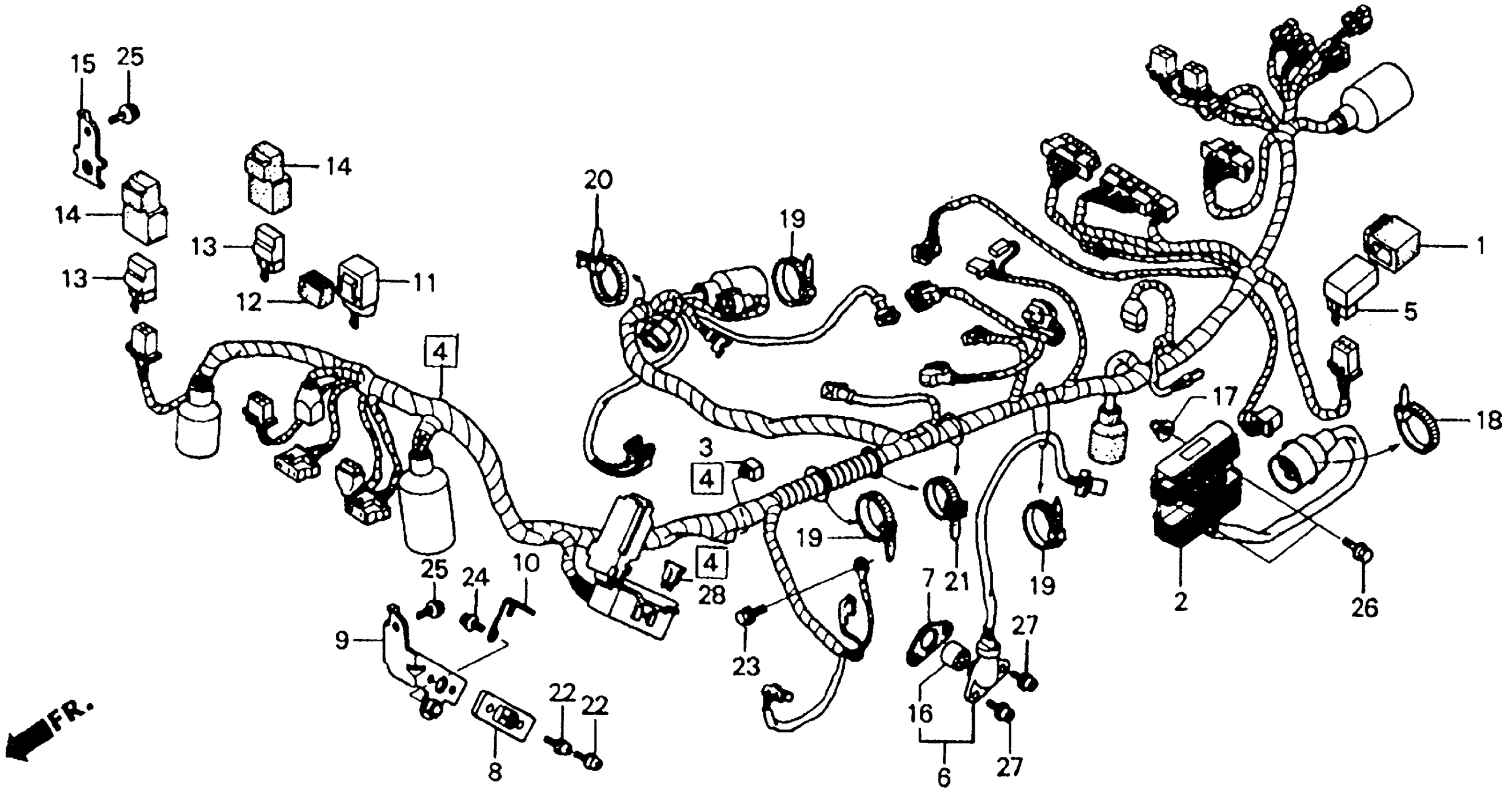

Honda RVF750RA (94) RC45, JPN, VIN# JH2RC450-RM000006 WIRE HARNESS Diagram

#

Description
Price

1

RUBBER, IGNITION CONTROL MODULE

30401-KE6-700

Unavailable

2

RECTIFIER ASSY., REGULATE

31600-MW4-003

Unavailable

3

RECTIFIER, SILICON

31700-196-000

$23.71

4

WIRE HARNESS

32100-MW4-670

Unavailable

5

CHECK UNIT, PILOT LAMP

37640-MB1-701

Unavailable

6

SENSOR ASSY., SPEED

37700-MW4-601

Unavailable

7

GASKET, SPEED SENSOR

37711-MW4-000

Unavailable

8

BRACKET, FUSE BOX

38216-MT4-000

Unavailable

9

STAY, FUSE BOX

38226-MW4-000

Unavailable

10

WIRE, FUSE BOX SETTING

38227-MW4-000

Unavailable

11

RELAY, TURN SIGNAL (MITSUBA)

38301-KK9-952

$65.61

12

SUSPENSION, TURN SIGNAL RELAY (MITSUBA)

38306-KK4-000

$2.80

13

RELAY, STARTER (MITSUBA)

38501-GN2-014

$44.57

14

SUSPENSION, STARTER RELAY (MITSUBA)

38506-GC7-611

$4.18

15

STAY, RELAY

38507-MW4-000

Unavailable

16

JOINT, SPEEDOMETER

44808-MR7-013

$8.96

17

NUT, CAP (6MM)

90304-438-000

$6.64

18

BAND, WIRE HARNESS

90620-SB2-003

$23.54

19

BAND, WIRE HARNESS

90650-MA6-720

$3.86

20

STRAP, CABLE (105MM) (BLACK)

90672-SB2-003

$5.23

21

BAND, WIRE HARNESS (150MM) (BLUE)

90676-SA8-003

$4.57

22

SCREW-WASHER (6X14) (NOT AVAILABLE)

93893-06014-00

Unavailable

23

BOLT, FLANGE (6X8)

96001-06008-07

$0.86

24

BOLT, FLANGE (6X10)

96001-06010-07

$1.48

25

BOLT, FLANGE (6X12)

96001-06012-07

Unavailable

26

BOLT, FLANGE (6X25)

96001-06025-00

$1.91

27

BOLT, SOCKET (6X16)

96600-06016-07

$1.58

28

FUSE, BLADE (10A)

98200-31000

$1.19

28

FUSE, BLADE (20A)

98200-32000

$1.19
