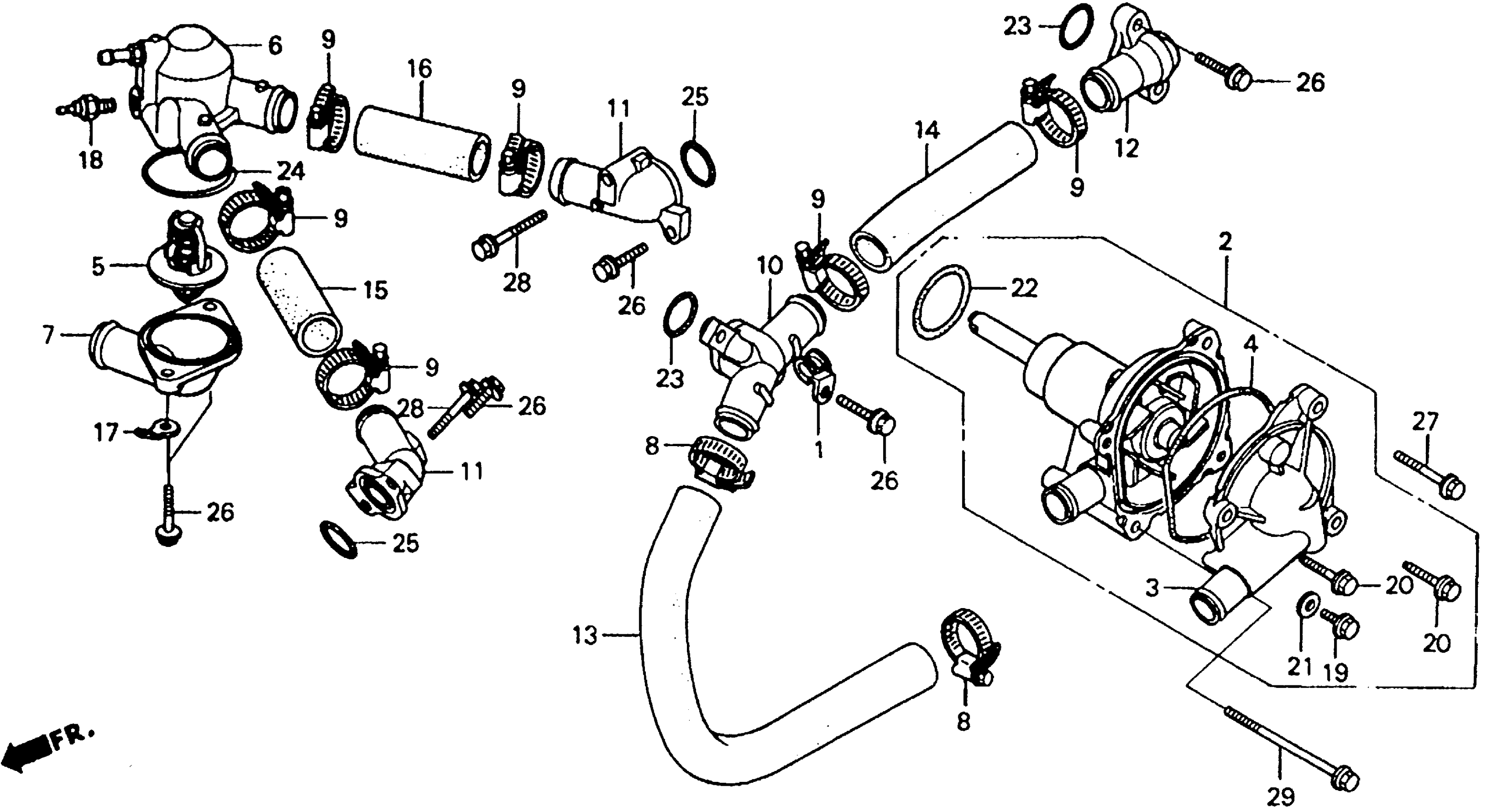

Honda RVF750RA (94) RC45, JPN, VIN# JH2RC450-RM000006 WATER PUMP Diagram

#

Description
Price

1

CLIP B, TUBE

16106-KW7-900

$2.80

2

WATER PUMP This part replaces 19200-MW4-000.

19200-MW4-010

Unavailable

2

WATER PUMP

19200-MW4-010

Unavailable

3

COVER, WATER PUMP

19220-MZ5-000

Unavailable

3

COVER, WATER PUMP This part replaces 19221-MZ5-305.

19220-MZ5-000

Unavailable

4

GASKET, WATER PUMP COVER

19226-ML7-000

$4.60

5

THERMOSTAT ASSY.

19300-ML7-003

$44.20

6

CASE ASSY., THERMOSTAT

19310-MW4-000

Unavailable

7

COVER, THERMOSTAT

19315-MW4-000

Unavailable

8

CLAMP, HOSE (24-32MM)

19516-ML7-691

$12.93

9

CLAMP, HOSE (22-29MM)

19517-ML7-691

$10.44

10

JOINT A, WATER

19522-MW4-000

$17.55

11

JOINT, WATER

19523-MT3-000

$12.42

12

JOINT B, WATER

19524-MW4-000

Unavailable

13

HOSE A, WATER This part replaces 19525-MW4-000.

19525-MBG-000

Unavailable

14

HOSE B, WATER

19526-MW4-000

Unavailable

15

HOSE, FR. CYLINDER HEAD WATER

19528-MW4-000

Unavailable

16

HOSE, RR. CYLINDER HEAD WATER

19529-MW4-000

Unavailable

17

CONNECTOR, GROUND

32152-MB3-000

$1.77

18

THERMO UNIT

37750-KV3-951

Unavailable

19

BOLT, FLANGE (6X12) (CT200)

90013-883-000

$1.41

20

BOLT, FLANGE (6X25)

90121-MV9-670

$2.71

21

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

22

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.67

23

O-RING (23X2.4)

91304-GC8-003

$2.80

24

O-RING (47.5X2)

91311-KE8-000

$2.17

25

O-RING (21.2X2.4) (ARAI)

91331-PC9-003

$2.92

26

BOLT, FLANGE (6X22)

96001-06022-00

$1.13

27

BOLT, FLANGE (6X35)

96001-06035-00

$1.28

28

BOLT, FLANGE (6X40)

96001-06040-00

$1.97

29

BOLT, FLANGE (6X75)

96001-06075-00

$2.03
