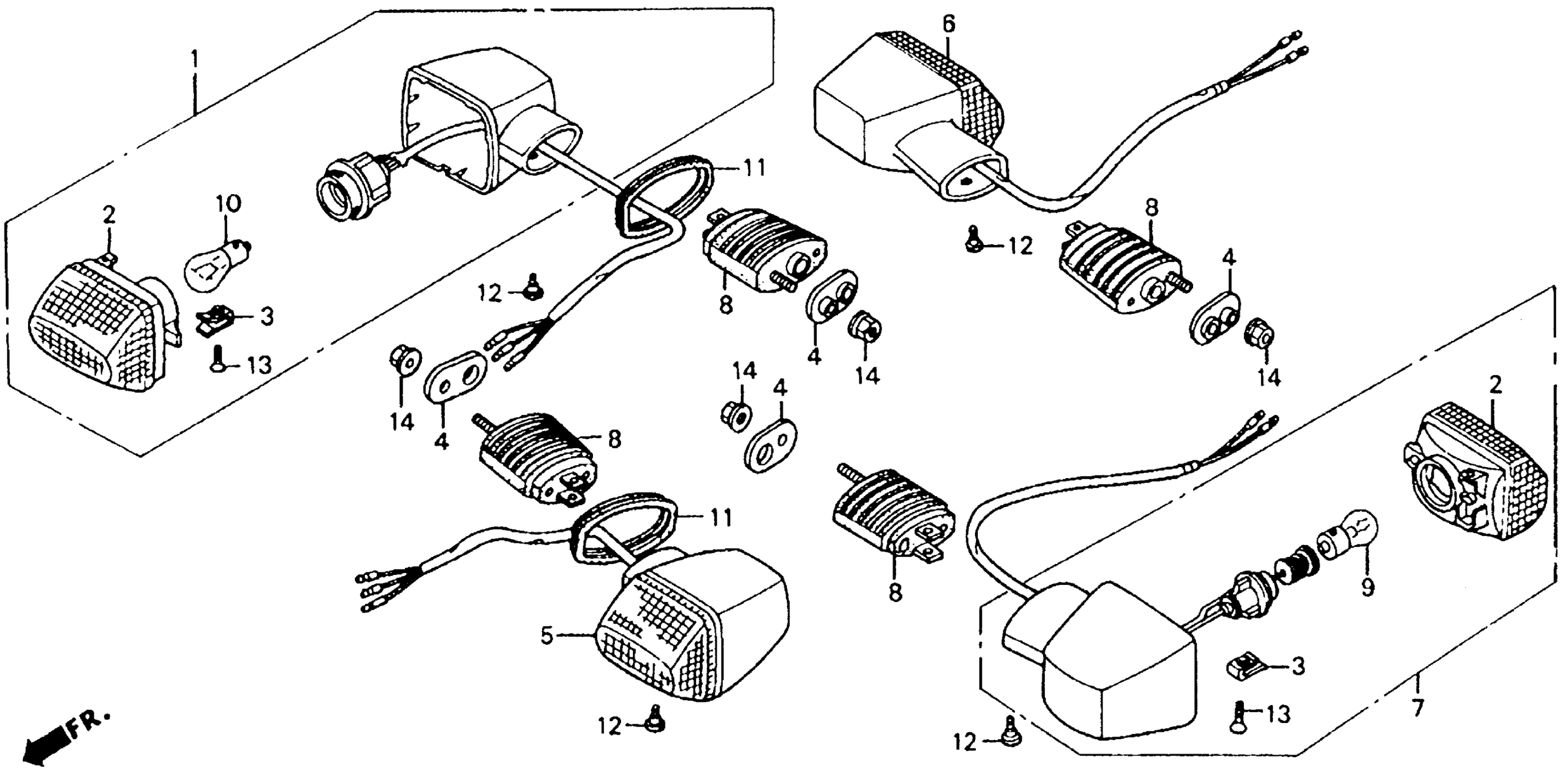

Honda RVF750RA (94) RC45, JPN, VIN# JH2RC450-RM000006 TURN SIGNAL Diagram

#

Description
Price

1

TURN SIGNAL ASSY., R. FR.

33400-MW0-670

Unavailable

2

LENS, TURN SIGNAL

33406-MB2-671

Unavailable

3

NUT, SPECIAL

33407-MB2-003

Unavailable

4

PLATE, TURN SIGNAL SETTING

33409-MW0-000

$6.78

5

TURN SIGNAL ASSY., L. FR.

33450-MW0-670

Unavailable

6

TURN SIGNAL ASSY., R. RR. (12V 23W)

33600-MR7-720

Unavailable

7

TURN SIGNAL ASSY., L. RR. (12V 23W)

33650-MR7-720

Unavailable

8

STAY, TURN SIGNAL

33691-MB2-003

Unavailable

9

BULB, TURN SIGNAL (12V 23W) (STANLEY)

34905-268-671

$2.86

10

BULB, TURN SIGNAL (12V23/8W) (1034HD) (STANLEY)

34905-425-671

$6.20

11

RUBBER, FR. TURN SIGNAL

64136-ML7-600

$11.20

12

SCREW, SPECIAL (6X8)

90380-MB2-000

$3.36

13

SCREW-WASHER (4X12) This part replaces 93700-04012-0G.

93891-04012-07

$1.18

13

SCREW-WASHER (4X12) This part replaces 93700-04012-1G.

93891-04012-07

$1.18

13

SCREW-WASHER (4X12)

93891-04012-07

$1.18

14

NUT, FLANGE (6MM)

94050-06000

$0.63
