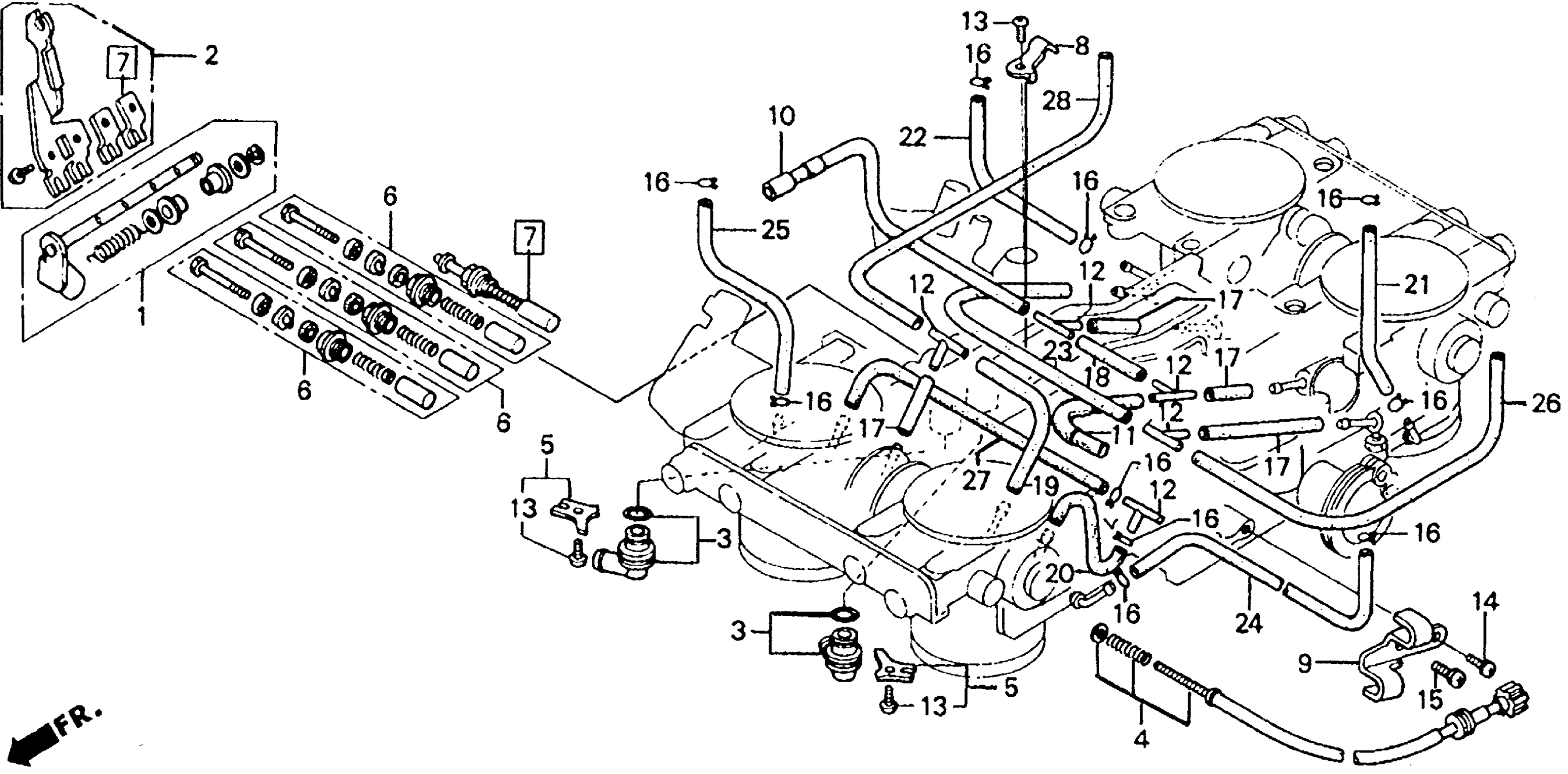

Honda RVF750RA (94) RC45, JPN, VIN# JH2RC450-RM000006 THROTTLE BODY COMPONENTS Diagram

#

Description
Price

1

SHAFT SET, CHOKE LINK

16017-MW4-000

Unavailable

2

LEVER SET, CHOKE LINK

16018-MW4-000

Unavailable

3

JOINT SET

16026-MR1-004

$39.24

4

SCREW SET

16029-MW4-000

Unavailable

5

PLATE, JOINT SETTING

16037-MW4-000

Unavailable

6

VALVE SET A, CHOKE

16046-MW4-000

Unavailable

7

VALVE SET B, CHOKE

16047-MW4-000

Unavailable

8

STAY, PLATE

16119-MC9-771

Unavailable

9

STAY, WIRE

16119-ML5-004

Unavailable

10

TUBE

16143-MW4-000

Unavailable

11

TUBE

16197-MW4-000

Unavailable

12

JOINT A, VACUUM TUBE

17201-MG9-000

$15.30

13

SCREW-WASHER (4X10)

93892-04010-00

$0.89

13

SCREW-WASHER (4X10) This part replaces 93892-04010-10.

93892-04010-00

$0.89

14

SCREW-WASHER (4X16)

93892-04016-00

$0.51

14

SCREW-WASHER (4X16) This part replaces 93892-04016-10.

93892-04016-00

$0.51

15

SCREW-WASHER (5X16)

93892-05016-00

$0.62

15

SCREW-WASHER (5X16) This part replaces 93892-05016-10.

93892-05016-00

$0.62

16

CLIP, TUBE (B7)

95002-02079

$1.15

17

BULK HOSE, VACUUM (3.5X1000) (3.5X30)

95005-35001-20M

$12.89

18

BULK HOSE, VACUUM (3.5X1000) (3.5X50)

95005-35001-20M

$12.89

19

BULK HOSE, VACUUM (3.5X1000) (3.5X80)

95005-35001-20M

$12.89

20

BULK HOSE, VACUUM (3.5X1000) (3.5X90)

95005-35001-20M

$12.89

21

BULK HOSE, VACUUM (3.5X8000) (3.5X135)

95005-35008-10M

$149.28

22

BULK HOSE, VACUUM (3.5X8000) (3.5X155)

95005-35008-10M

$149.28

23

BULK HOSE, VACUUM (3.5X1000) (3.5X160)

95005-35001-20M

$12.89

24

BULK HOSE, VACUUM (3.5X8000) (3.5X180)

95005-35008-10M

$149.28

25

BULK HOSE, VACUUM (3.5X8000) (3.5X190)

95005-35008-10M

$149.28

26

BULK HOSE, VACUUM (3.5X1000) (3.5X200)

95005-35001-20M

$12.89

27

BULK HOSE, VACUUM (3.5X1000) (3.5X220)

95005-35001-20M

$12.89

28

BULK HOSE, VACUUM (3.5X1000) (3.5X250)

95005-35001-20M

$12.89
