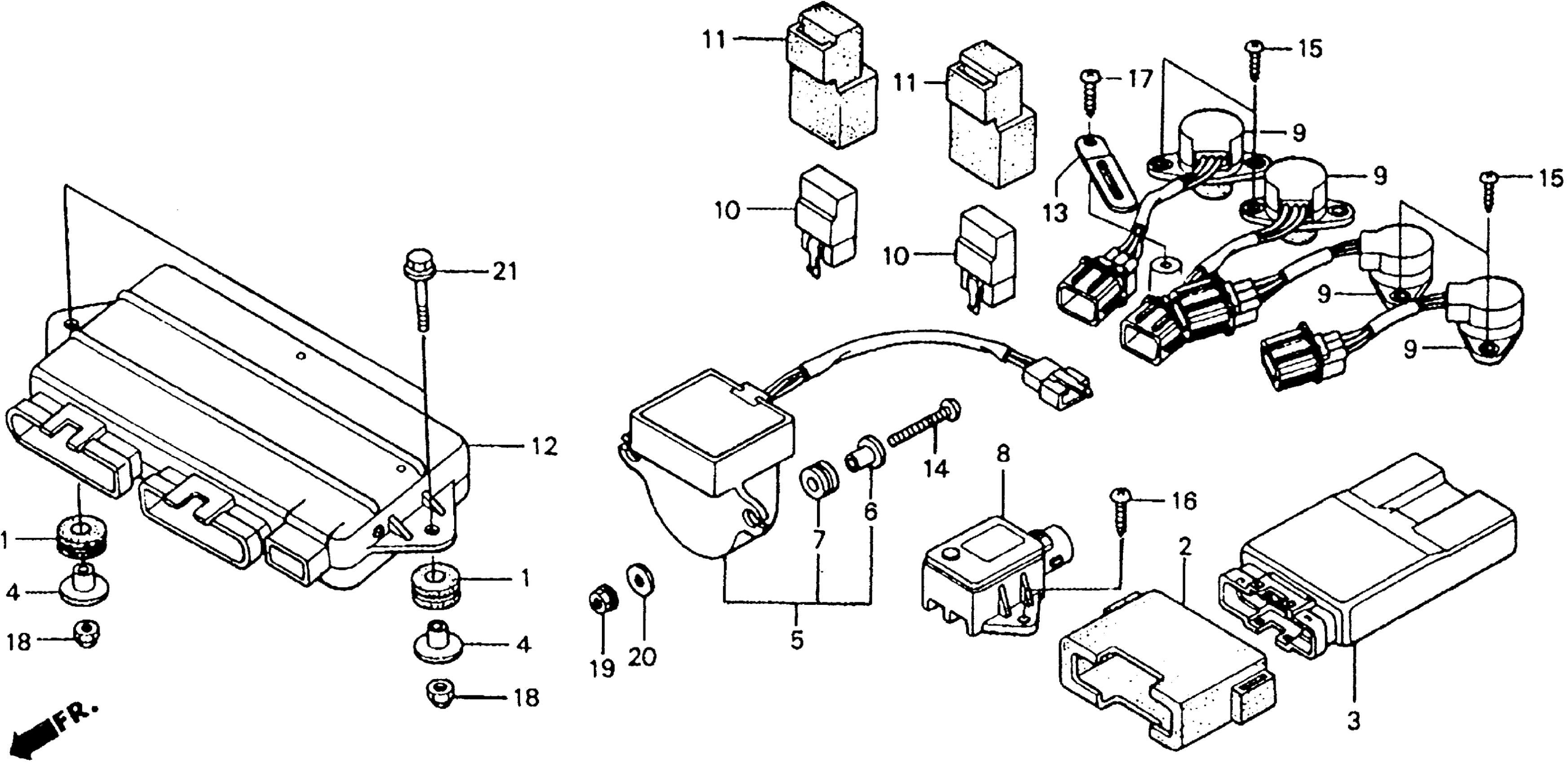

Honda RVF750RA (94) RC45, JPN, VIN# JH2RC450-RM000006 SENSOR Diagram

#

Description
Price

1

GROMMET, AIR CLEANER HOUSING

17251-KE8-690

$2.51

2

RUBBER, SPARK UNIT

30405-MT6-000

Unavailable

3

MODULE, IGNITION CONTROL (CDI)

30410-MW4-601

Unavailable

4

COLLAR, TAILLIGHT

33713-KAE-000

Unavailable

5

SENSOR ASSY., STOP

35160-MN5-003

Unavailable

6

COLLAR

35162-MN5-003

$7.22

7

GROMMET

35163-MN5-003

$3.13

8

SENSOR, MAP This part replaces 37830-PR3-003.

37830-PHM-003

$483.37

9

ADJUSTER ASSY., IGNITION TIMING

37860-PV0-003

Unavailable

10

RELAY, STARTER (MITSUBA)

38501-GN2-014

$47.48

11

SUSPENSION, STARTER RELAY (MITSUBA)

38506-GC7-611

$4.46

12

PGM-FI UNIT

38770-MW4-671

Unavailable

13

CLIP, WIRE

91406-166-000

$3.88

14

SCREW, PAN (4X25)

93500-04025-0A

$2.12

15

SCREW, TAPPING (4X12)

93913-24220

$0.94

16

SCREW, TAPPING (4X16)

93913-24420

$0.94

17

SCREW, TAPPING (5X16) (PO)

93913-25410

$1.09

18

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$2.28

18

NUT, CAP (6MM)

94021-06020

$2.28

18

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$2.28

18

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$2.28

19

NUT, FLANGE (4MM)

94050-04000

$1.28

20

WASHER, SPRING (4MM)

94111-04800

$0.95

21

BOLT, FLANGE (6X20)

96001-06020-00

$1.20
