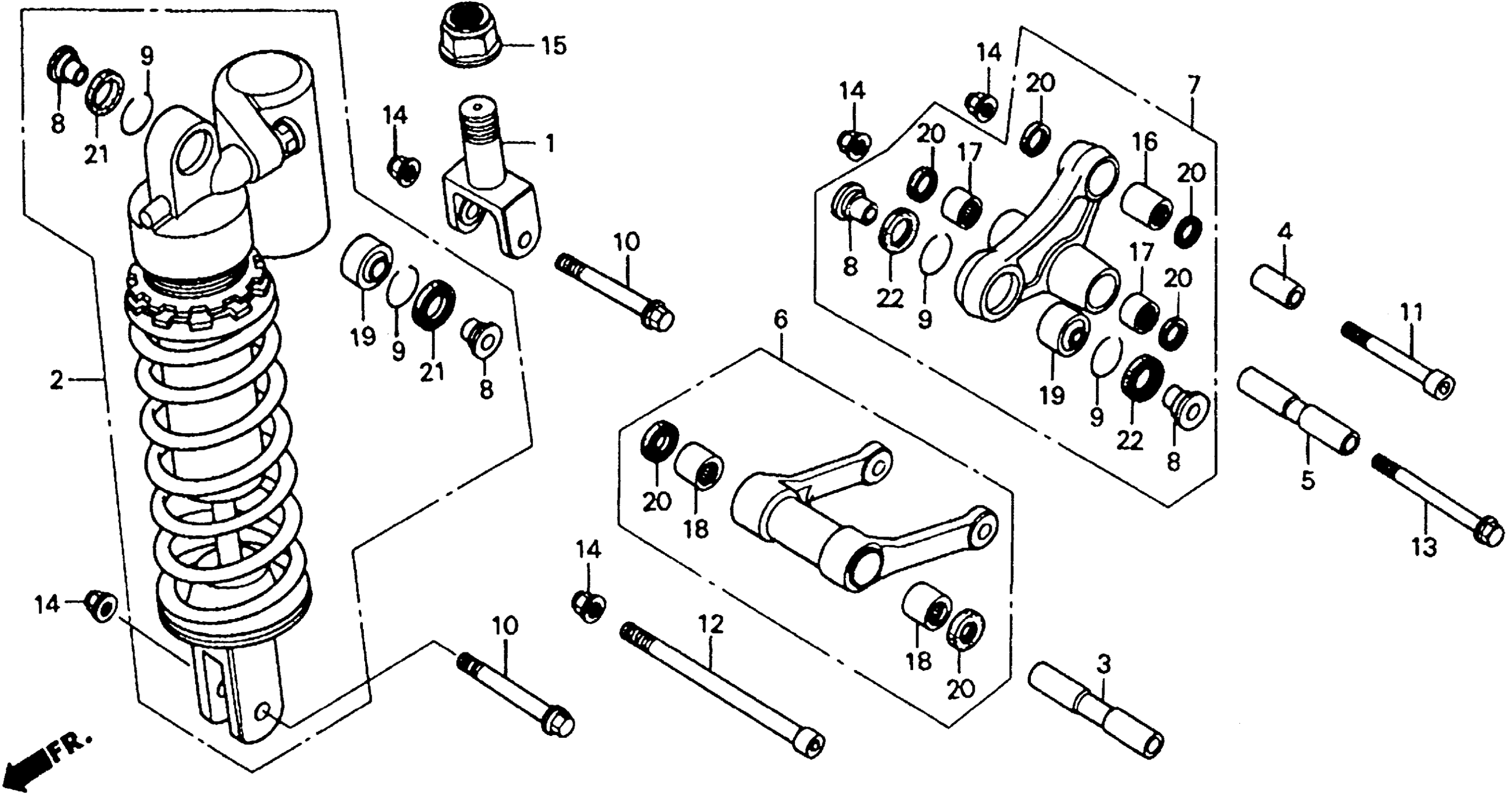

Honda RVF750RA (94) RC45, JPN, VIN# JH2RC450-RM000006 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

BRACKET, RR. CUSHION (UPPER)

50232-MW4-000

Unavailable

2

SHOCK ABSORBER ASSY., RR. (SHOWA)

52400-MW4-611

Unavailable

3

COLLAR, CONNECTING ROD PIVOT

52462-ML0-000

Unavailable

4

COLLAR, CUSHION ARM

52463-KV3-000

Unavailable

5

COLLAR, CUSHION ARM

52463-MR7-000

Unavailable

6

ROD SET, SHOCK CONNECTING

52469-MT7-305

Unavailable

7

ARM SET, SHOCK ABSORBER

52479-MW4-305

Unavailable

8

COLLAR, SHOCK ABSORBER

52486-KN5-000

$8.29

9

RING, STOPPER

52487-KA4-831

$3.90

10

BOLT, FLANGE (10X57)

90107-MR8-000

$6.28

11

BOLT, SOCKET (10X70)

90110-MR7-000

$8.14

12

BOLT, SOCKET (10X130)

90111-MR7-000

$13.83

13

BOLT, FLANGE (10X113)

90115-MR7-003

Unavailable

14

NUT, U (10MM)

90304-GE8-003

$3.66

15

NUT, RR. AXLE U (16MM)

90305-MC0-003

Unavailable

16

BEARING, NEEDLE (KOYO)

91071-KV3-005

$23.88

17

BEARING, NEEDLE (17X24X17) (KOYO)

91071-MY1-005

$18.89

18

BEARING, NEEDLE (17X24X25)

91072-MJ0-003

$27.29

19

BEARING, SPHERICAL (14MM) This part replaces 91077-KA4-831.

91077-KN5-004

$21.86

19

BEARING, SPHERICAL (14MM)

91077-KN5-004

$21.86

20

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$6.16

21

DUST SEAL B

91351-KN5-003

Unavailable

22

DUST SEAL B

91351-KN5-004

$4.03
