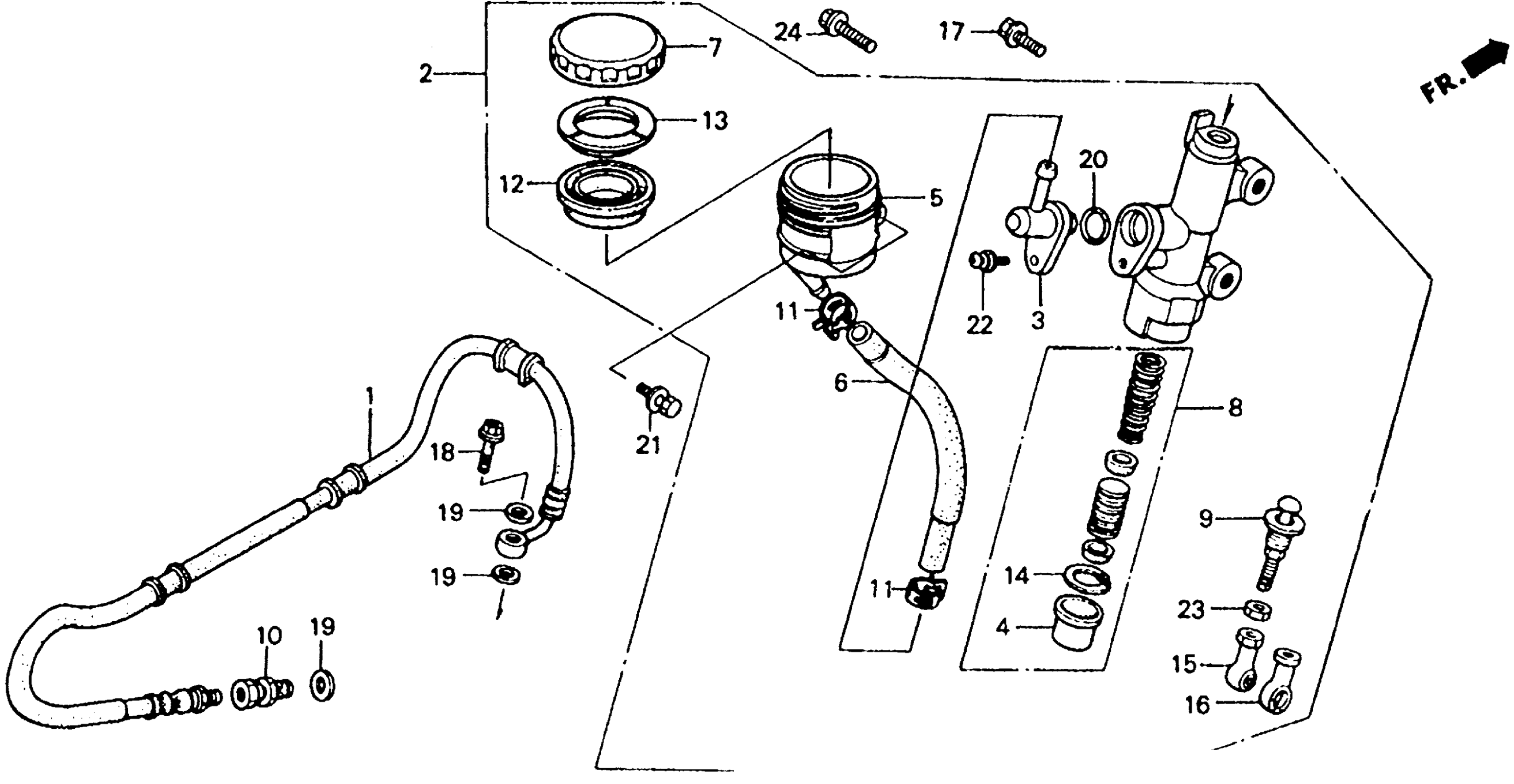

Honda RVF750RA (94) RC45, JPN, VIN# JH2RC450-RM000006 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

HOSE, RR. BRAKE

43310-MW4-003

Unavailable

2

MASTER CYLINDER ASSY., RR. (NISSIN)

43500-MW4-006

Unavailable

3

CONNECTOR

43503-MR7-006

$12.51

4

BOOT

43504-MB2-006

$9.01

5

CUP, OIL (NISSIN)

43511-MR7-016

$29.55

6

HOSE, MASTER CYLINDER

43512-MW4-006

Unavailable

7

CAP, OIL CUP

43513-MY1-006

$26.39

8

PISTON SET, MASTER CYLINDER (NISSIN) This part replaces 43520-MB2-305.

43520-MB2-315

$41.76

9

ROD, PUSH

43530-MB2-006

$31.62

10

JOINT, BRAKE HOSE

45127-KZ4-003

Unavailable

11

CLAMP, MASTER CYLINDER OIL HOSE (NISSIN)

45514-KV3-006

$14.30

12

DIAPHRAGM

45520-300-000

$8.13

13

PLATE, DIAPHRAGM

45521-MJ6-006

$3.77

14

CIRCLIP

46182-500-013

$4.46

15

TIE ROD

46505-MR7-300

Unavailable

16

COVER, DUST

46506-MR7-000

Unavailable

17

BOLT, FLANGE (6X20)

90010-ML0-720

$2.80

18

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$6.82

18

BOLT, OIL (10X22)

90145-MS9-612

$6.82

19

WASHER, OIL BOLT

90545-300-000

$3.72

20

O-RING (14.8X2.4)

91212-422-006

Unavailable

21

BOLT-WASHER (6X20)

93401-06020-00

$1.48

22

SCREW-WASHER (4X12)

93893-04012-07

$1.22

22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

23

NUT, HEX. (8MM)

94002-08000-0S

$1.19

24

BOLT, FLANGE (6X25)

96300-06025-00

$1.33
