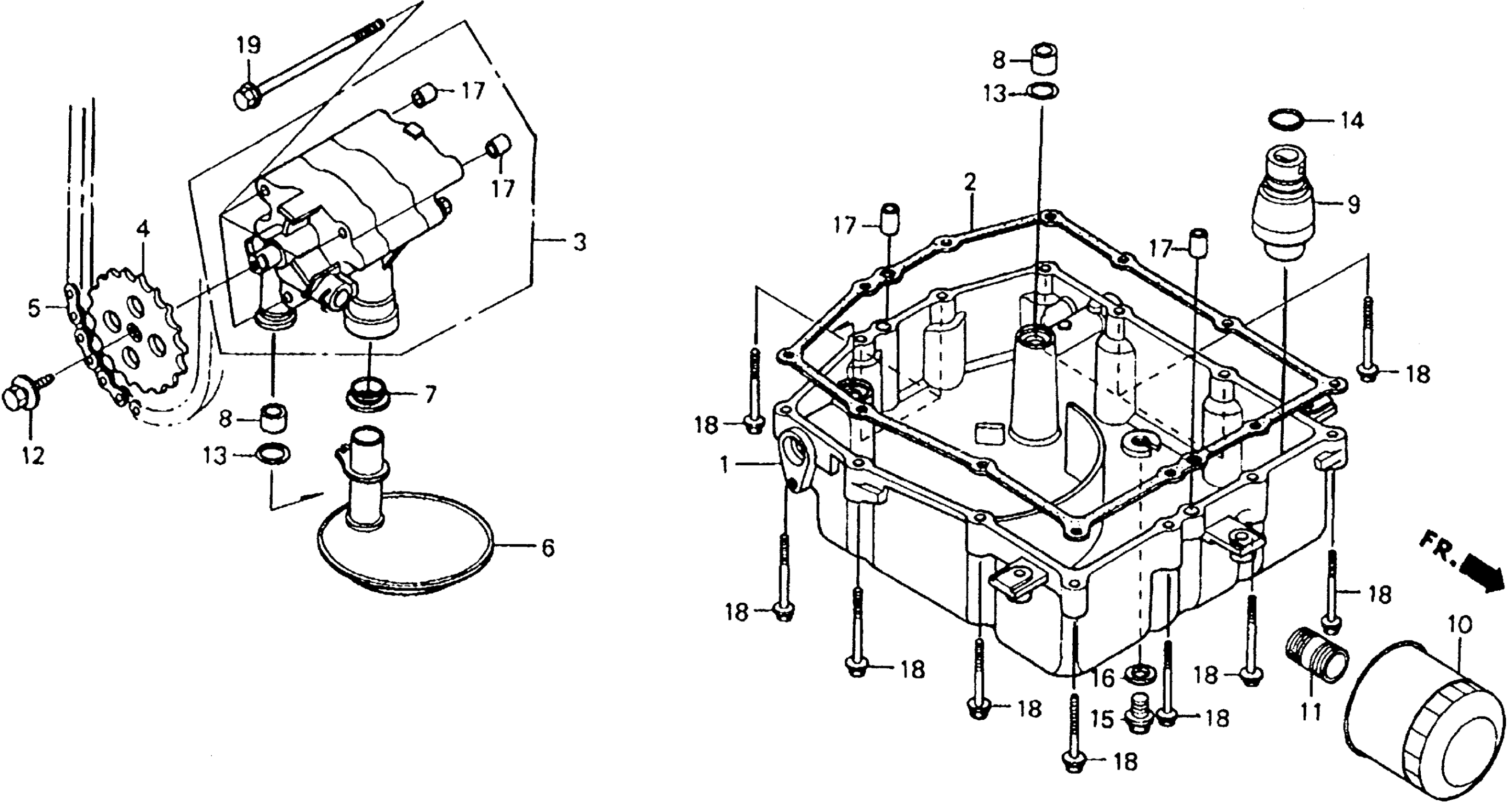

Honda RVF750RA (94) RC45, JPN, VIN# JH2RC450-RM000006 OIL PUMP Diagram

#

Description
Price

1

PAN, OIL

11210-MW4-000

Unavailable

2

GASKET, OIL PAN

11315-MW4-000

Unavailable

3

PUMP ASSY., OIL

15100-MW4-000

Unavailable

4

SPROCKET, OIL PUMP DRIVEN

15134-MZ5-000

$37.25

5

CHAIN, OIL PUMP

15140-ML7-003

$31.22

6

STRAINER, OIL

15150-MW4-000

Unavailable

7

GASKET, OIL STRAINER

15154-MM5-000

$6.56

8

COLLAR, O-RING

15155-300-000

$3.45

9

VALVE ASSY., RELIEF

15220-MZ5-000

$34.60

10

FILTER, OIL (WAKO FILTER) This part replaces 15410-MT7-003.

15410-MFJ-D02

$14.75

11

BOSS, OIL FILTER

90019-MB0-000

$8.27

12

BOLT-WASHER (6X12)

90021-MM5-000

$5.09

13

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.71

13

O-RING (14.8X2.4) (NOK)

91356-MA6-005

$1.80

14

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.66

14

O-RING (14.8X2.2)

91313-MG7-004

$3.66

15

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.40

16

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.18

17

PIN, DOWEL (8X14)

94301-08140

$2.89

18

BOLT, FLANGE (6X32)

95701-06032-00

$1.97

19

BOLT, FLANGE (6X90)

95701-06090-00

$1.95
