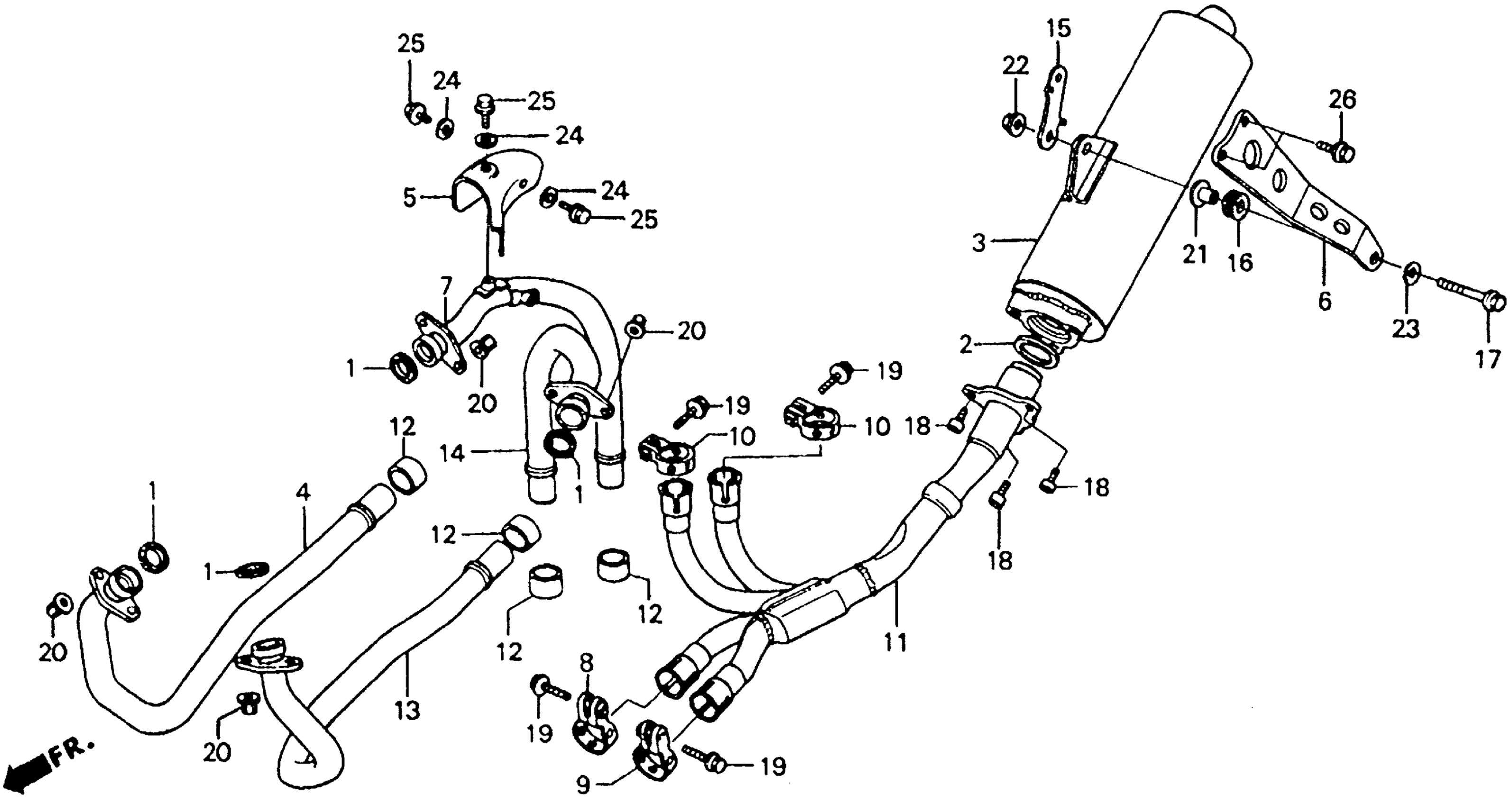

Honda RVF750RA (94) RC45, JPN, VIN# JH2RC450-RM000006 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE

18291-MN5-650

$3.52

2

GASKET, MUFFLER

18292-MV4-000

$7.79

3

MUFFLER This part replaces 18310-MW4-601.

18310-MW4-602

Unavailable

3

MUFFLER

18310-MW4-602

Unavailable

4

PIPE, R. FR. EX. This part replaces 18320-MW4-003.

18320-MW4-661

Unavailable

5

GUARD, EX. PIPE HEAT

18325-MW4-000

Unavailable

6

STAY, MUFFLER

18350-MW4-000

Unavailable

7

PIPE, R. RR. EX. This part replaces 18370-MW4-003.

18370-MW4-661

Unavailable

8

BAND, R. EX. PIPE

18373-ML0-000

$29.13

9

BAND, L. EX. PIPE

18374-ML0-000

$27.51

10

BAND, L. EX. PIPE (SOURCE: VINTAGE PARTS INC.) This part replaces 18374-MW4-000.

18374-MBG-000

Unavailable

11

JOINT, EX.

18380-MW4-003

Unavailable

12

GASKET, MUFFLER

18391-MN5-650

$18.51

13

PIPE, L. FR. EX. This part replaces 18420-MW4-003.

18420-MW4-661

Unavailable

14

PIPE, L. RR. EX. This part replaces 18470-MW4-003.

18470-MW4-661

Unavailable

15

STAY, REFLECTOR

80102-MW4-670

Unavailable

16

CUSHION, RR. FENDER

80103-MG2-000

$2.83

17

BOLT, FLANGE (8X32)

90107-MR7-000

Unavailable

18

BOLT, SOCKET (8X20)

90108-MZ1-610

Unavailable

19

BOLT, FLANGE (8X35)

90161-ML7-000

$3.41

20

NUT, SPECIAL (6MM)

90304-HB3-771

$5.64

21

COLLAR (.8X11)

90551-MG7-000

$5.41

22

NUT, FLANGE (8MM)

94050-08000

$0.86

23

WASHER, PLAIN (8MM)

94103-08000

$0.59

24

WASHER, SPRING (6MM)

94111-06400

Unavailable

25

BOLT, FLANGE (6X10)

96001-06010-00

$1.48

26

BOLT, FLANGE (8X22)

96300-08022-00

$1.97
