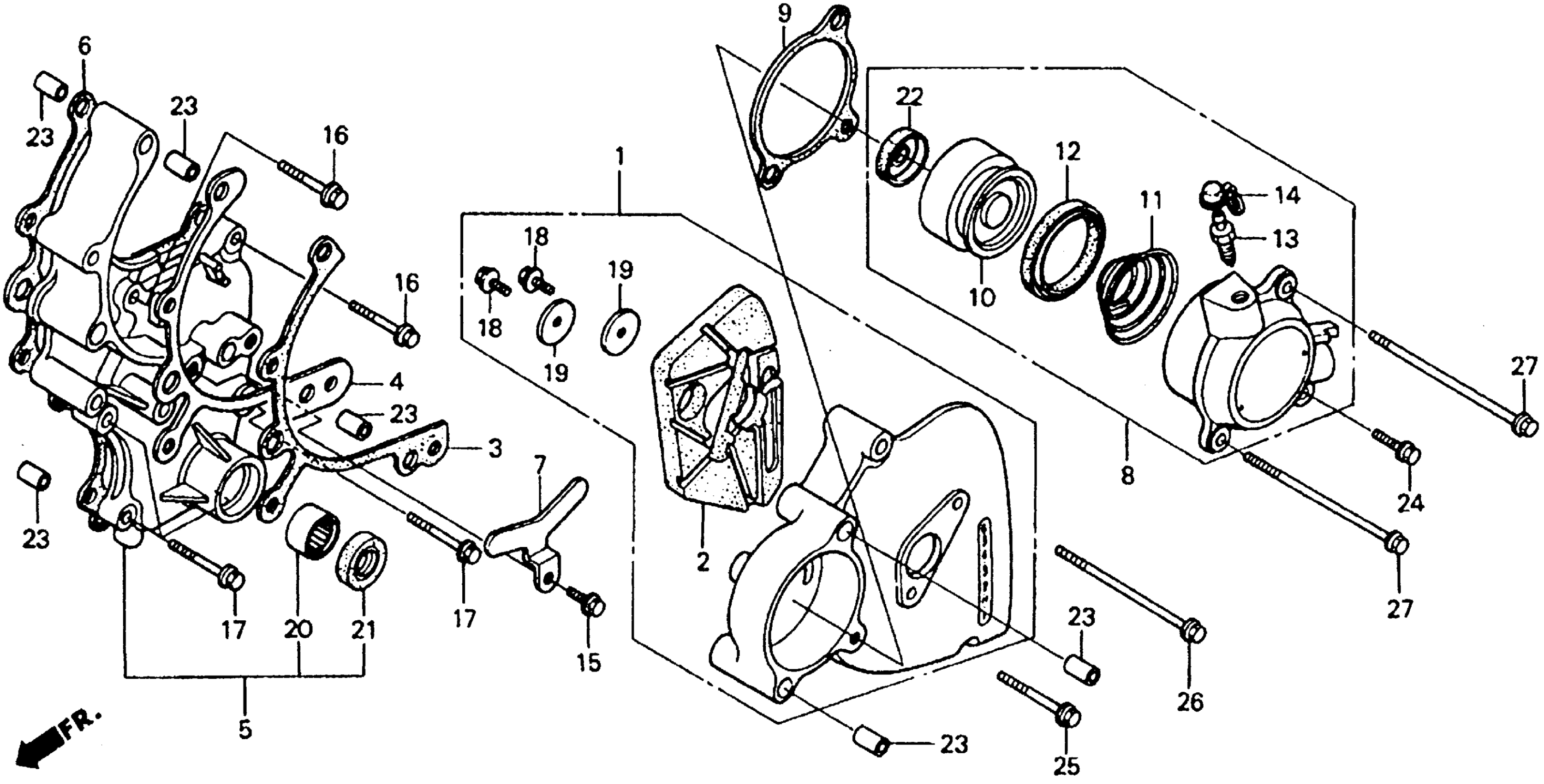

Honda RVF750RA (94) RC45, JPN, VIN# JH2RC450-RM000006 LEFT CRANKCASE COVER Diagram

#

Description
Price

1

COVER ASSY., L.

11340-MW4-000

Unavailable

2

RUBBER, L. COVER

11342-MT4-700

Unavailable

3

GASKET, L. COVER

11343-MW4-000

$8.81

4

PLATE, DRIVE CHAIN GUIDE

11365-MW4-000

Unavailable

5

COVER, CHANGE

11630-MW4-000

Unavailable

6

GASKET, CHANGE COVER This part replaces 11632-MW4-000.

11632-MW4-020

$20.87

7

PLATE, CHANGE COVER

11633-MW4-000

$11.01

8

CYLINDER ASSY., SLAVE

22860-MT7-000

$176.26

9

GASKET, SLAVE CYLINDER This part replaces 22862-MW7-650.

22862-MGJ-D00

$4.64

10

PISTON, SLAVE CYLINDER

22863-MJ8-003

$23.93

11

SPRING, SLAVE CYLINDER This part replaces 22864-MT7-006.

22864-MT7-016

$5.78

11

SPRING, SLAVE CYLINDER

22864-MT7-016

$5.78

12

CUP, SLAVE CYLINDER

22865-MJ8-003

$10.33

13

SCREW, BLEEDER

22866-MF2-711

$4.76

14

CAP, BLEEDER

43353-461-771

$4.70

15

BOLT, FLANGE (6X12) (NSHF) This part replaces 90001-GHB-610.

90004-GHB-610

$2.80

15

BOLT, FLANGE (6X12) (NSHF)

90004-GHB-610

$2.80

16

BOLT, FLANGE (6X22)

90001-GHB-660

$3.30

17

BOLT, FLANGE (6X28) (NSHF) This part replaces 90001-GHB-680.

90004-GHB-680

$3.10

17

BOLT, FLANGE (6X28) (NSHF)

90004-GHB-680

$3.10

18

BOLT, FLANGE (6X10)

90011-HB9-000

$2.25

19

WASHER, TANK CUSHION

90503-898-000

$2.17

20

BEARING, NEEDLE

91101-121-691

$24.41

21

OIL SEAL (14X22X5)

91203-KK3-830

$3.55

22

OIL SEAL (8X18X5)

91209-MB0-003

$3.77

23

PIN, DOWEL (8X14)

94301-08140

$2.04

24

BOLT, FLANGE (6X20)

96001-06020-07

$1.23

25

BOLT, FLANGE (6X32)

96001-06032-07

$1.41

26

BOLT, FLANGE (6X90)

96001-06090-07

Unavailable

27

BOLT, FLANGE (6X95)

96001-06095-07

$2.33
