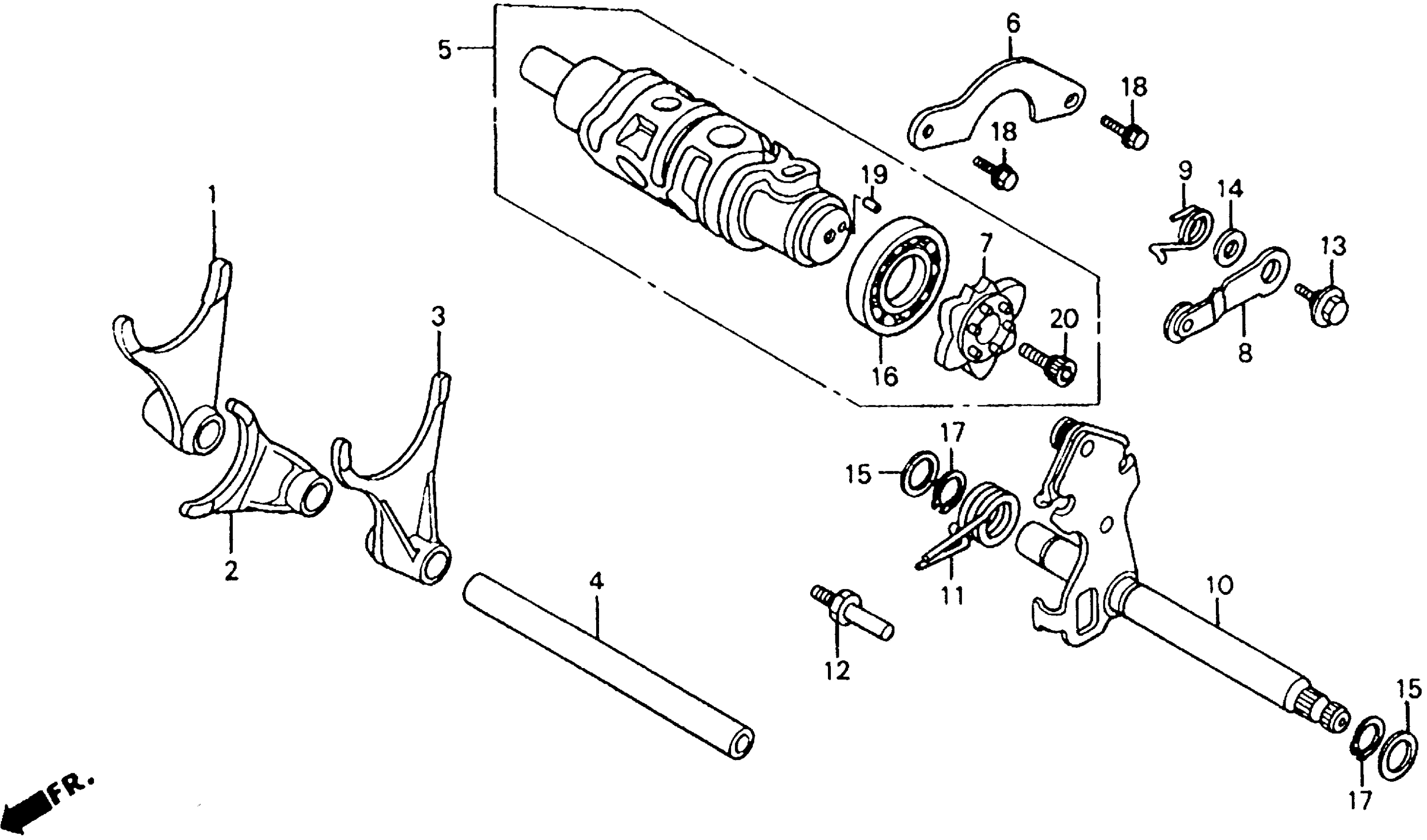

Honda RVF750RA (94) RC45, JPN, VIN# JH2RC450-RM000006 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-ML7-000

Unavailable

2

FORK, CENTER GEARSHIFT

24212-ML7-000

Unavailable

3

FORK, L. GEARSHIFT

24213-ML7-000

Unavailable

4

SHAFT, GEARSHIFT FORK

24261-MW4-000

$48.05

5

DRUM, GEARSHIFT

24310-MW4-000

Unavailable

6

PLATE, DRUM SETTING

24315-KE8-000

$5.03

7

CENTER, SHIFT DRUM

24315-MV9-932

$41.94

8

STOPPER, GEARSHIFT DRUM

24430-GB2-710

$12.45

9

SPRING, DRUM STOPPER

24435-MW4-000

$4.80

10

SPINDLE, GEARSHIFT

24610-MW4-000

Unavailable

11

SPRING, SHIFT RETURN

24651-KV3-000

Unavailable

12

PIN, SHIFT RETURN SPRING

24652-035-000

$3.99

13

PIVOT, SHIFT DRUM STOPPER ARM

90022-MG8-000

$2.40

14

WASHER, DRUM STOPPER

90417-360-000

$1.68

15

WASHER (14MM)

90451-155-000

$3.77

16

BEARING, BALL (16005) (NTN)

91008-374-003

$14.41

17

CIRCLIP, OUTER (14MM)

94510-14000

$1.05

18

BOLT, FLANGE (6X16)

95701-06016-00

$1.57

19

ROLLER (4X8)

96220-40080

$0.49

20

BOLT, SOCKET (8X20)

96700-08020-18

Unavailable
