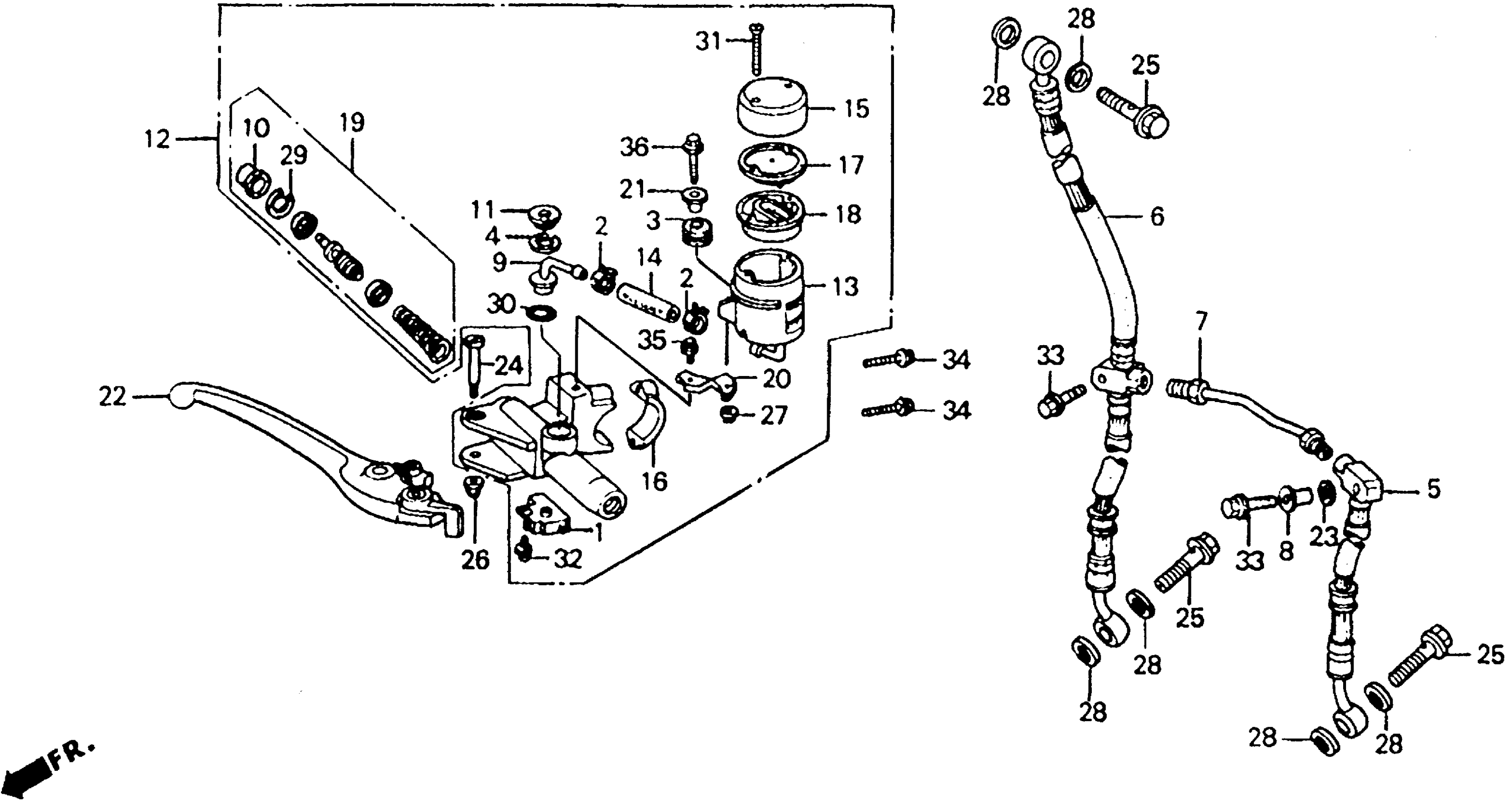

Honda RVF750RA (94) RC45, JPN, VIN# JH2RC450-RM000006 FRONT BRAKE MASTER CYLINDER Diagram

SWITCH ASSY., FR. STOP

35340-MM5-600

$19.29

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

RUBBER, OIL CUP MOUNTING

43516-HA2-000

$4.16

CIRCLIP, RR. MASTER CYLINDER

43517-KS6-701

$3.55

HOSE, L. FR. BRAKE

45124-MW4-003

Unavailable

HOSE, FR. BRAKE

45125-MW4-003

Unavailable

PIPE, FR. BRAKE

45127-MW4-000

Unavailable

COLLAR, FR. BRAKE HOSE

45129-MAE-000

$8.00

CONNECTOR, MASTER CYLINDER

45503-KV3-006

$8.44

BOOT

45504-410-003

$10.93

COVER, DUST (NISSIN)

45505-KV3-006

$3.87

MASTER CYLINDER SUB-ASSY., FR. (NISSIN)

45510-MW0-315

Unavailable

CUP, OIL (NISSIN)

45511-KV3-016

$33.08

HOSE, MASTER CYLINDER OIL (NISSIN)

45512-MW0-006

$6.62

CAP, OIL CUP (NISSIN)

45513-KV3-006

$31.51

HOLDER, MASTER CYLINDER

45517-166-006

$12.17

PLATE, DIAPHRAGM (NISSIN)

45518-KV3-006

$11.29

DIAPHRAGM (NISSIN)

45520-KV3-006

$12.56

MASTER CYLINDER SET

45530-KV3-305

Unavailable

STAY, FR. MASTER CYLINDER

45550-KY2-006

Unavailable

COLLAR (6.3X13)

50324-425-010

$4.51

LEVER ASSY., R. HANDLE

53170-MW0-006

$38.08

RUBBER, SEAT HINGE

77218-GB2-720

$2.43

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$8.46

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$6.82

BOLT, OIL (10X22)

90145-MS9-612

$6.82

NUT, CAP (6MM)

90201-415-000

$1.96

NUT, U (6MM)

90301-MG3-000

$6.44

WASHER, OIL BOLT

90545-300-000

$3.72

CIRCLIP

90651-MA5-671

$2.38

O-RING (14.8X2.4)

91212-422-006

Unavailable

SCREW, FLAT (4X50)

93600-04050-1G

$0.93

SCREW-WASHER (4X12)

93893-04012-07

$1.22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

BOLT, FLANGE (6X30)

95801-06030-07

$1.71

BOLT, FLANGE (6X22)

96001-06022-07

$1.68

BOLT, FLANGE (6X12)

96300-06012-07

$1.17

BOLT, FLANGE (6X25)

96300-06025-07

$1.72
