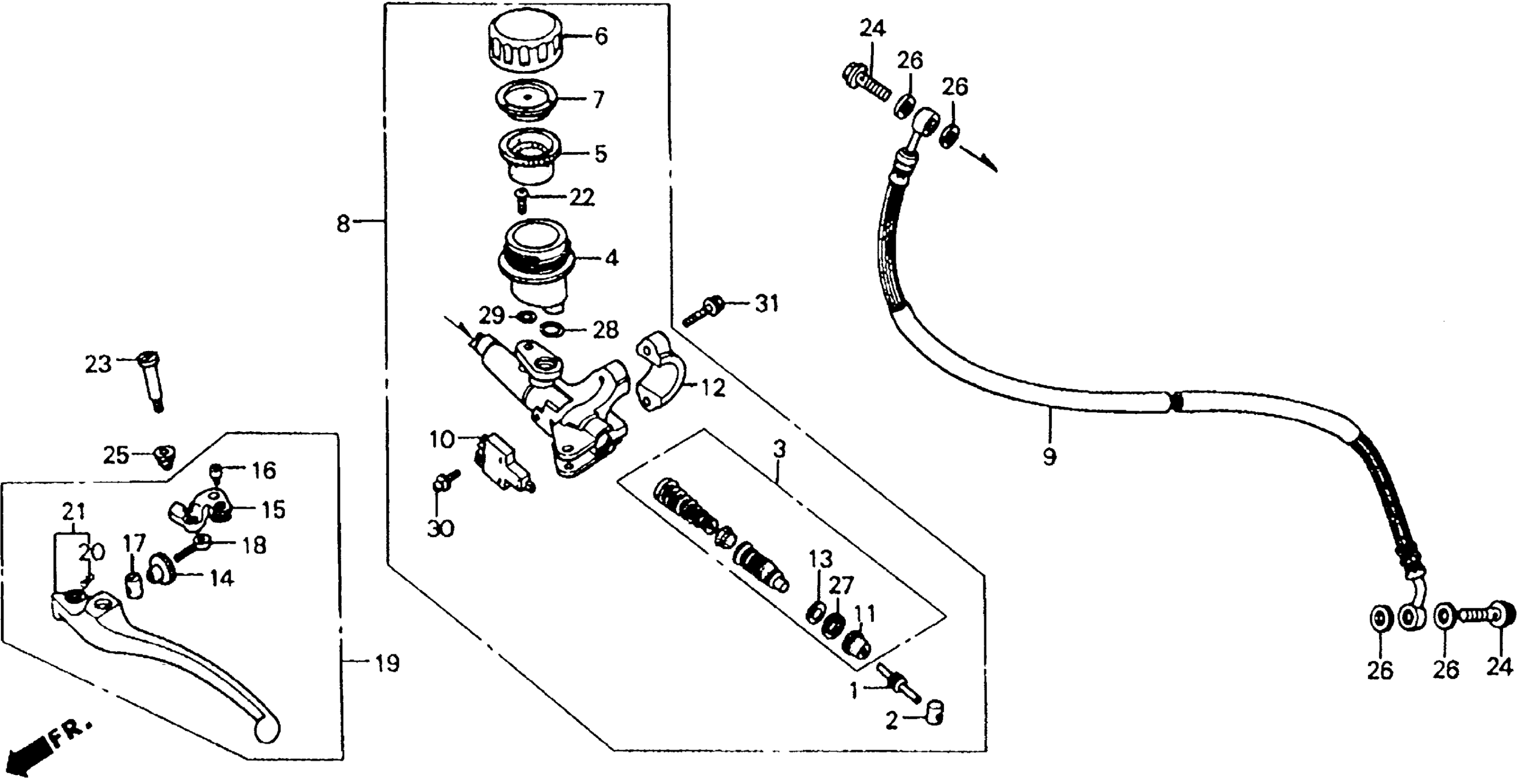

Honda RVF750RA (94) RC45, JPN, VIN# JH2RC450-RM000006 CLUTCH MASTER CYLINDER Diagram

#

Description
Price

1

ROD, PUSH

22884-MB0-006

$18.55

2

BUSH

22885-MB0-006

$11.63

3

PISTON SET, CLUTCH MASTER CYLINDER

22886-MB0-305

$66.74

4

CUP, CLUTCH OIL (NISSIN)

22887-MR7-006

Unavailable

5

DIAPHRAGM (NISSIN)

22888-MR7-006

$13.62

6

CAP, CLUTCH OIL CUP (NISSIN)

22889-MR7-006

$34.83

7

PLATE, DIAPHRAGM (NISSIN)

22890-MR7-006

$10.46

8

MASTER CYLINDER SUB-ASSY., CLUTCH (NISSIN)

22890-MR7-305

Unavailable

9

HOSE, CLUTCH

22900-MW4-000

Unavailable

10

SWITCH ASSY., CLUTCH

35330-MB0-003

$16.34

11

BOOT

45504-410-003

$10.93

12

HOLDER, MASTER CYLINDER

45517-166-006

$12.17

13

PLATE, STOPPER

45518-MB0-006

$1.77

14

ADJUSTER, R. HANDLEBAR

53172-KV0-006

Unavailable

15

KNOCKER, CLUTCH

53172-MJ4-701

Unavailable

16

BOLT, LEVER SOCKET (5X5)

53177-KV0-006

Unavailable

17

JOINT, LEVER

53179-KV0-006

Unavailable

18

BOLT, ADJUSTING

53180-KV0-006

Unavailable

19

LEVER ASSY., L. HANDLE This part replaces 53180-ML7-691.

53180-ML7-692

Unavailable

19

LEVER ASSY., L. HANDLE

53180-ML7-692

Unavailable

20

SPRING, HANDLEBAR

53181-KV0-006

$3.64

21

LEVER SET, L. HANDLE

53188-ML7-305

Unavailable

22

SCREW, TRIPLE (4X11)

90101-MR7-006

$2.83

23

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$8.46

24

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$6.82

24

BOLT, OIL (10X22)

90145-MS9-612

$6.82

25

NUT, CAP (6MM)

90201-415-000

$1.96

26

WASHER, OIL BOLT

90545-300-000

$3.72

27

CIRCLIP (INNER) (18MM)

90651-377-003

$1.77

28

O-RING (14.8X2.4)

91212-422-006

Unavailable

29

O-RING (5.8X1.9) (NISSIN)

91355-MG9-006

Unavailable

30

SCREW-WASHER (4X12)

93893-04012-07

$1.22

30

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

31

BOLT, FLANGE (6X22)

96001-06022-07

$1.68
