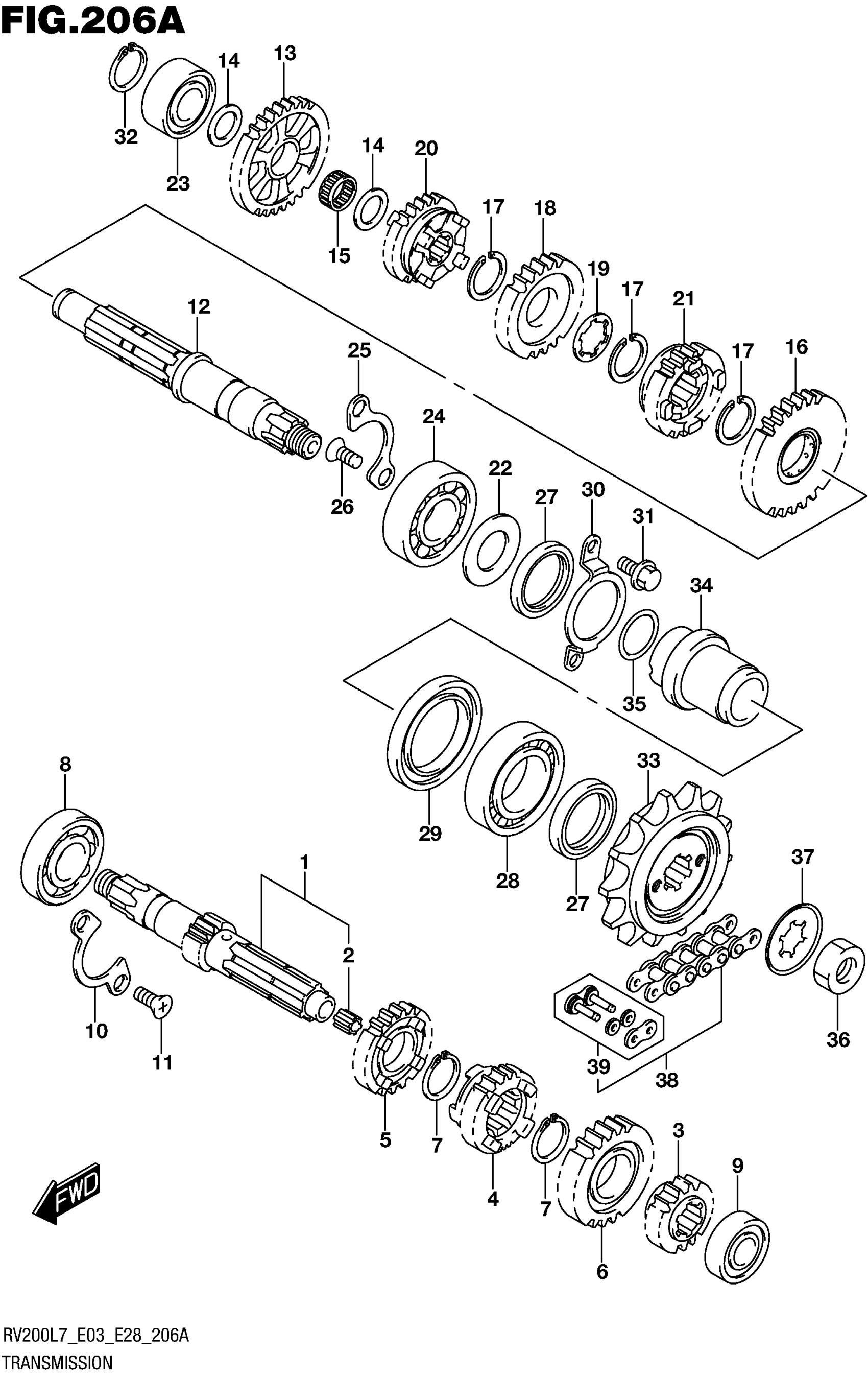

Suzuki RV200L7 (2017) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER (NT:11)

24120-42A10

Unavailable

2

.BUSH

24125-38201

$7.22

3

GEAR, 2ND DRIVE (NT:15)

24221-42A02

Unavailable

4

GEAR, 3RD DRIVE (NT:16)

24231-42A03

Unavailable

5

GEAR, 4TH DRIVE (NT:21)

24241-42A10

Unavailable

6

GEAR, 5TH DRIVE (NT:23)

24251-42A10

Unavailable

7

CIRCLIP

09380-20009

$2.06

8

BEARING (20X47X14)

09262-20069

$21.00

9

BEARING

08123-60027

$25.32

10

RETAINER, DRIVE SHAFT BEARING

24741-05200

Unavailable

11

SCREW (6X12)

09126-06011

$2.01

12

SHAFT, DRIVE

24130-13G01

Unavailable

13

GEAR, 1ST DRIVEN (NT:33)

24311-42A00

$130.65

14

SHIM (17X26X1)

09181-17167

$2.80

15

BEARING (17X21X9.8)

09263-17004

$13.08

16

GEAR, 2ND DRIVEN (NT:29)

24320-42A03

$108.60

17

CIRCLIP

09380-22006

$2.80

18

GEAR, 3RD DRIVEN (NT:23)

24331-42A02

Unavailable

19

LOCK WASHER

09167-22011

$2.95

20

GEAR, 4TH DRIVEN (NT:23)

24341-42A10

$102.80

21

GEAR, 5TH DRIVEN (NT:21)

24351-42A02

Unavailable

22

WASHER, OIL SEALING

24359-42A00

$4.92

23

BEARING (17X36X12)

09264-17001

$46.75

24

BEARING (22X50X14)

09262-22018

$27.83

25

RETAINER, DRIVE SHAFT BEARING

24741-05200

Unavailable

26

SCREW (6X12)

09126-06011

$2.01

27

OIL SEAL (30X40X6)

09283-30053

$8.34

28

BEARING

08113-60067

$29.73

29

OIL SEAL (40X58X6)

09283-40018

$13.49

30

RETAINER, DRIVE SHAFT OIL SEA

24751-42A10

$5.10

31

BOLT

01500-0610A

$2.43

32

CIRCLIP

08331-31179

$1.88

33

SPROCKET,ENGINE This part replaces 27510-08D20.

27510-08D21

$73.57

34

SPACER, ENGINE SPROCKET

27531-13G00

$50.38

35

O RING (D:2.5,ID:21)

09280-21008

$1.89

36

NUT

09140-16032

$5.82

37

LOCK WASHER

09167-20031

$2.67

38

CHAIN ASSY,DRIVE | L:114->110 This part replaces 27600-43D02-114.

27600-46K00-114

$156.72

39

.JOINT SET,CHAIN This part replaces 27620-43D02.

27620-46K00

$10.80
