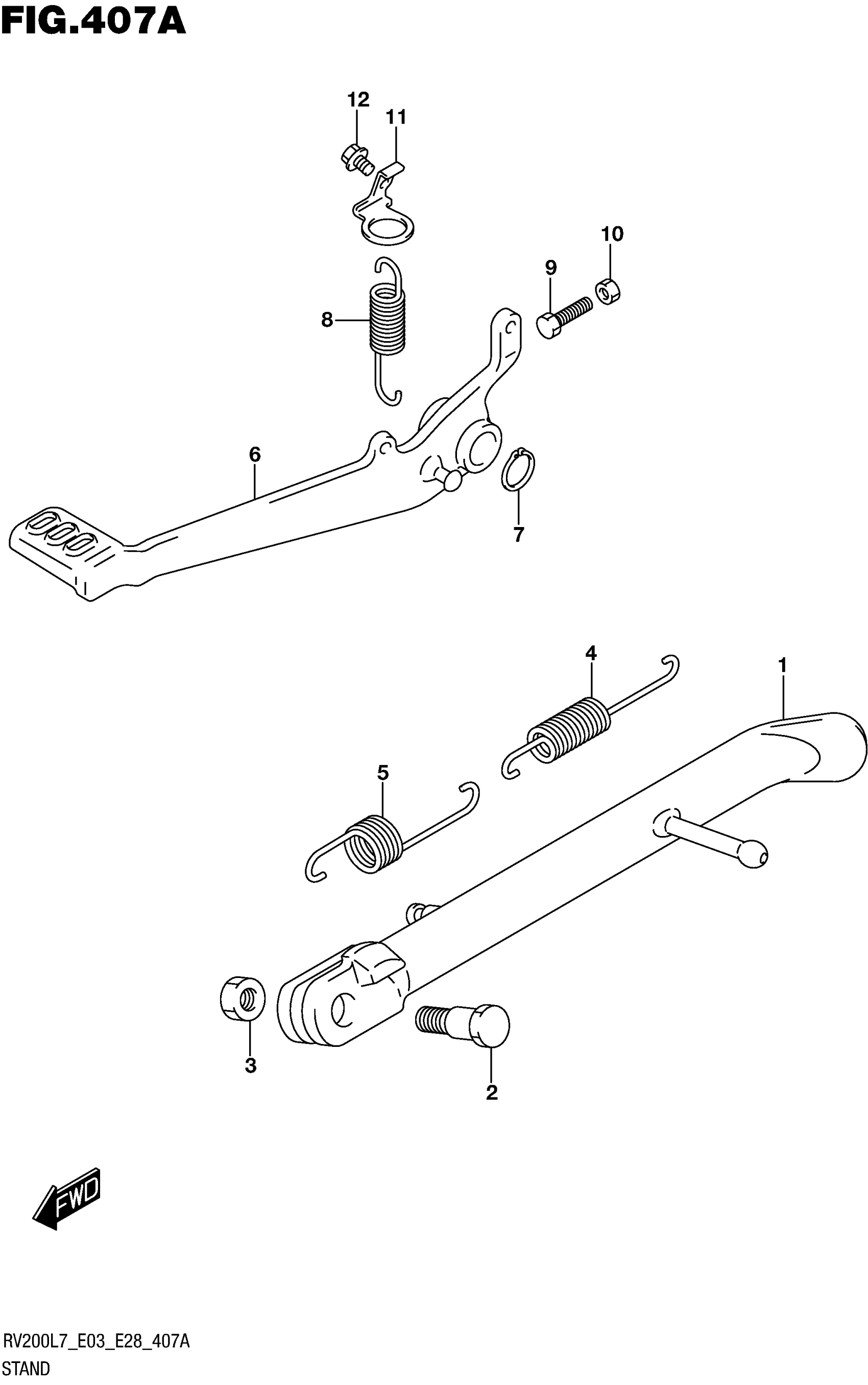

Suzuki RV200L7 (2017) STAND Diagram

#

Description
Price

1

STAND, PROP

42310-13G10

$100.65

2

BOLT (10X33)

09111-10060

$3.82

3

NUT

08319-2110B

Unavailable

4

SPRING

09443-14069

$5.74

5

SPRING

09443-19012

$5.47

6

PEDAL, BRAKE

43110-13G10

$76.12

7

CIRCLIP

08331-3115A

$2.03

8

SPRING

09443-13029

$4.99

9

BOLT (6X23)

09100-06009

$1.79

10

NUT

08310-0006B

$2.44

11

BRACKET, STOP LAMP SWITCH

43251-13G00

$8.91

12

BOLT

01550-0508B

Unavailable
