2017 Suzuki RV200L7 Rear Wheel Diagram

← All diagrams

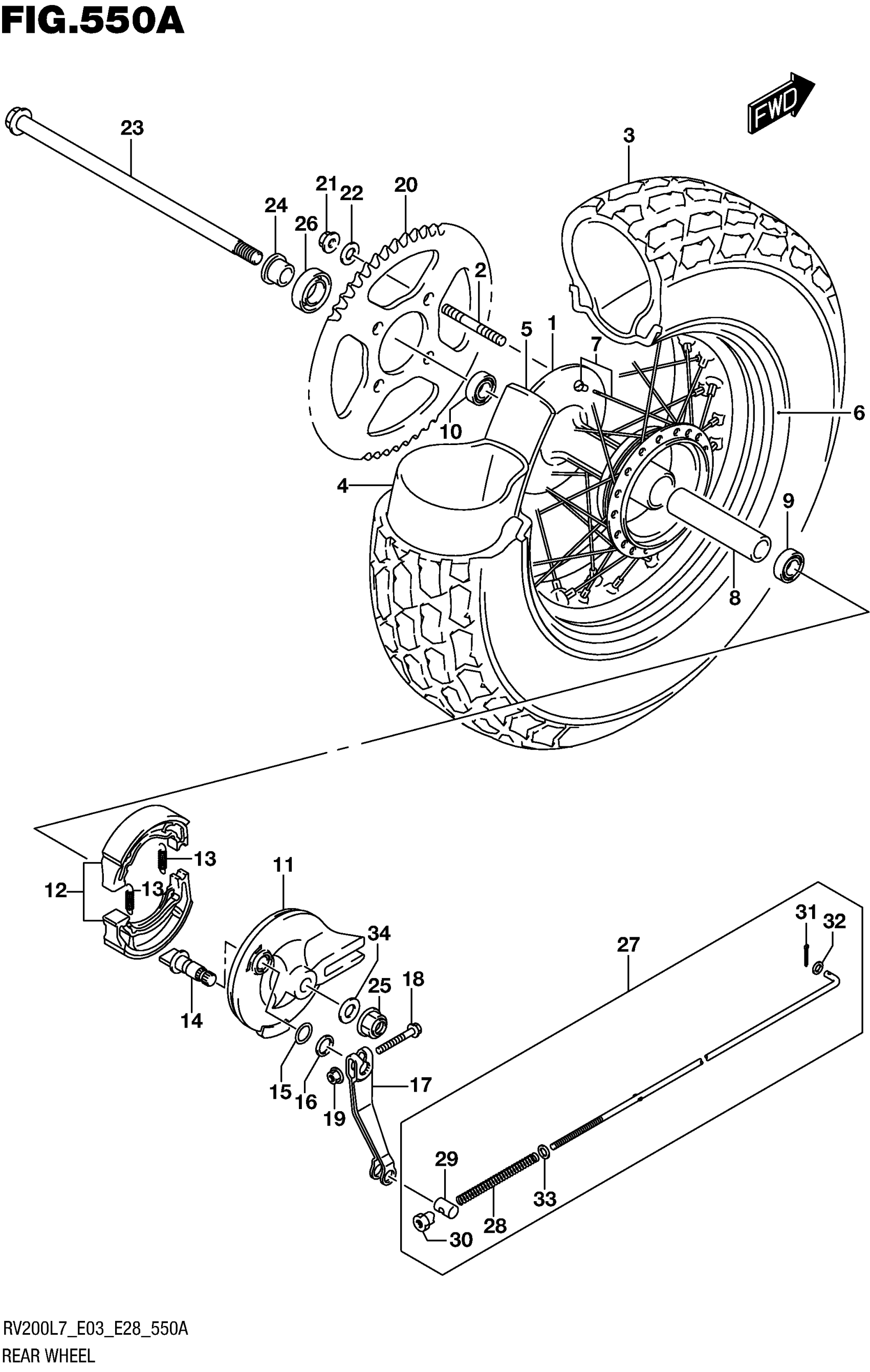

Find the part on the Rear Wheel diagram for your 2017 Suzuki RV200L7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki RV200L7 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR WHEEL This part replaces 64110-13G00.

64100-13G00

1
Out of stock

2

.STUD BOLT

09108-10061

4
Out of stock

3

TIRE, REAR (180/80-14M/C 78P) | K180J

65110-13G10

1
Out of stock

3

TIRE, REAR (180/80-14M/C 78P) | DUNLOP

65110-13G10

1
Out of stock

4

1

$46.62

In stock

5

1

$7.03

In stock

6

1

$412.97

In stock

7

SPOKE SET, REAR WHEEL

65320-13G00

1

$105.32

In stock

8

SPACER, REAR HUB BEARING

64731-13G00

1
Out of stock

9

BEARING | RH

08143-62027

1
Out of stock

10

BEARING | LH This part replaces 08123-63027.

08123-6302B

1
Out of stock

11

PANEL, REAR BRAKE ANCHOR

64210-13G10

1
Out of stock

12

SHOE SET, BRAKE

54402-35820

1
Out of stock

13

.SPRING (L:37.8)

09443-07044

2
Out of stock

14

CAM, BRAKE

54441-29305

1
Out of stock

15

O RING (D:2.5,ID:13.8) This part replaces 09280-14003.

09280-14011

1
Out of stock

16

WASHER (14.5X22X1.6)

09160-14055

1
Out of stock

17

LEVER, REAR BRAKE CAM

64451-13G10

1
Out of stock

18

BOLT

01550-0635B

1
Out of stock

19

NUT

08316-1006B

1
Out of stock

20

SPROCKET, REAR (NT:46)

64511-13G00

1
Out of stock

21

NUT

08319-3110A

4
Out of stock

22

WASHER

08322-01107

4
Out of stock

23

AXLE, REAR

64711-13G00

1
Out of stock

24

SPACER, REAR AXLE

64751-13G10

1
Out of stock

25

NUT

08319-3114A

1
Out of stock

26

OIL SEAL (24X43X6) | LH

09284-24001

1
Out of stock

27

ROD ASSY, RR BRAKE

43300-13G30

1
Out of stock

28

.SPRING

09440-09004

1
Out of stock

29

.PIN (11X18)

09209-11002

1
Out of stock

30

.NUT

09150-06010

1
Out of stock

31

.PIN

04111-2020A

1
Out of stock

32

.WASHER | FRONT

08322-0105B

1
Out of stock

33

.WASHER | REAR

08322-0106B

1
Out of stock

34

WASHER (15.5X30X3.2)

09160-15039

2
Out of stock
