Description

Price

1

BAR, FR FOOTREST RH

43510-13G10

$63.02

2

BAR, FR FOOTREST LH

43520-13G10

$50.12

3

BOLT (12X25)

09103-12047

$6.57

4

RUBBER,PILLION This part replaces 43550-37301.

43550-37310

$25.06

5

FOOTREST LH This part replaces 43560-37301.

43560-37310

$31.54

6

PIN

09200-08002

$2.02

7

SPRING

09448-14012

$2.82

8

PIN

04111-2015A

$1.25

9

BRACKET, PILLION RH

43650-13G00

$76.82

10

BRACKET, PILLION LH

43750-13G00

$75.02

11

BOLT

01550-0820B

$2.80

12

BAR, FOOTREST RUBBER

43610-03001

$6.41

13

RUBBER, PILLION FOOTREST

43612-03001

$5.07

14

WASHER (19.5X32X2)

09160-19024

$3.22

15

PIN

09200-06033

$2.87

16

CLIP

09385-06012

$1.97

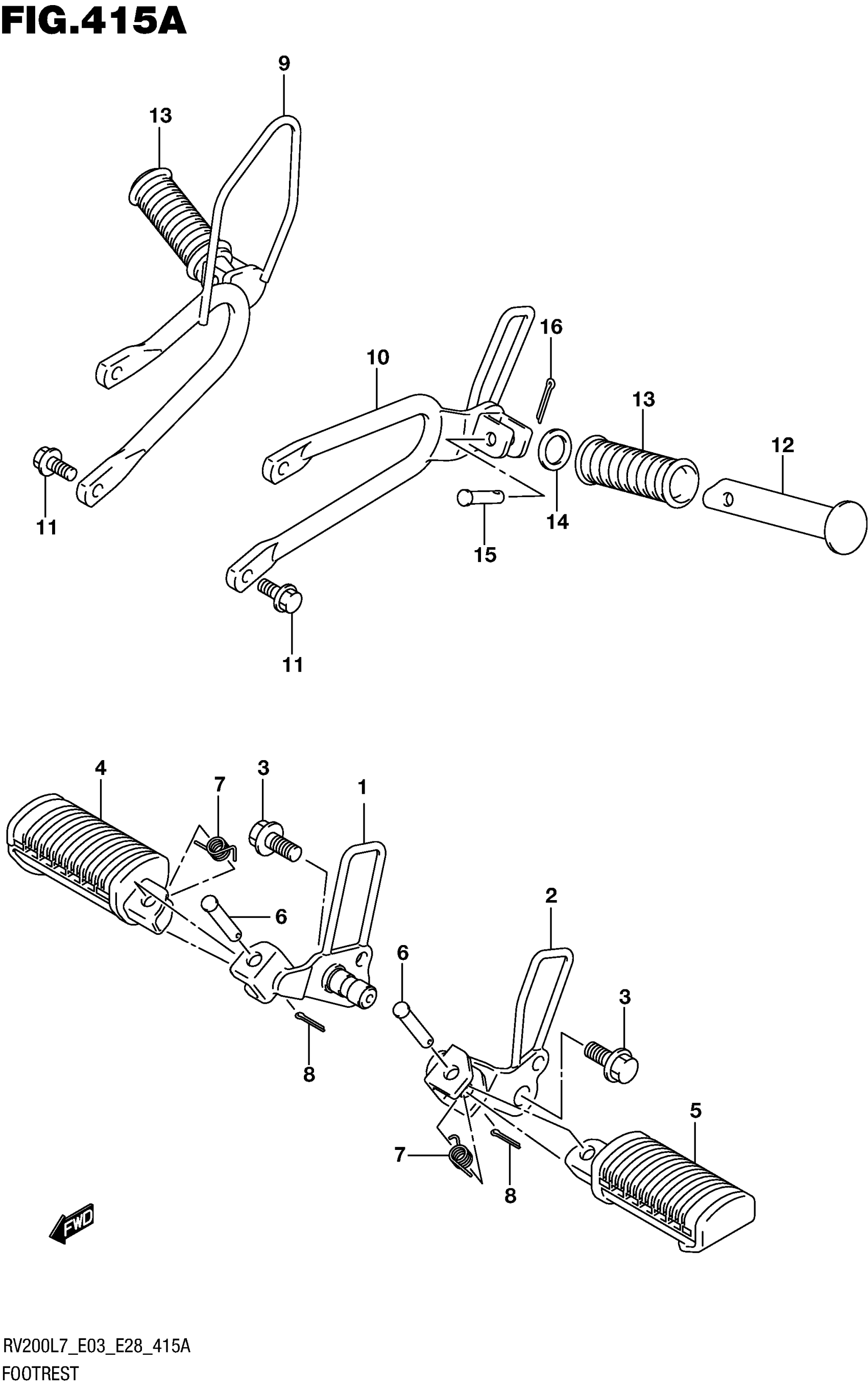

Suzuki RV200L7 (2017) FOOTREST Diagram
