1972 Yamaha DT2 (RT2) AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1972 Yamaha DT2 (RT2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

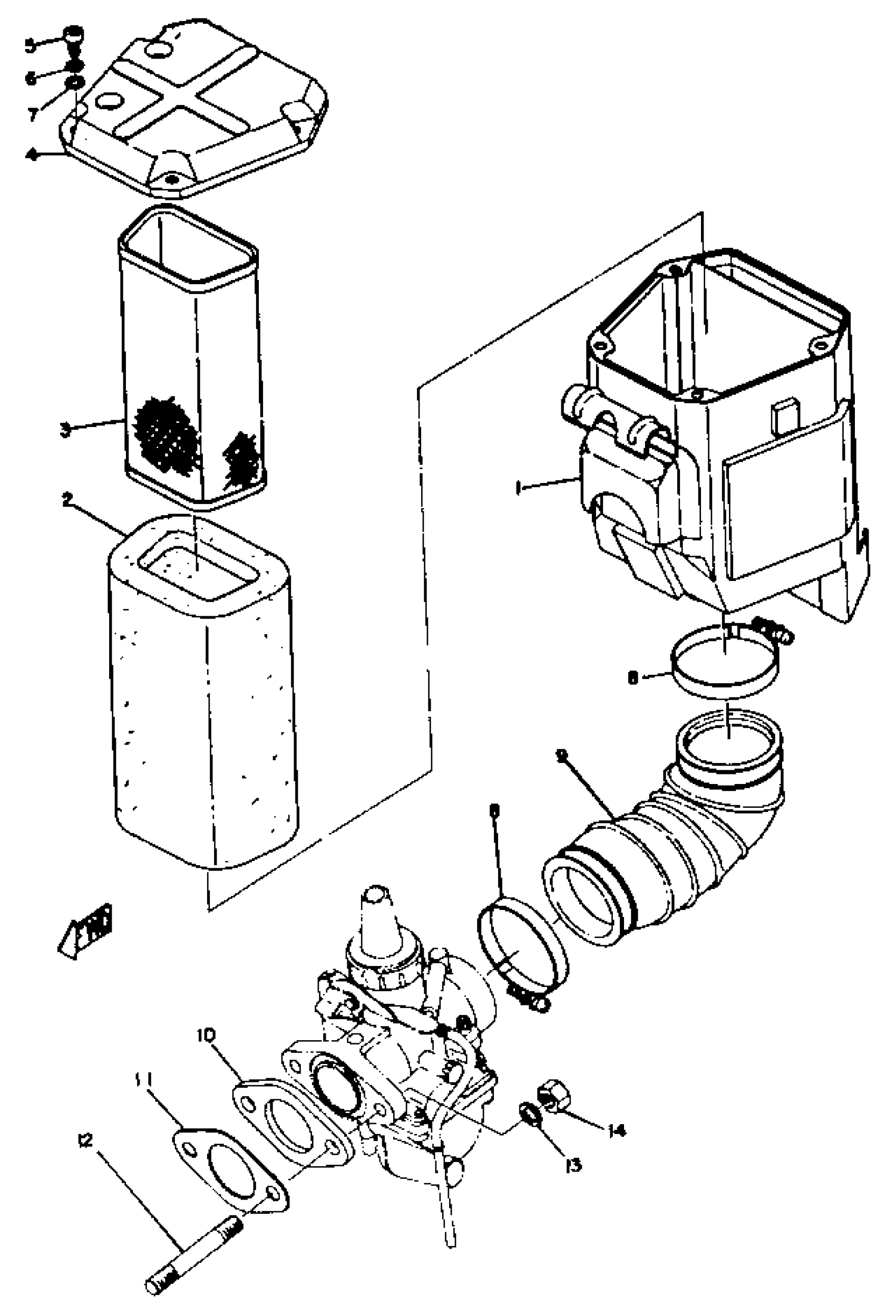

1972 Yamaha DT2 (RT2) AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, AIR CLEANER 1

(308-14411-00-00)

1
Out of stock

2

ELEMENT, AIR CLEANER

308-14451-08-00

1
Out of stock

3

GUIDE, ELEMENT

308-14458-00-00

1
Out of stock

4

CAP, CLEANER CASE 1

(308-14412-00-00)

1
Out of stock

5

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

8

BAND

90460-54062-00

1
Out of stock

9

JOINT, AIR CLNR 1

308-14453-00-00

1
Out of stock

9

JOINT, AIR CLNR 1

311-14453-00-00

1
Out of stock

10

MANIFOLD, INTAKE

311-13555-00-00

1
Out of stock

11

GASKET, MAN

275-13556-09-00

1
Out of stock

12

BOLT, STUD (17W)

90116-08408-00

—

$15.12

In stock

13

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

14

NUT(6L2)

95333-08600-00

1

$3.20

In stock
