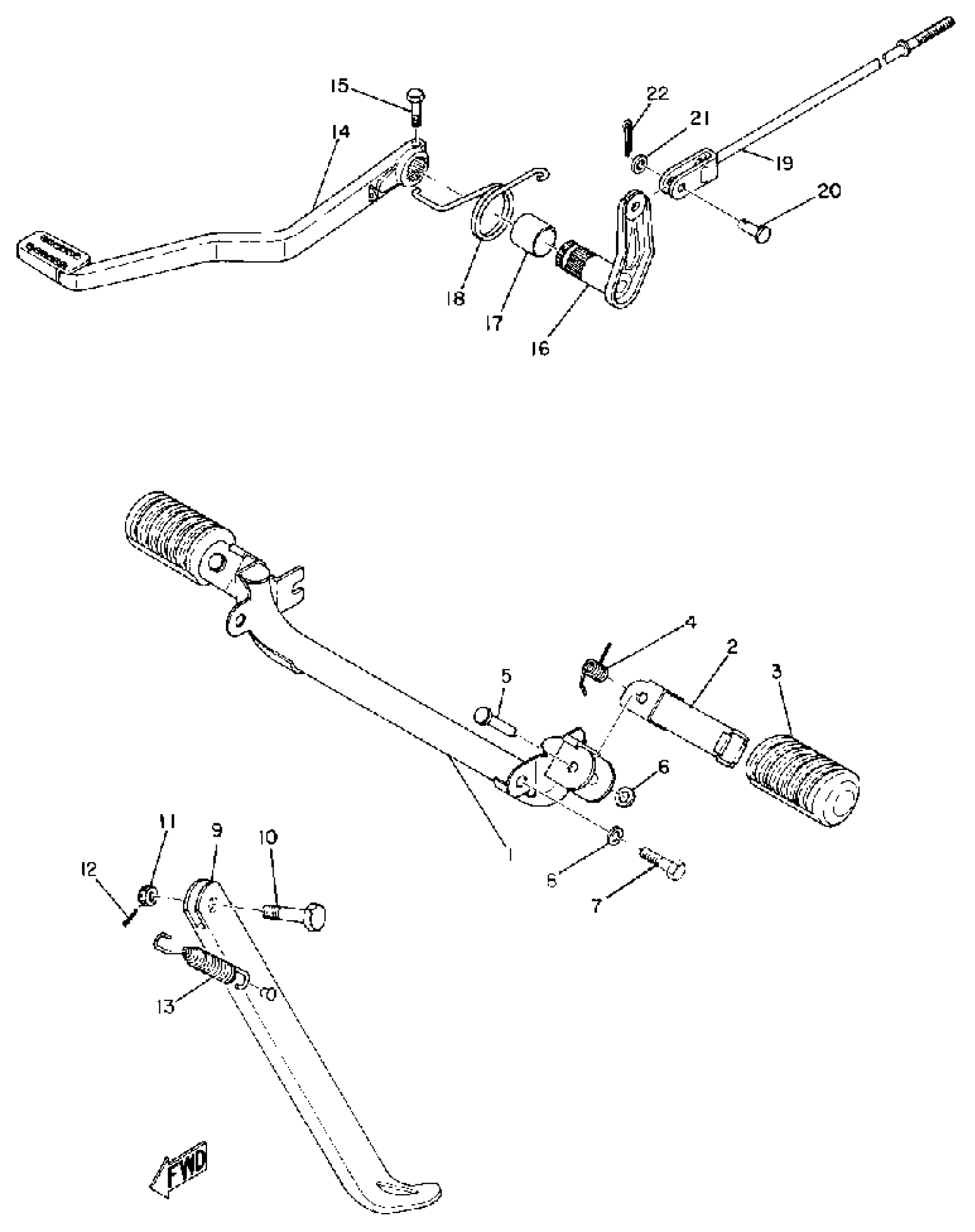

Yamaha RT1M (RT1) 1970 STAND,FOOT REST & REAR BRAKE PEDAL Diagram

#

Description
Price

1

FOOTREST 1

214-27411-00-00

Unavailable

2

FOOT REST

214-27421-00-00

$37.99

3

COVER, FOOT REST

214-27413-00-00

$23.99

4

SPRING, TORSION (214-27426-00)

90508-20023-00

$8.49

5

PIN (214-27418-00)

90243-08006-00

$12.49

6

WASHER, PLATE (214-27417-00)

90201-06042-00

$9.49

7

BOLT, HEXAGON

97013-08020-00

$1.16

8

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

9

STAND, SIDE

214-27311-01-00

Unavailable

10

BOLT, HEXAGON (278-2731700)

90102-10006-00

$10.49

11

NUT, CASTLE

95307-10900-00

Unavailable

12

PIN, COTTER

91490-20025-00

$1.99

13

SPRING, TENSION (1L9)

90506-26270-00

$15.99

14

PEDAL, BRAKE

(214-27211-00-33)

Unavailable

15

BOLT, HEXAGON

97017-06025-00

$4.24

16

SHAFT, BRAKE PEDAL

214-27212-00-00

Unavailable

17

COLLAR

(90387-20177-00)

Unavailable

18

SPRING, TORSION (214-27216-00)

90508-40077-00

Unavailable

19

ROD, BRAKE

275-27231-00-00

Unavailable

20

PIN, WITH HOLE (248-27228-00)

90240-06006-00

Unavailable

21

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

22

PIN, COTTER

91490-25020-00

Unavailable
