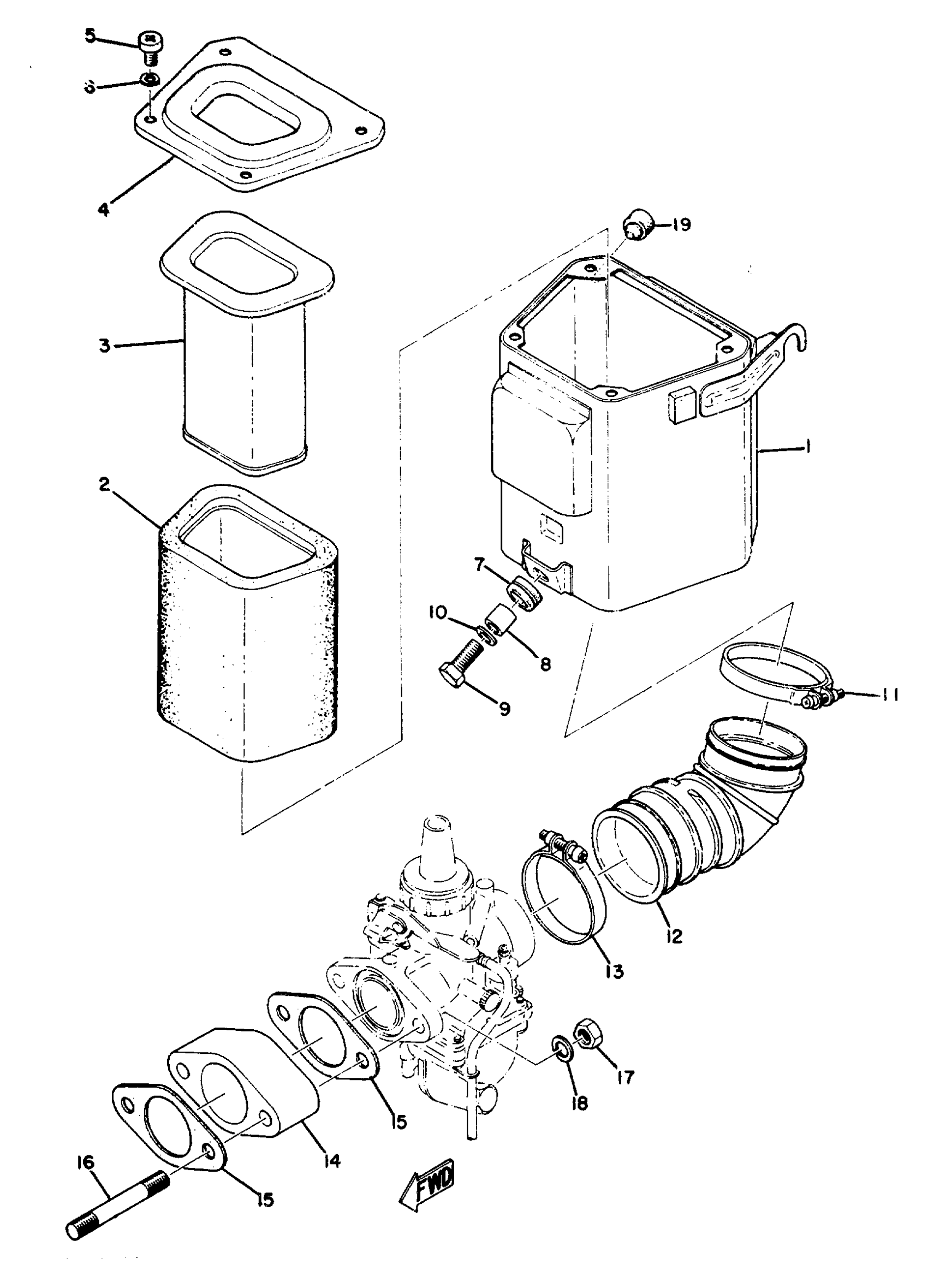

Yamaha RT1M (RT1) 1970 INTAKE Diagram
#
Description
Price
1
CASE, AIR CLEANER 1
(275-14411-00-00)
Unavailable
1
CASE, AIR CLEANER 1
(285-14411-00-00)
Unavailable
2
FILTRON K205
(214-14451-99-00)
Unavailable
2
ELEMENT, AIR CLNR
285-14451-00-00
Unavailable
3
GUIDE, ELEMENT
214-14458-00-00
Unavailable
3
GUIDE, ELEMENT
(285-14458-00-00)
Unavailable
4
CAP, CLEANER CASE 1
(275-14412-00-00)
Unavailable
4
CAP, CLEANER CASE 1
(285-14412-00-00)
Unavailable
5
SCREW, PAN HEAD(6A3)
97885-06008-00
Unavailable
6
WASHER, SPRING
92995-06100-00
Unavailable
11
HOSE CLAMP ASSY
90450-54008-00
Unavailable
11
HOSE CLAMP ASSY
90450-64004-00
Unavailable
12
JOINT, AIR CLNR 1
(275-14453-00-00)
Unavailable
12
JOINT, AIR CLNR 1
(284-14453-00-00)
Unavailable
13
HOSE CLAMP ASSY
90450-54008-00
Unavailable
14
MANIFOLD, INTAKE
(275-13555-00-00)
Unavailable
15
GASKET, MAN
275-13556-09-00
Unavailable
16
BOLT, STUD
(90116-08059-00)
Unavailable
17
NUT(6L2)
95333-08600-00
Unavailable
18
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
19
DAMPER, LOCATING 1
(137-21778-00-00)
Unavailable
19
DAMPER 1
(214-14425-00-00)
Unavailable
