1995 Yamaha RT180 (RT180G) Stand - Footrest Diagram

← All diagrams

Find the part on the Stand - Footrest diagram for your 1995 Yamaha RT180 (RT180G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

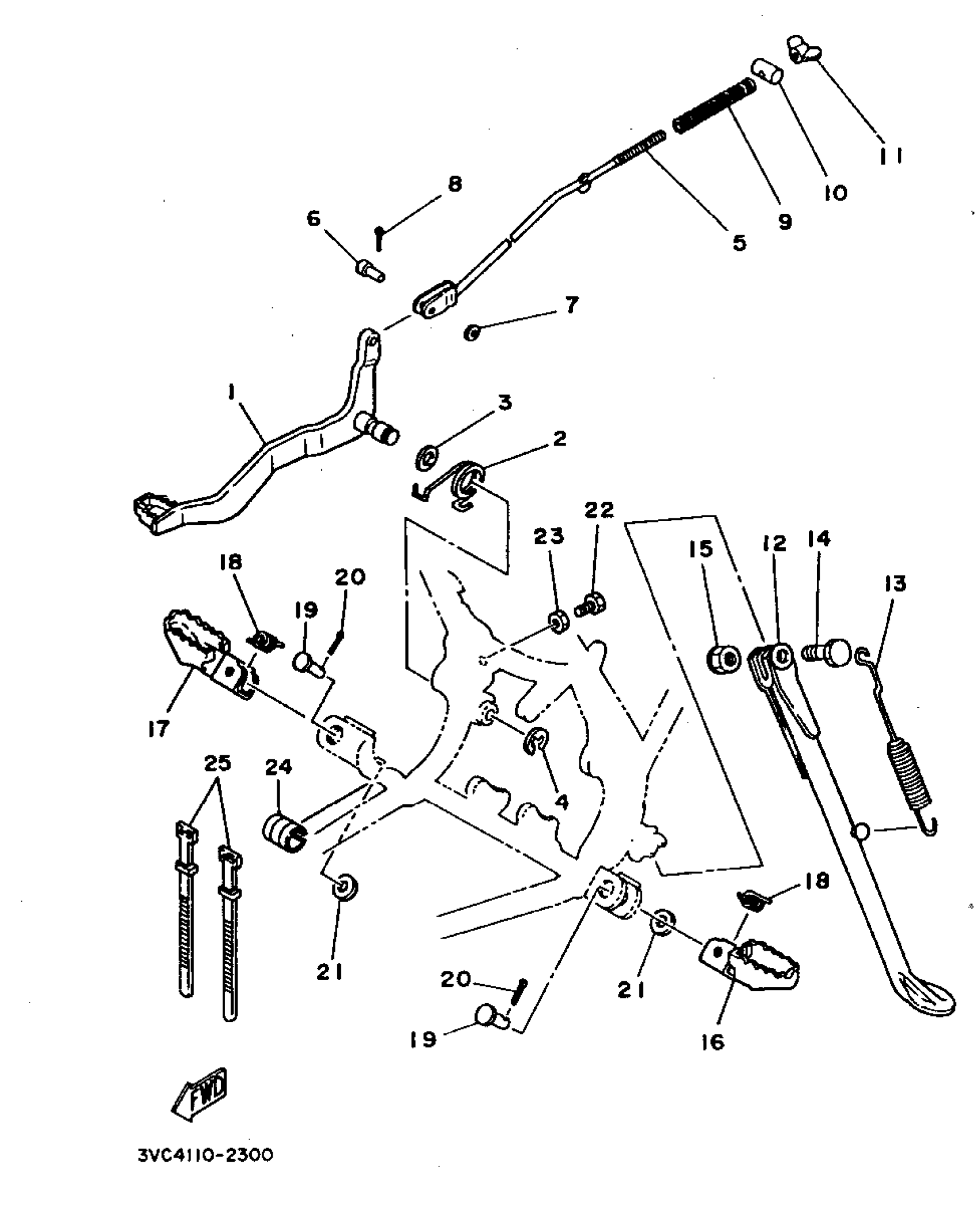

1995 Yamaha RT180 (RT180G) Stand - Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

5L9-F7211-01-00

1
Out of stock

2

SPRING, TENSION (2A6)

90508-32354-00

1
Out of stock

3

WASHER PLATE 611441260000

90201-14212-00

1
Out of stock

4

CIRCLIP

99006-10600-00

1

$6.91

In stock

5

ROD, BRAKE

1W2-27231-00-00

1
Out of stock

6

PIN, WITH HOLE (248-27228-00)

90240-06006-00

—
Out of stock

7

WASHER(6TA)

92907-06200-00

1

$6.18

In stock

8

PIN, COTTER

91490-25020-00

1

$2.94

In stock

9

SPRING, COMPRESSION

90501-10W00-00

1
Out of stock

10

PIN 1562723700

90249-12008-00

1

$4.70

In stock

11

NUT (25K)

90179-06411-00

1

$5.10

In stock

12

STAND, SIDE

2TW-F7311-00-00

1
Out of stock

13

SPRING (434)

90507-29008-00

1
Out of stock

14

BOLT SPECIAL SHAPE M10

90109-10W14-00

1
Out of stock

15

NUT, SELF-LOCKING

90185-10802-00

1
Out of stock

16

FOOTREST 1

4AN-F7411-00-00

1
Out of stock

17

FOOTREST 2

4AN-F7421-00-00

1
Out of stock

18

—

$3.26

In stock

19

PIN, CLEVIS

91701-08039-00

1
Out of stock

20

PIN, COTTER

91490-25020-00

1

$2.94

In stock

21

WASHER PLATE 141181390000

90201-08085-00

—

$6.38

In stock

22

BOLT(3DM)

97024-06020-00

—

$6.17

In stock

23

NUT, U FLANGE

95604-06200-00

—

$2.35

In stock

24

DAMPER

2TW-F742A-00-00

1
Out of stock

25

BAND, SWITCH CORD

5L9-H3936-00-00

1
Out of stock
