1995 Yamaha RT180 (RT180G) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1995 Yamaha RT180 (RT180G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

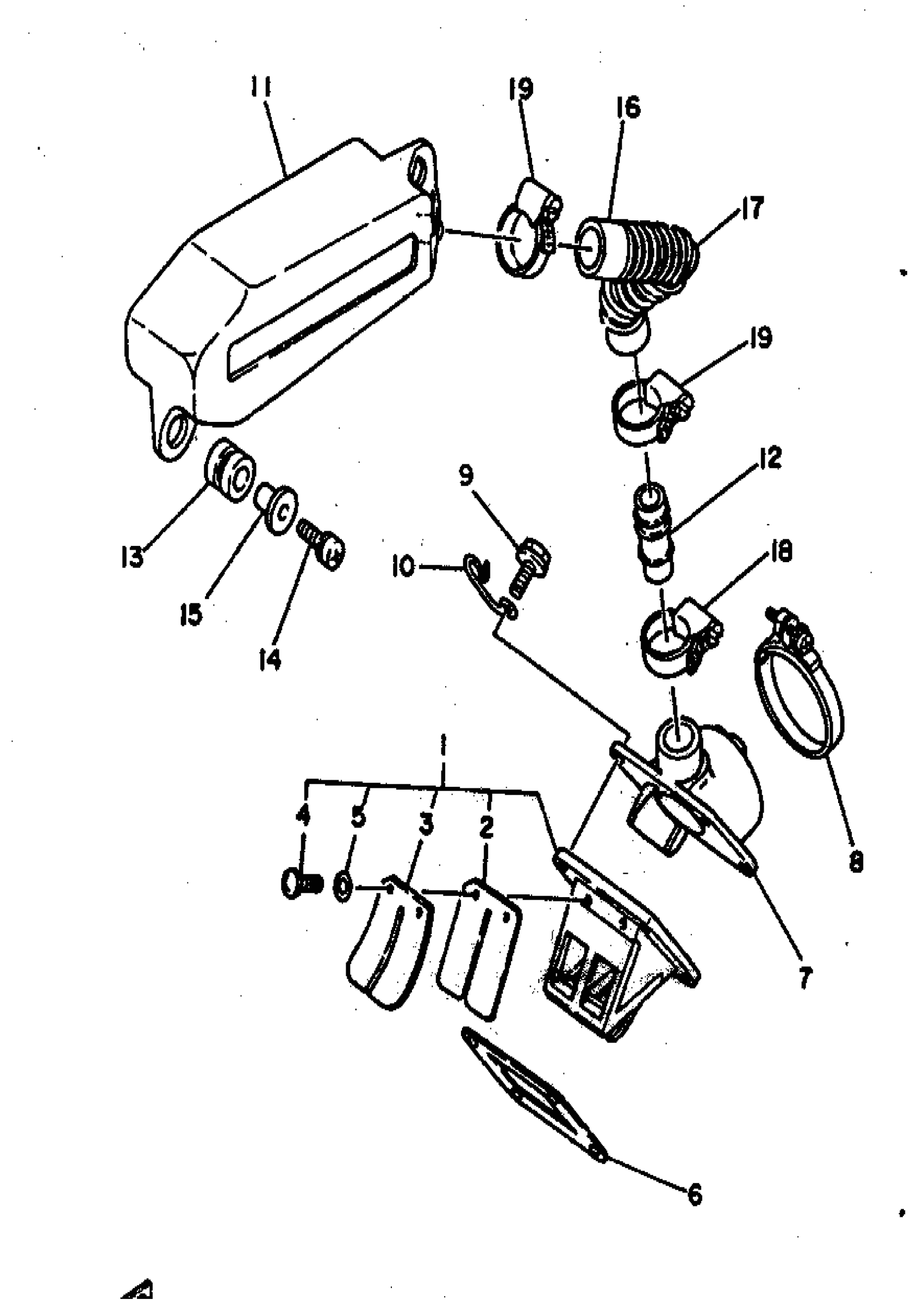

1995 Yamaha RT180 (RT180G) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSY

345-13610-20-00

1

$218.63

In stock

2

REED, VALVE

345-13613-70-00

1

$62.56

In stock

3

. STOPPER, REED VALVE

345-13616-70-00

1
Out of stock

4

SCREW, PAN HEAD(3AC)

98517-03008-00

1

$2.74

In stock

5

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

6

GASKET,VALVE SEAT

3VC-13622-01-00

1
Out of stock

7

JOINT, CARBURETOR

5L9-E3565-00-00

1
Out of stock

8

CLAMP, HOSE (5H0)

90460-43179-00

1

$16.69

In stock

9

BOLT, WITH WASHER

97502-06225-00

1
Out of stock

10

CLAMP SPECIAL SHAPE

90465-20800-09

—
Out of stock

11

CHAMBER, AIR

5L9-E3581-00-00

1
Out of stock

12

PIPE

5L9-E4465-01-00

1
Out of stock

13

GROMMET 839774310000

90480-14023-00

1

$4.74

In stock

14

SCREW, PAN HEAD WITH WASHER

97602-06125-09

1
Out of stock

15

COLLAR

90387-06158-00

1

$6.17

In stock

16

PIPE, INTAKE MANIFOLD

5L9-E3584-00-00

1
Out of stock

17

SPRING, COMPRESSION

90501-20802-09

1
Out of stock

18

CLAMP,HOSE

90460-16W00-00

1
Out of stock

19

CLAMP,HOSE

90460-16W00-00

1
Out of stock
