1995 Yamaha RT180 (RT180G) Crankshaft - Piston Diagram

← All diagrams

Find the part on the Crankshaft - Piston diagram for your 1995 Yamaha RT180 (RT180G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

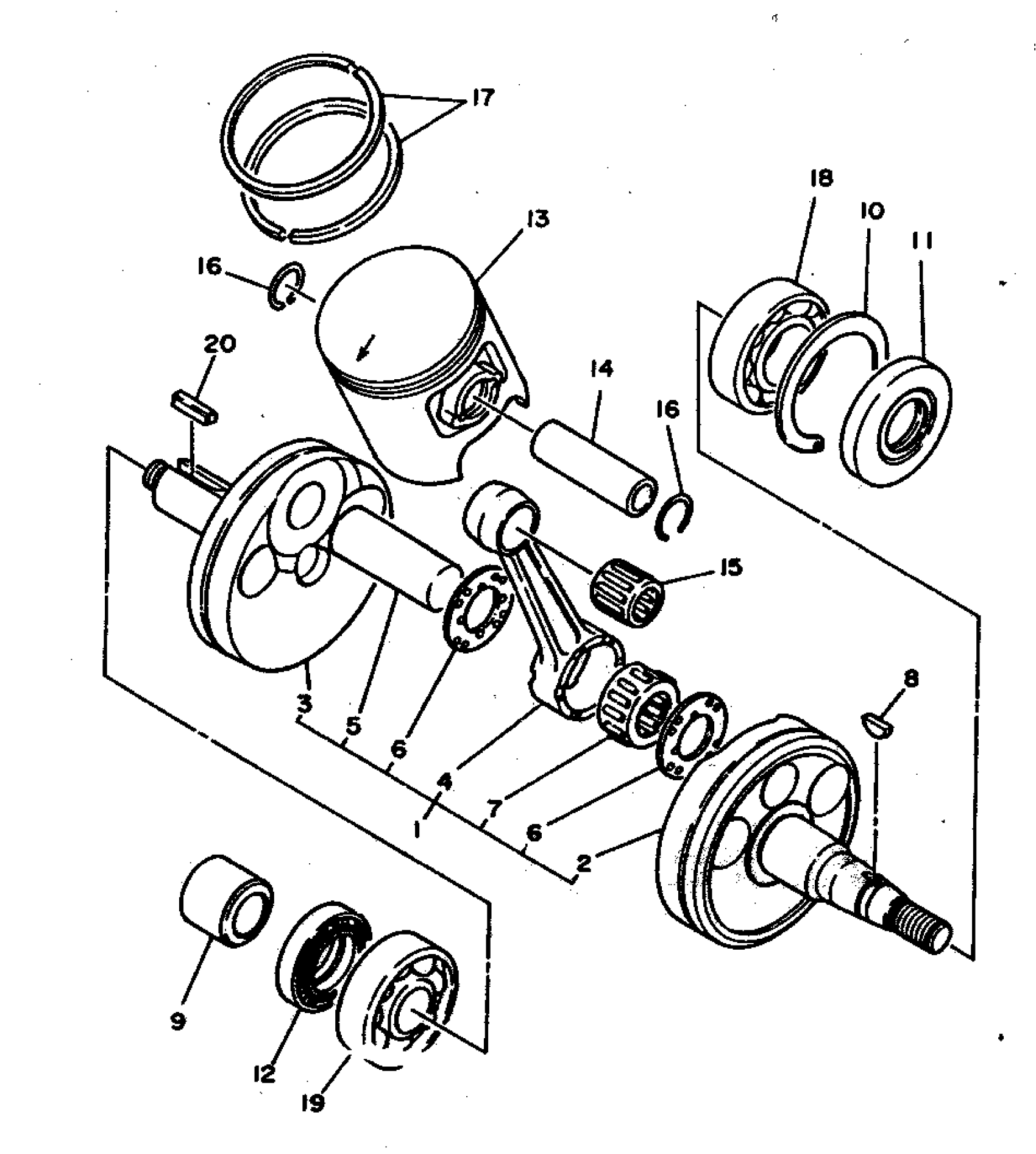

1995 Yamaha RT180 (RT180G) Crankshaft - Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

5L9-E1400-00-00

1
Out of stock

2

. CRANK 1

5L9-E1412-00-00

1
Out of stock

3

. CRANK 2

5L9-E1422-00-00

1
Out of stock

4

. ROD, CONNECTING 1

25V-11651-00-00

1
Out of stock

5

PIN,CRANK 1

3AK-11681-00-00

1
Out of stock

6

WASHER (29L)

90209-22248-00

—
Out of stock

7

—

$48.62

In stock

8

KEY WOODRUFF 146115450000

90280-03017-00

1

$5.78

In stock

9

COLLAR 20 X 28

90387-20823-00

1
Out of stock

10

. CIRCLIP

93450-52010-00

1
Out of stock

11

OIL SEAL

93102-25018-00

1
Out of stock

12

OIL SEAL (28X40X8-132)

93103-28011-00

1

$12.05

In stock

13

PISTON (STD)

58W-E1631-U0-0B

1
Out of stock

13

PISTON (0.25MM O/S)

58W-E1635-00-00

1
Out of stock

13

PISTON (0.50MM O/S)

58W-E1636-00-00

1
Out of stock

13

PISTON (0.75MM O/S)

58W-E1637-00-00

1
Out of stock

14

PIN, PISTON

4L0-11633-00-00

—
Out of stock

15

—

$23.03

In stock

16

CIRCLIP (1L9)

93450-17044-00

—

$5.10

In stock

17

RING, PISTON

3V9-E1611-00-00

1
Out of stock

17

RING, PISTON

3V9-E1611-10-00

1
Out of stock

17

RING, PISTON

3V9-E1611-20-00

1
Out of stock

17

RING, PISTON

3V9-E1611-30-00

1
Out of stock

18

—

$35.25

In stock

19

BEARING (6304YA1-9TC4)

93306-30442-00

—

$62.26

In stock

20

KEY, STRAIGHT 3531154600

90282-05005-00

—
Out of stock
