1993 Yamaha RT180 (RT180E) Rear Wheel Diagram

← All diagrams

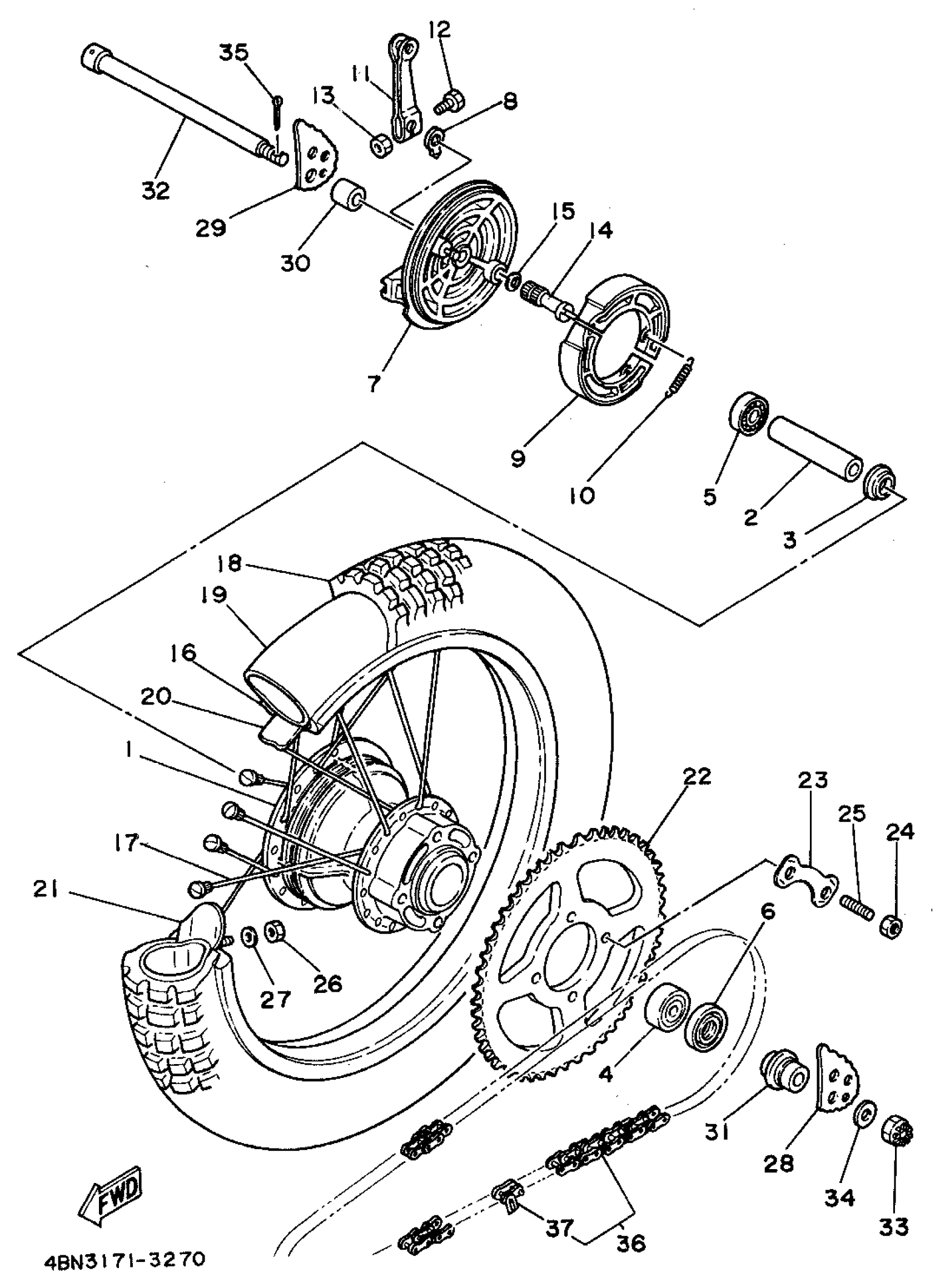

Find the part on the Rear Wheel diagram for your 1993 Yamaha RT180 (RT180E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Yamaha RT180 (RT180E) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

10V-25311-00-98

—
Out of stock

2

SPACER

90560-15313-00

1

$39.77

In stock

3

FLANGE, SPACER

146-25115-00-00

1

$6.17

In stock

4

BEARING

93306-30212-00

1

$33.35

In stock

5

BEARING

93306-20205-00

1

$32.63

In stock

6

SEAL,OIL

93106-26005-00

1

$6.67

In stock

7

PLATE, BRAKE SHOE

10V-25321-00-98

—
Out of stock

8

PLATE

3Y6-2533A-01-00

1

$5.30

In stock

9

BRAKE SHOE KIT

3KG-W253E-00-00

—
Out of stock

10

SPRING, TENSION

90506-15260-00

1

$5.75

In stock

11

LEVER, CAM SHAFT

1E2-25155-00-00

—
Out of stock

12

BOLT, HEXAGON (538)

90101-06278-00

1

$1.82

In stock

13

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

14

CAMSHAFT

2RH-25351-00-00

1

$29.14

In stock

15

SEAL, CAM SHAFT

148-25359-00-00

1
Out of stock

16

RIM 2.15-18

94421-18854-00

1
Out of stock

17

SPOKE SET, REAR

10V-25304-01-00

—
Out of stock

18

TIRE (100/100-18 59P MT21 TT)

94110-188F3-00

1
Out of stock

19

TUBE (3R9)

94241-18153-00

—

$93.82

In stock

20

BAND, RIM (2J4)

94340-18086-00

—

$16.00

In stock

21

SPACER, BEAD

58W-F5394-00-00

1
Out of stock

22

SPROCKET, DRIVEN (51T)

53V-25451-50-00

1
Out of stock

23

WASHER

10V-25412-00-00

—

$8.51

In stock

24

NUT, FLANGE(3BM)

95704-10500-00

—

$1.71

In stock

25

BOLT, STUD (10V)

90116-10390-00

—
Out of stock

26

NUT(6L2)

95333-08600-00

—

$3.20

In stock

27

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

28

PULLER, CHAIN (L.H)

1W2-25388-01-00

—
Out of stock

29

PULLER, CHAIN (R.H)

1W2-25389-01-00

—
Out of stock

30

COLLAR

90387-15115-00

1
Out of stock

31

COLLAR, WHEEL

23K-F5383-00-00

1
Out of stock

32

AXLE, WHEEL

5L9-F5381-01-00

1
Out of stock

33

NUT, CASTLE(2UJ)

90171-14056-00

—

$10.57

In stock

34

WASHER (525)

90201-15238-00

—
Out of stock

35

PIN, COTTER

91490-30030-00

—

$7.15

In stock

36

CHAIN(53V)

94580-24126-00

—

$47.55

In stock

37

CHAIN(53V)

94580-24126-00

—

$47.55

In stock
