1993 Yamaha RT180 (RT180E) Fuel Tank Diagram

← All diagrams

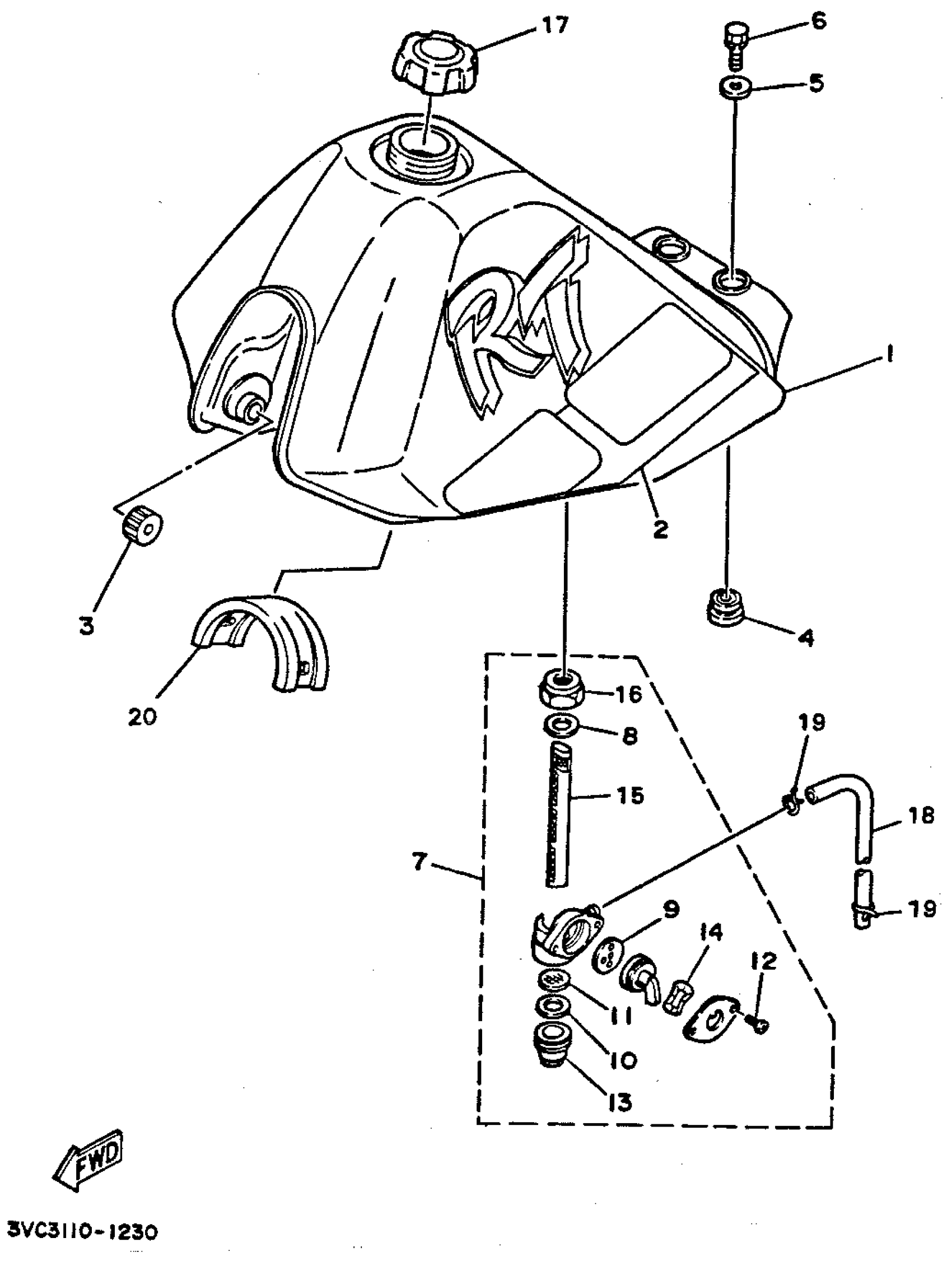

Find the part on the Fuel Tank diagram for your 1993 Yamaha RT180 (RT180E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Yamaha RT180 (RT180E) Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK COMP.

3VC-F4110-40-00

1
Out of stock

2

GRAPHIC SET

3VC-F4240-40-00

1
Out of stock

3

DAMPER, LOCATING 1

3TB-24181-00-00

1

$12.29

In stock

4

GROMMET

90480-22231-00

1
Out of stock

5

WASHER, PLATE

90201-06086-00

1
Out of stock

6

BOLT, HEXAGON

97017-06012-00

1

$2.62

In stock

7

FUEL COCK ASSY 1

2TW-F4500-02-00

1
Out of stock

8

GASKET, FUEL COCK

3VC-F4532-00-00

1
Out of stock

9

VALVE/GASKET

2MW-F4523-00-00

1
Out of stock

10

. GASKET

23L-F4522-00-00

1
Out of stock

11

. NET, FILTER 2

502-F4515-10-00

1

$2.17

In stock

12

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

13

. CUP, FILTER

502-F4521-00-00

1
Out of stock

14

. WASHER, WAVE

23L-F4518-00-00

1
Out of stock

15

STRAINER

23L-F4536-00-00

1
Out of stock

16

. NUT

3VC-F4531-00-00

1
Out of stock

17

CAP ASSEMBLY

5Y1-24610-01-00

1
Out of stock

18

HOSE (L420)

90445-092K1-00

—

$10.63

In stock

19

CLIP

90467-09W02-00

1
Out of stock

20

DAMPER,LOCATING 2

5L9-F4182-00-00

1
Out of stock
