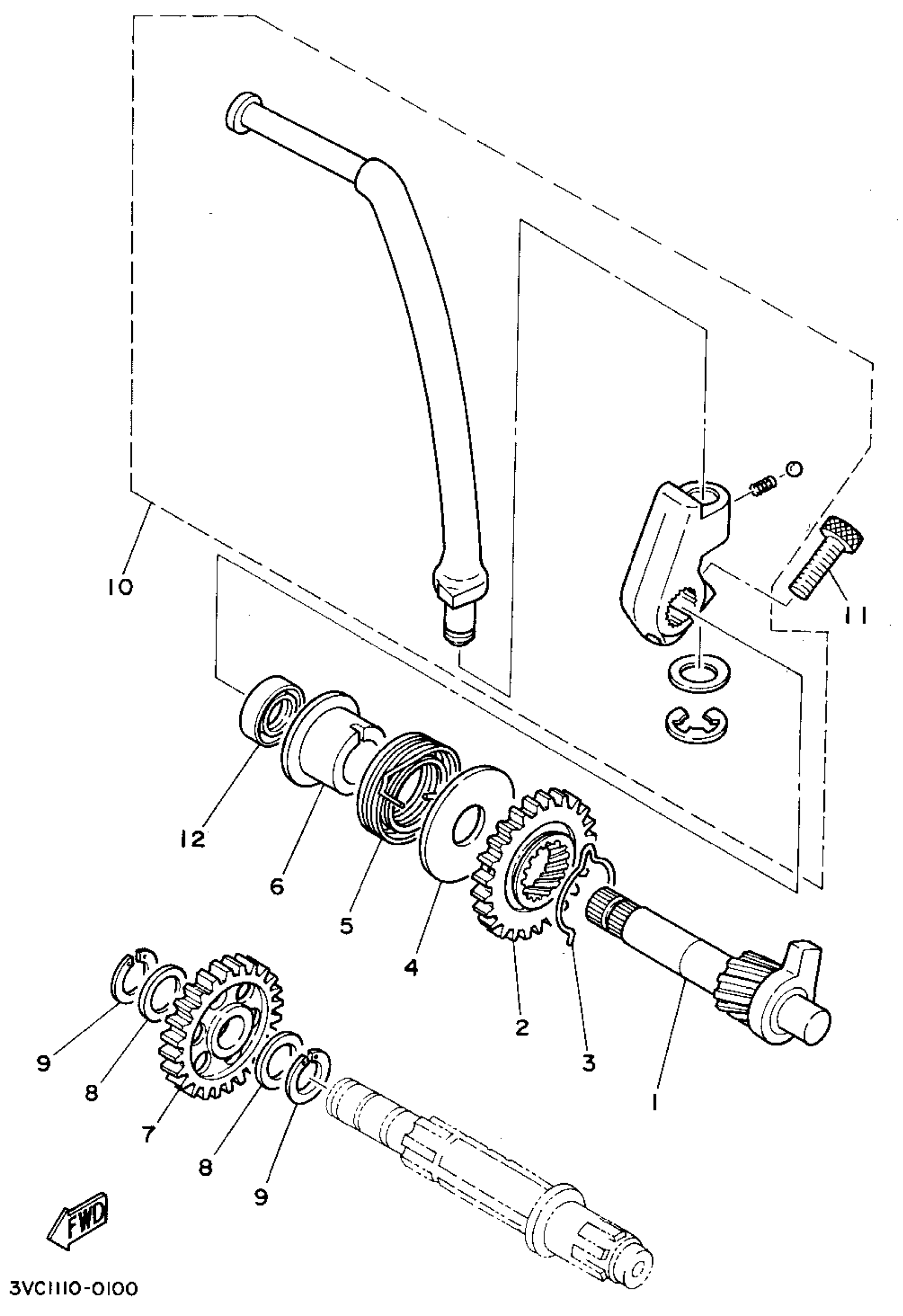

Yamaha RT180B (RT180) 1991 STARTER Diagram

#

Description
Price

1

KICK AXLE ASSY

4F2-15660-01-00

Unavailable

2

GEAR, KICK

1W1-15641-00-00

Unavailable

3

CLIP 315156870000

90468-26048-00

$4.89

4

COVER, SPRING

401-15676-00-00

$5.99

5

SPRING, TORSION (4F2)

90508-26450-00

$9.22

6

SPACER, KICK AXLE SPRING

1W1-15666-00-00

$14.94

7

GEAR, KICK IDLE

525-15651-00-00

$39.47

8

SHIM 1

3V9-E7417-00-00

Unavailable

9

CIRCLIP

93440-15012-00

$5.75

10

KICK START ASSY

ACN-CK2TW-10-00

Unavailable

11

BOLT, SOCKET

91317-08025-00

$5.81

12

OIL SEAL (17X25X4-401)

93101-17062-00

$11.73
