1991 Yamaha RT180 (RT180B) AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1991 Yamaha RT180 (RT180B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

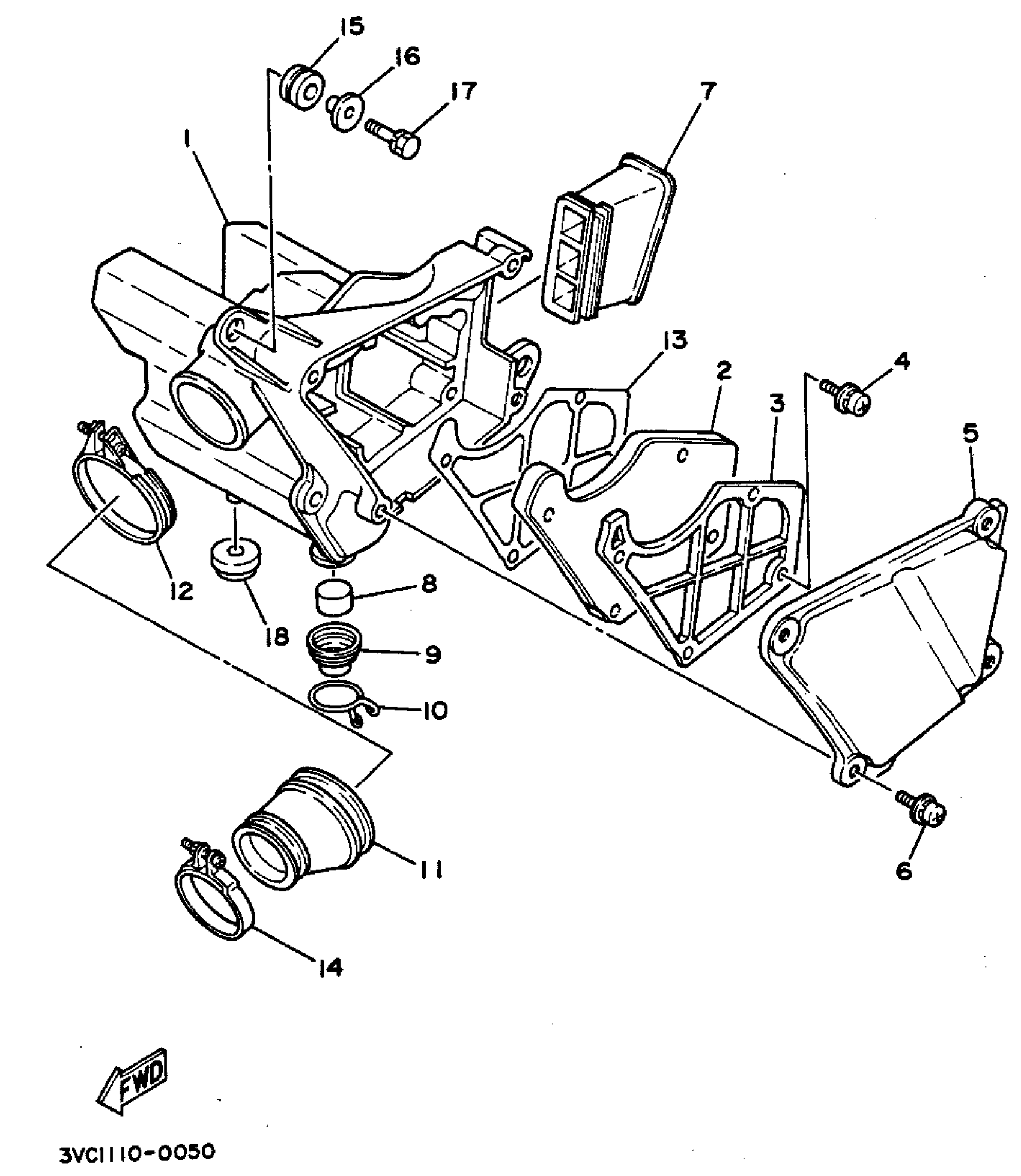

1991 Yamaha RT180 (RT180B) AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AIR CLEANER CASE ASSEMBLY

58W-E4401-00-00

1
Out of stock

2

ELEMENT, AIR CLEANER (3VC-14451-00-00)

3VC-14451-10-00

1
Out of stock

3

PLATE, ELEMENT FITTING

58W-E4468-00-00

1
Out of stock

4

SCREW, PAN HEAD

97602-05320-00

1
Out of stock

5

CAP,CLEANER CASE 1

5L9-E4412-00-00

1
Out of stock

6

SCREW, PAN HEAD

97602-05320-00

1
Out of stock

7

DUCT

5L9-E4437-00-00

1
Out of stock

8

SEAL

5L9-E4462-00-00

1
Out of stock

9

COVER 1 (5L9-E4417-00-00)

5L9-E4417-01-00

1
Out of stock

10

CLIP, SCISSOR

90467-28801-00

1
Out of stock

11

JOINT, AIR CLEANER 1

5L9-E4453-00-00

1
Out of stock

12

CLAMP, HOSE

90460-61133-00

1
Out of stock

13

GUIDE

3VC-14458-00-00

1
Out of stock

14

CLAMP, HOSE (5H0)

90460-43179-00

1

$16.69

In stock

15

GROMMET 839774310000

90480-14023-00

1

$4.74

In stock

16

COLLAR 437216330000

90387-07391-00

—

$7.74

In stock

17

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

18

GROMMET (509)

90480-18171-00

—

$6.55

In stock
